ENGINE

481X TFX/426/KB

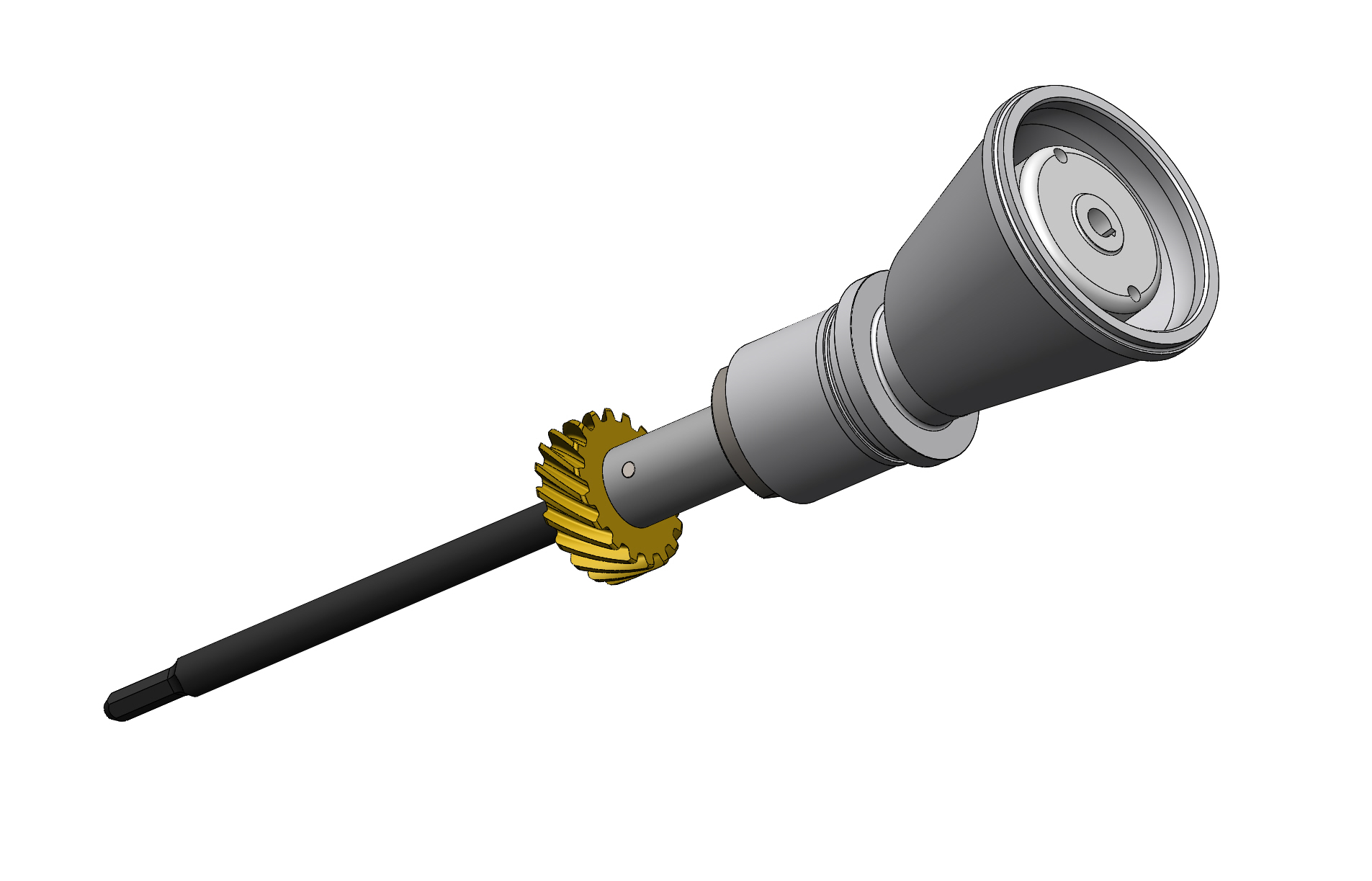

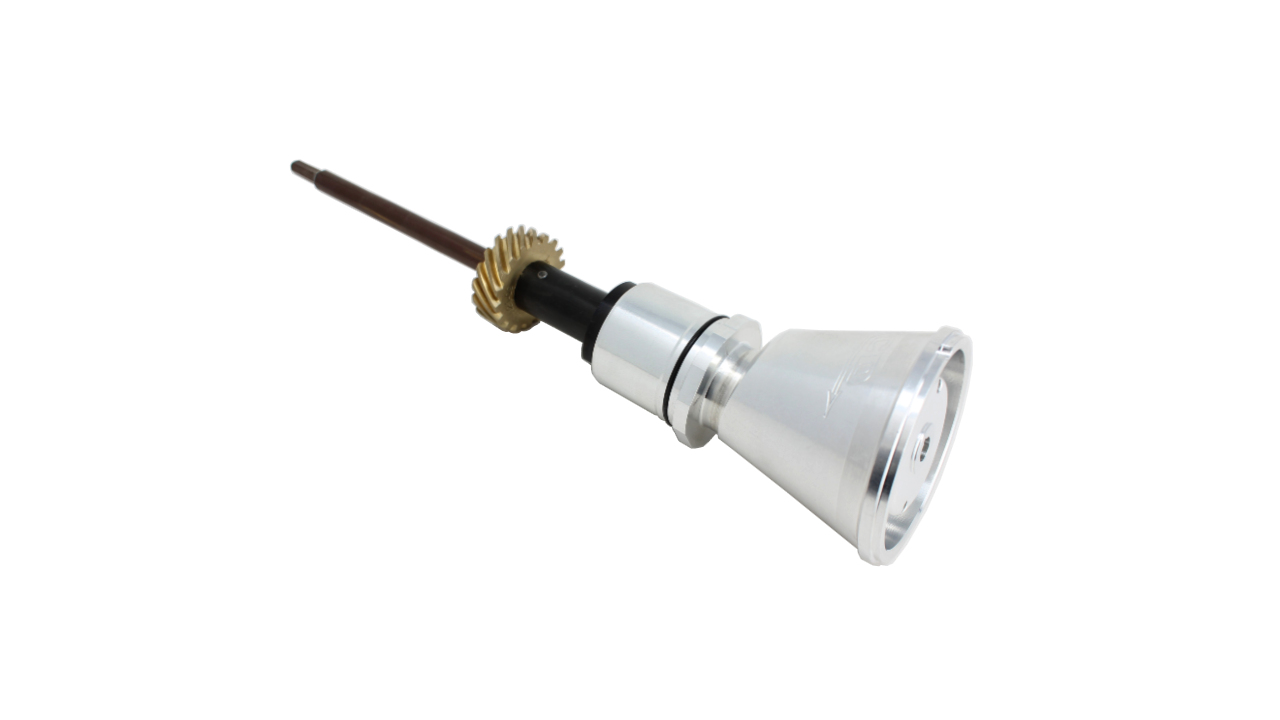

ENGINE 481X 1222.19 303000-0020 This angled magneto drive fits a 481 X engine block.

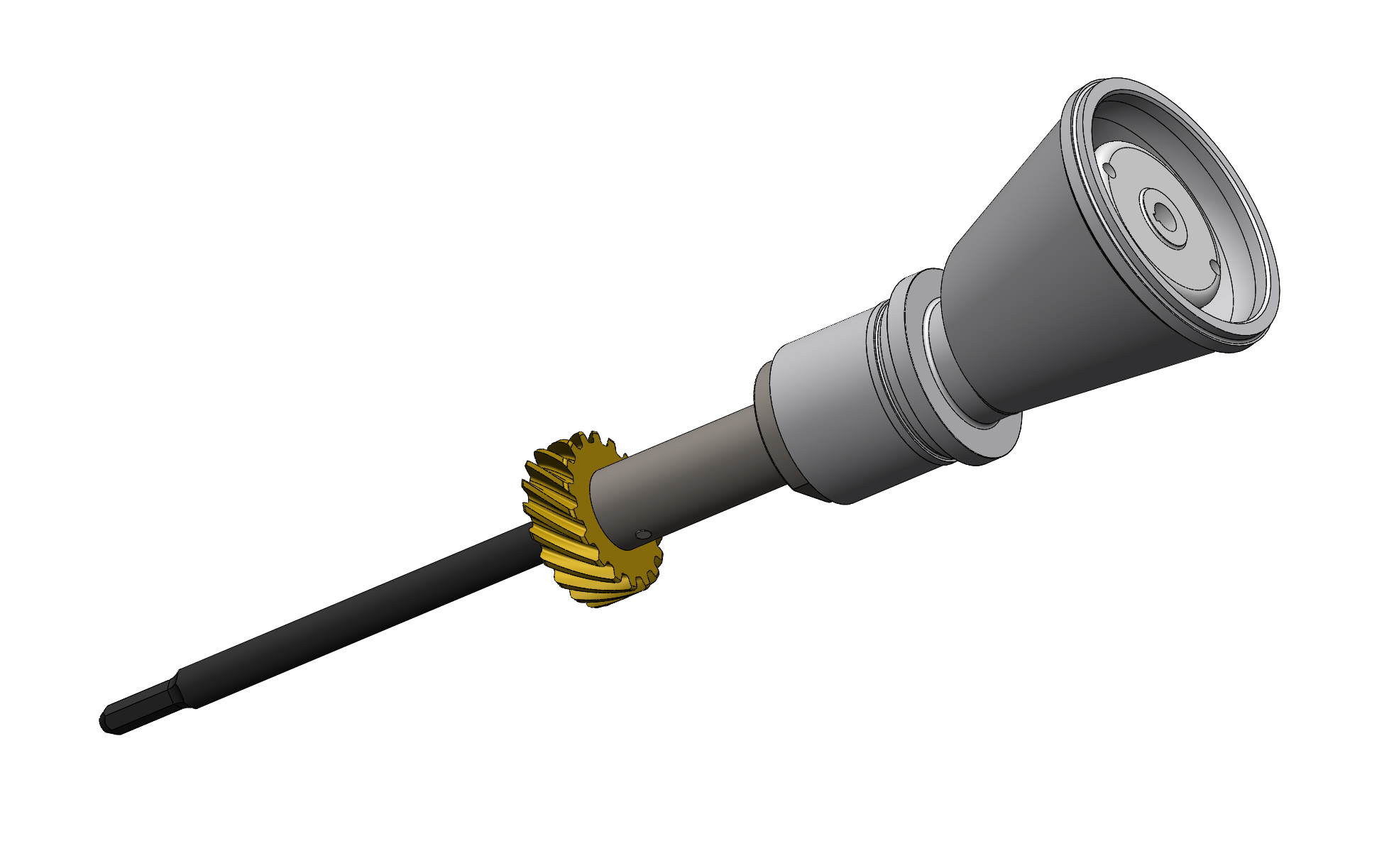

ENGINE TFX/426/KB 1222.19 303000-0015 This angled magneto drive fits a TFX/426/KB/BAE engine block.

ANGLED MAGNETO DRIVES

A unique RCD innovation made to work with TFX, BAE, 481 X, 426, and KB (available for 392/417 Donovan on special order)engine blocks, this drive angles the magneto 10 degrees to clear the cylinder heads, blower and manifold. The one piece billet aluminum housing has face and cylindrical 'O" rings to seal the base to the engine block. A heat treated and ground 300M shaft connects the aluminum-bronze drive gear to a universal joint. Roller and thrust bearings control the up and down location of the drive gear. This drive has a weight of less than 3 lbs.
0
303000-0015 ANGLED MAGNETO DRIVE 426 BOM.PDF   Download
303000-0020 ANGLED MAGNETO DRIVE 481X BOM.PDF   Download

Specifications
