SKU:

DIAMETER

6.375" 7.0"


MARKINGS

ALCOHOL NITRO

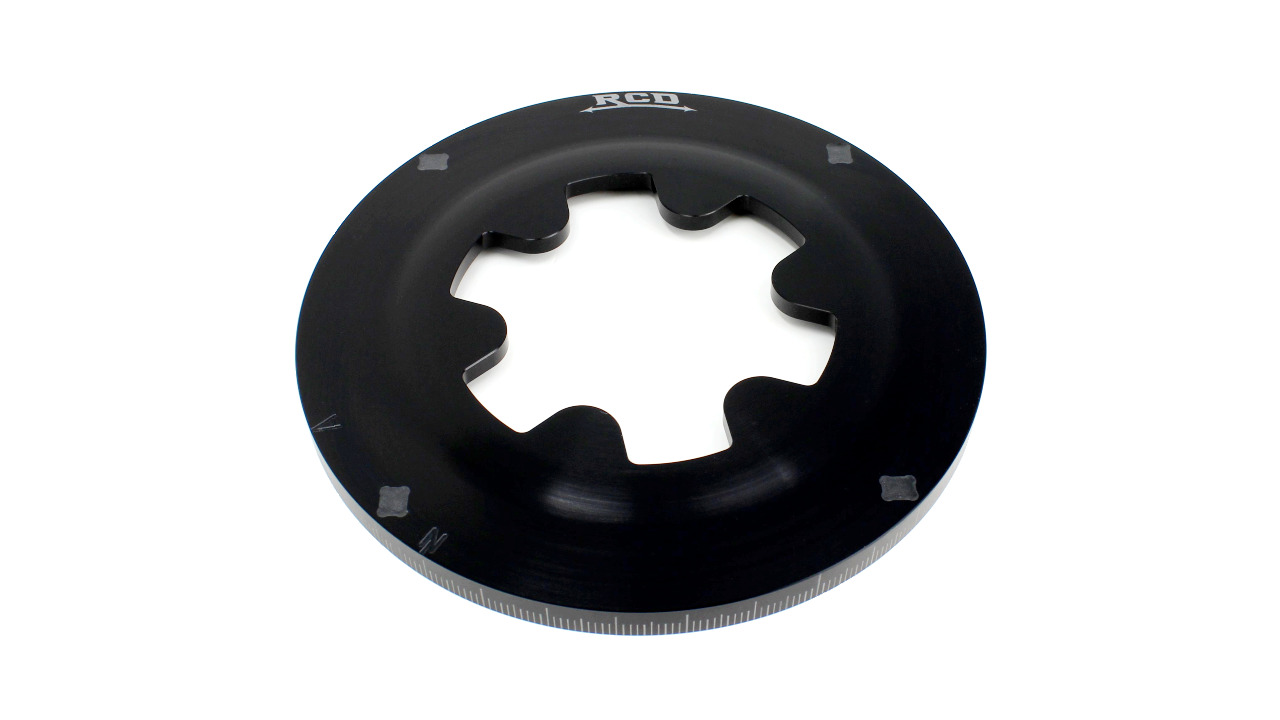

DIAMETER 6.375" MAGNETS 4 MAGNETS MARKINGS ALCOHOL 139.44 201020-0007 This degree ring has a diameter of 6.375", it has 4 magnets 90 degrees apart and is marked for an alcohol burning engine.

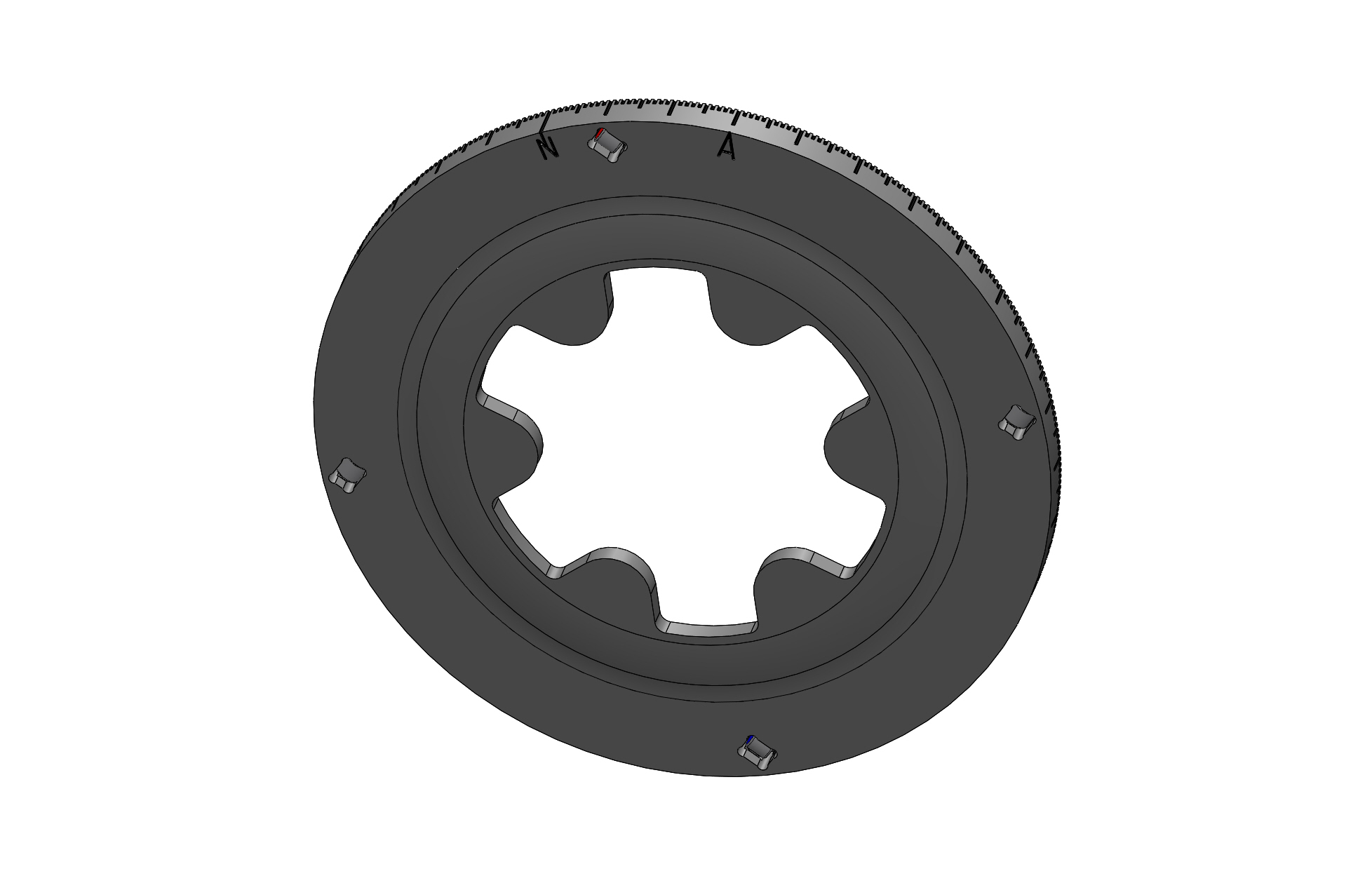

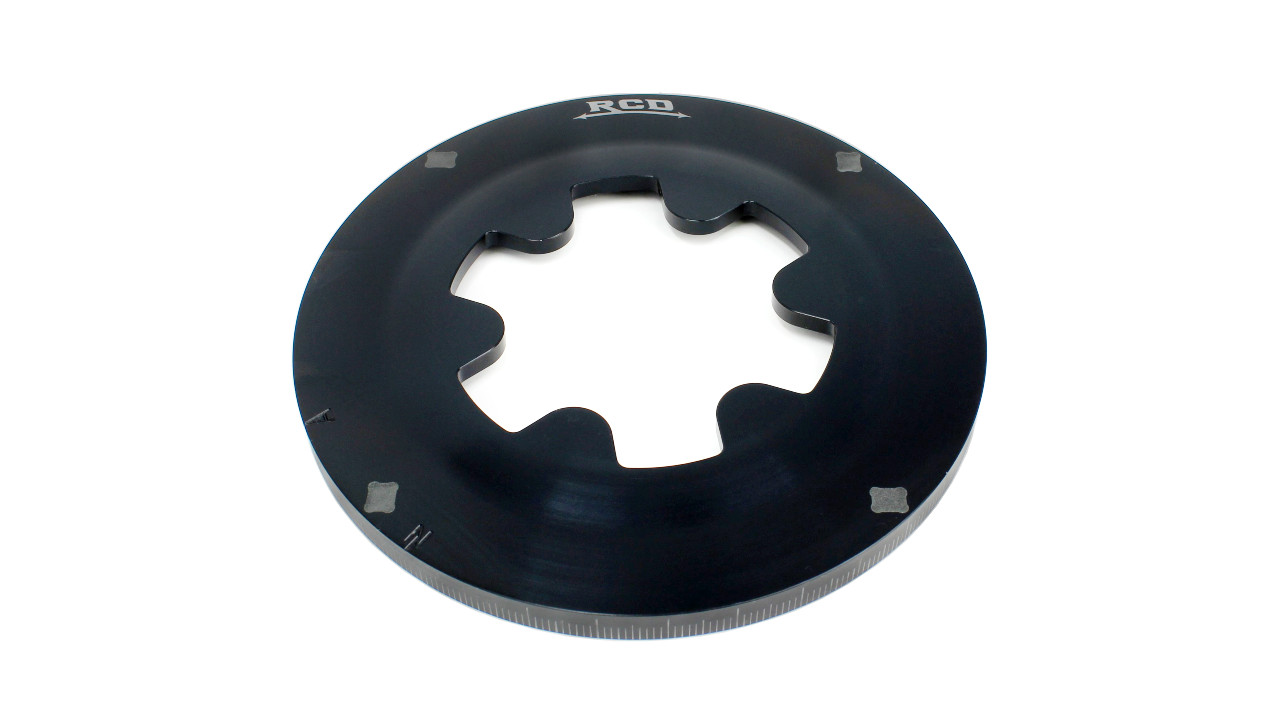

DIAMETER 6.375" MAGNETS 4 MAGNETS MARKINGS NITRO 139.44 201020-0008 This degree ring has a diameter of 6.375", it has 4 magnets 90 degrees apart and is marked for a nitromethane burning engine with 30 degrees of lead verses an alcohol engine.

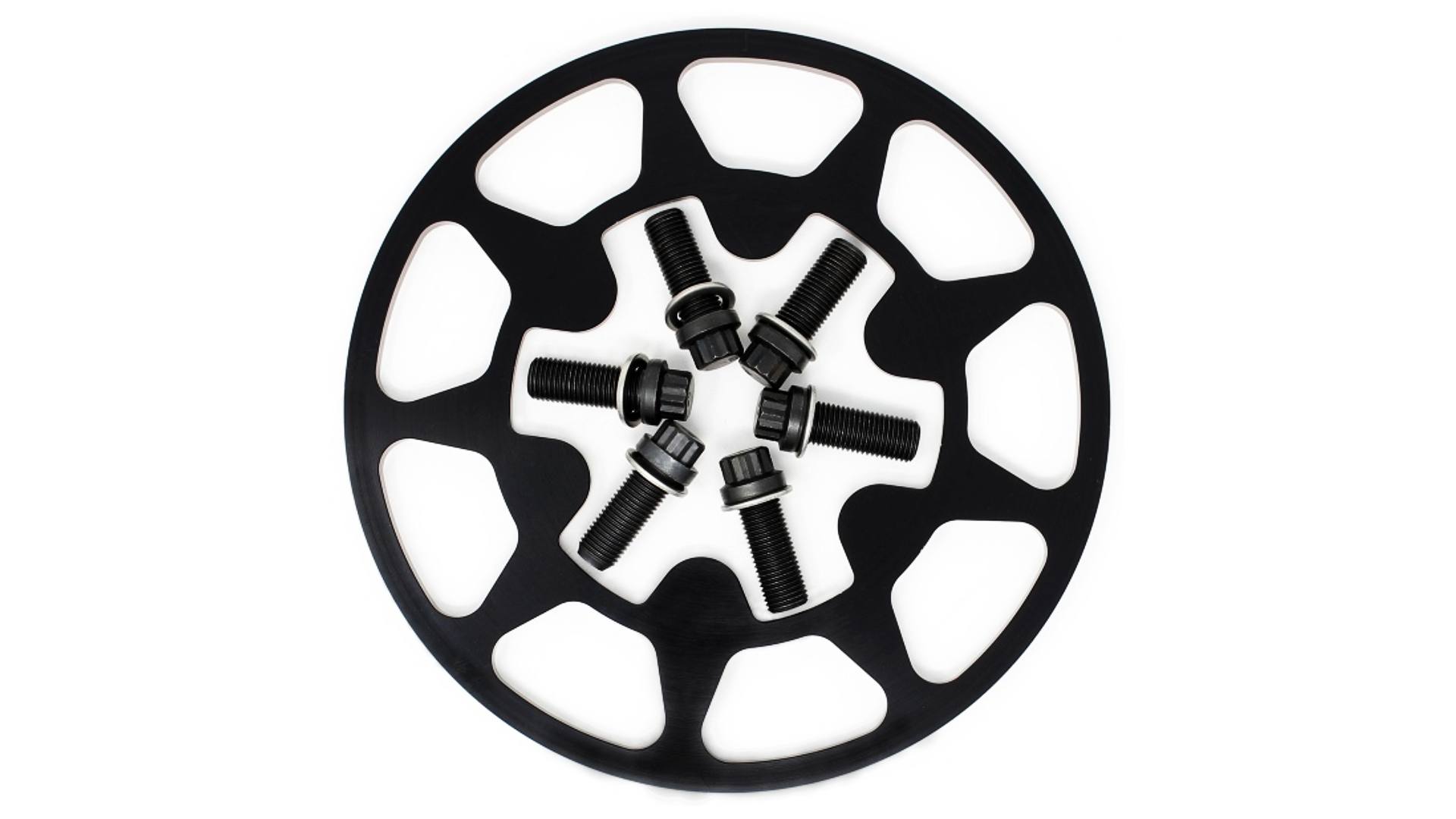

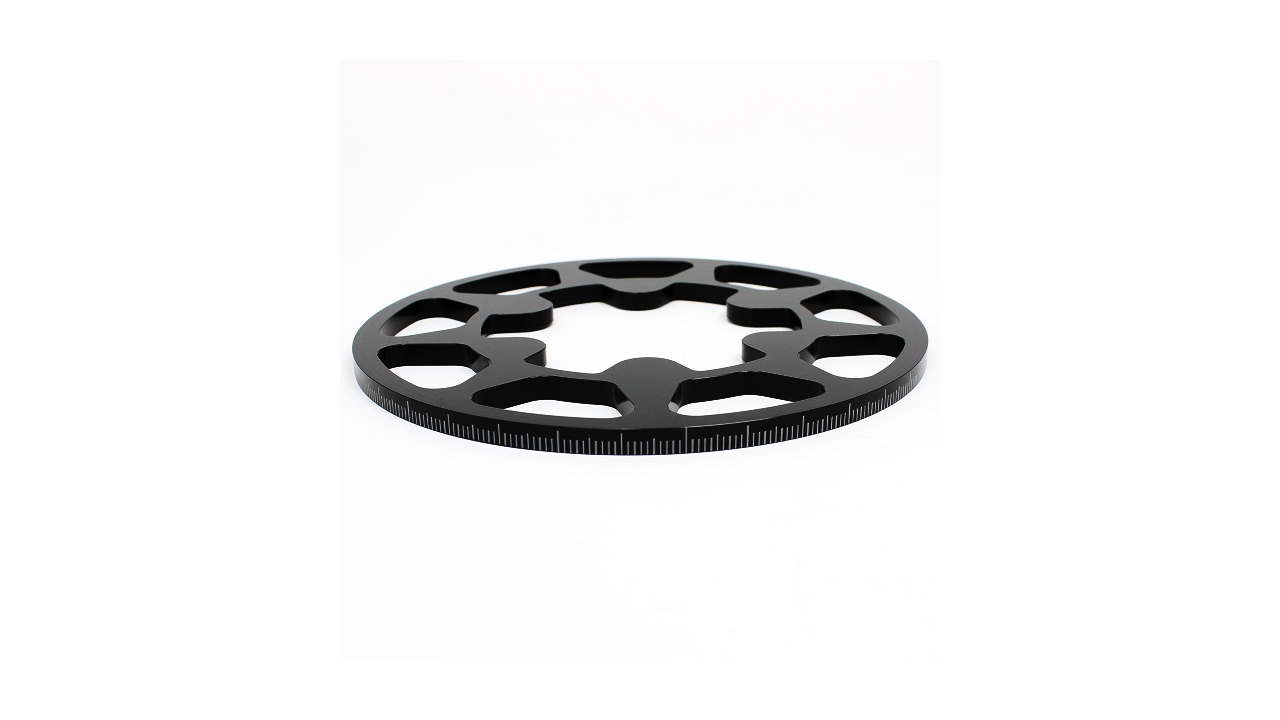

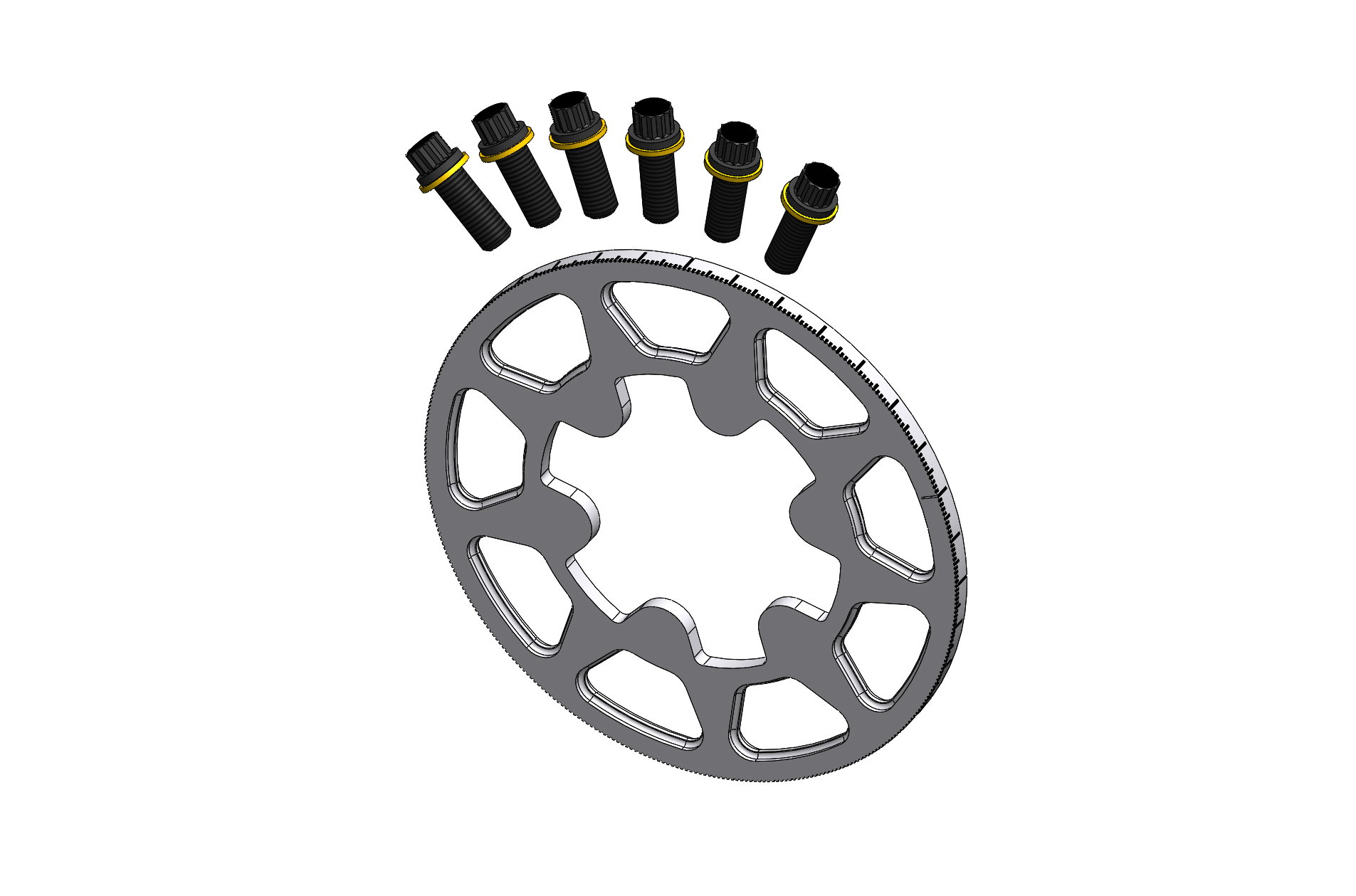

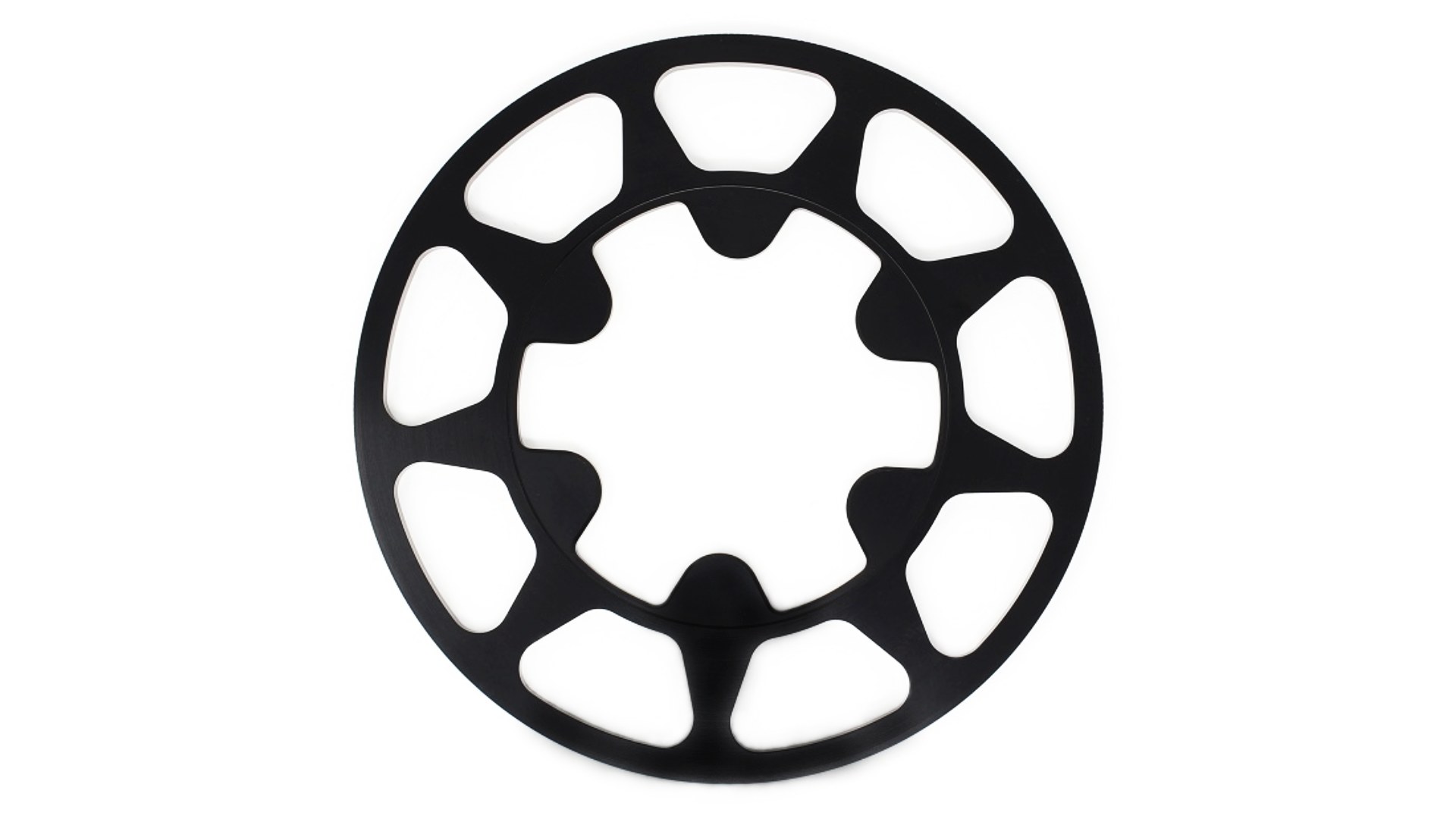

DIAMETER 6.375" MAGNETS NONE MARKINGS ALCOHOL 76.47 201010-0010 This degree ring has a diameter of 6.375", it has no magnets and is marked for an alcohol burning engine. Also included are six 3/8-24 bolts and washers for the crank hub.

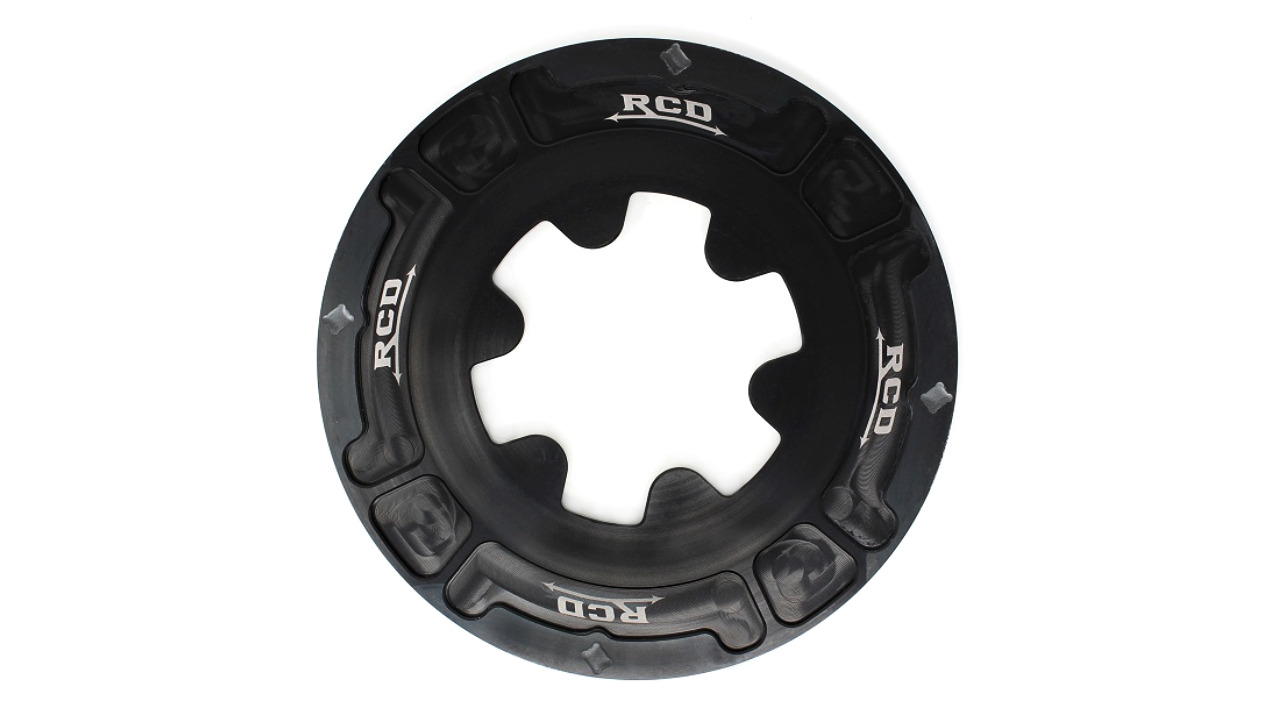

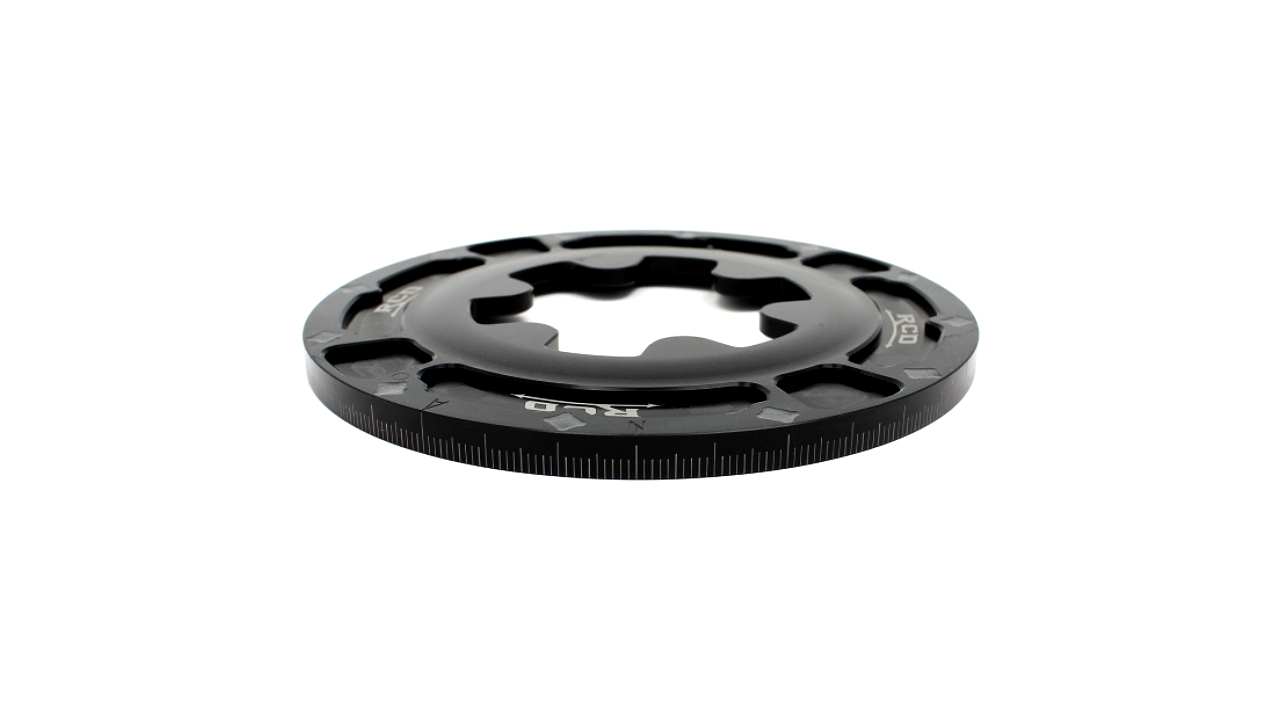

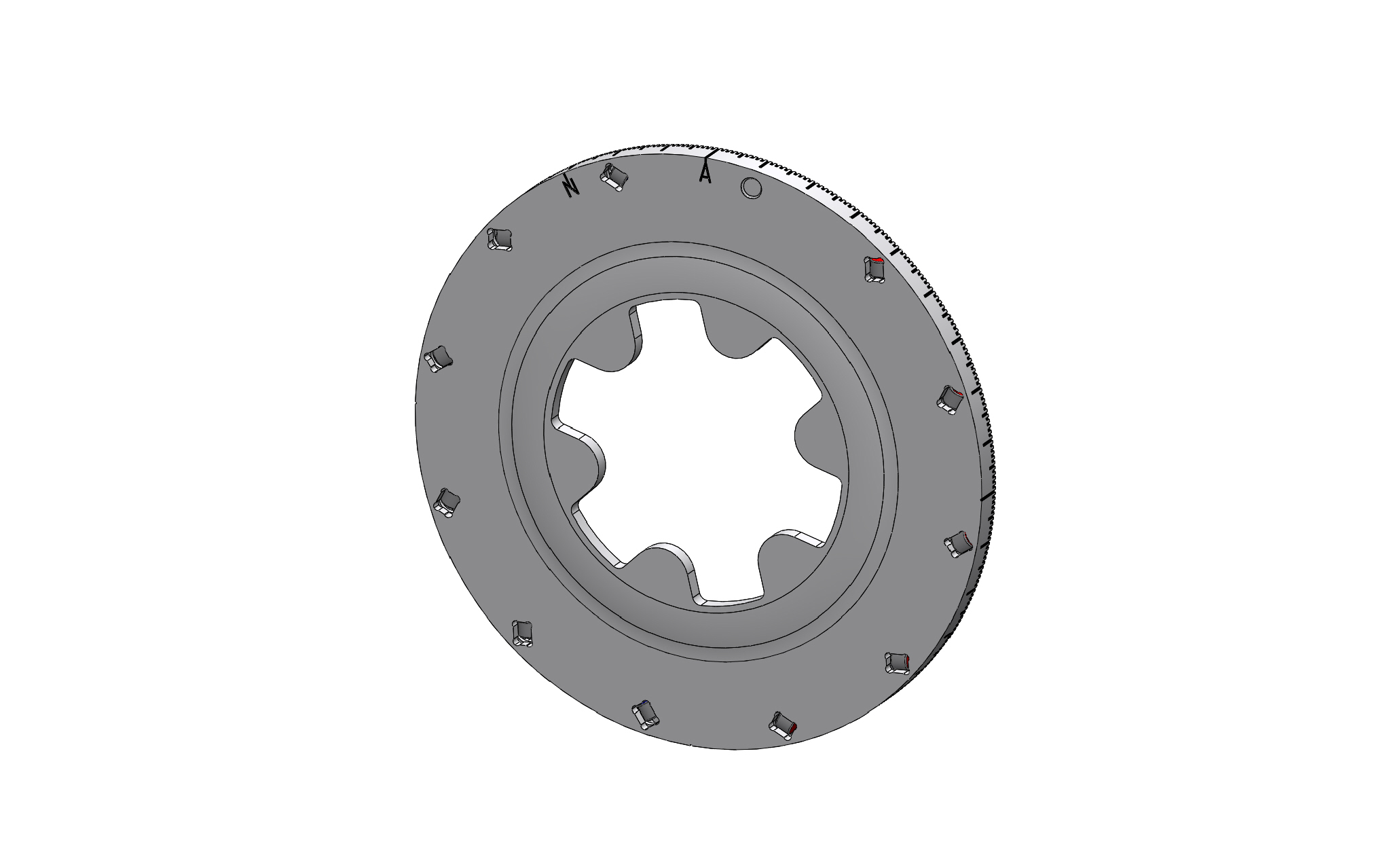

DIAMETER 7.0" MAGNETS 11 MAGNETS MARKINGS ALCOHOL 185 201020-0011 This degree ring has a diameter of 7.0", it has 11 magnets 30 degrees apart with one magnet free pocket and is marked for an alcohol burning engine.

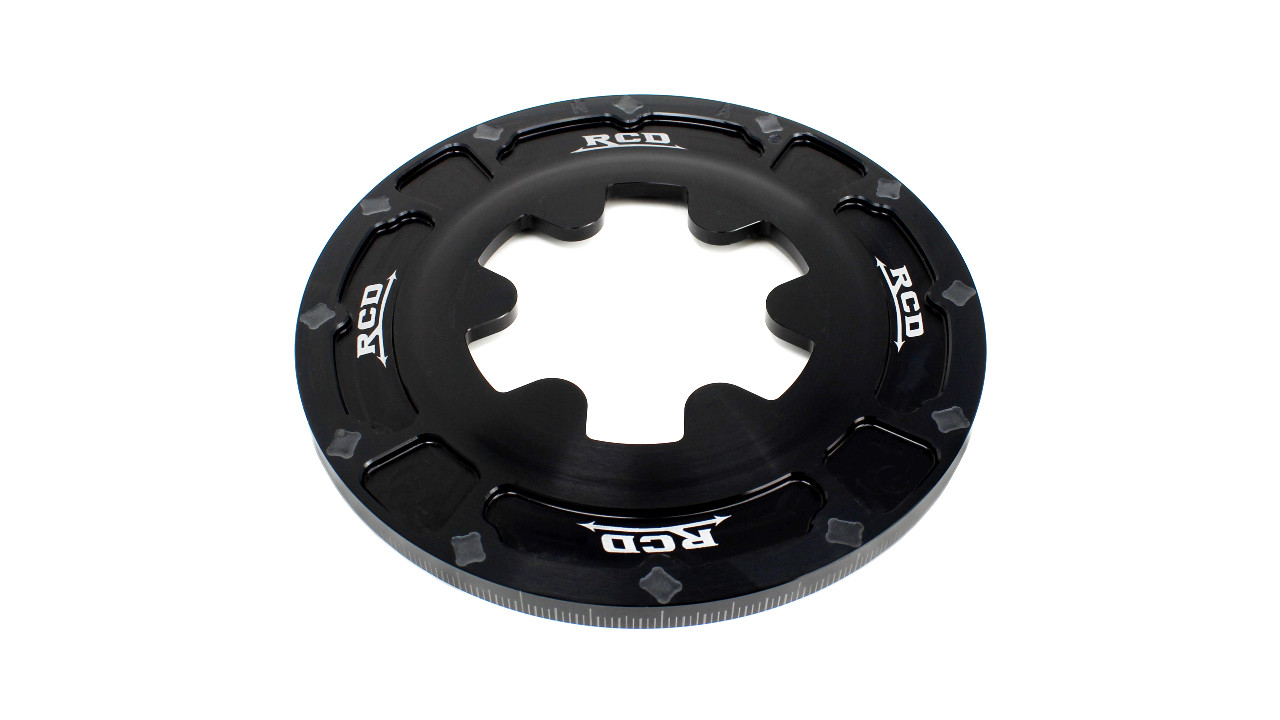

DIAMETER 7.0" MAGNETS 12 MAGNETS MARKINGS ALCOHOL 185 201020-0012 This degree ring has a diameter of 7.0”, it has 12 magnets 30 degrees apart and is marked for an alcohol burning engine.

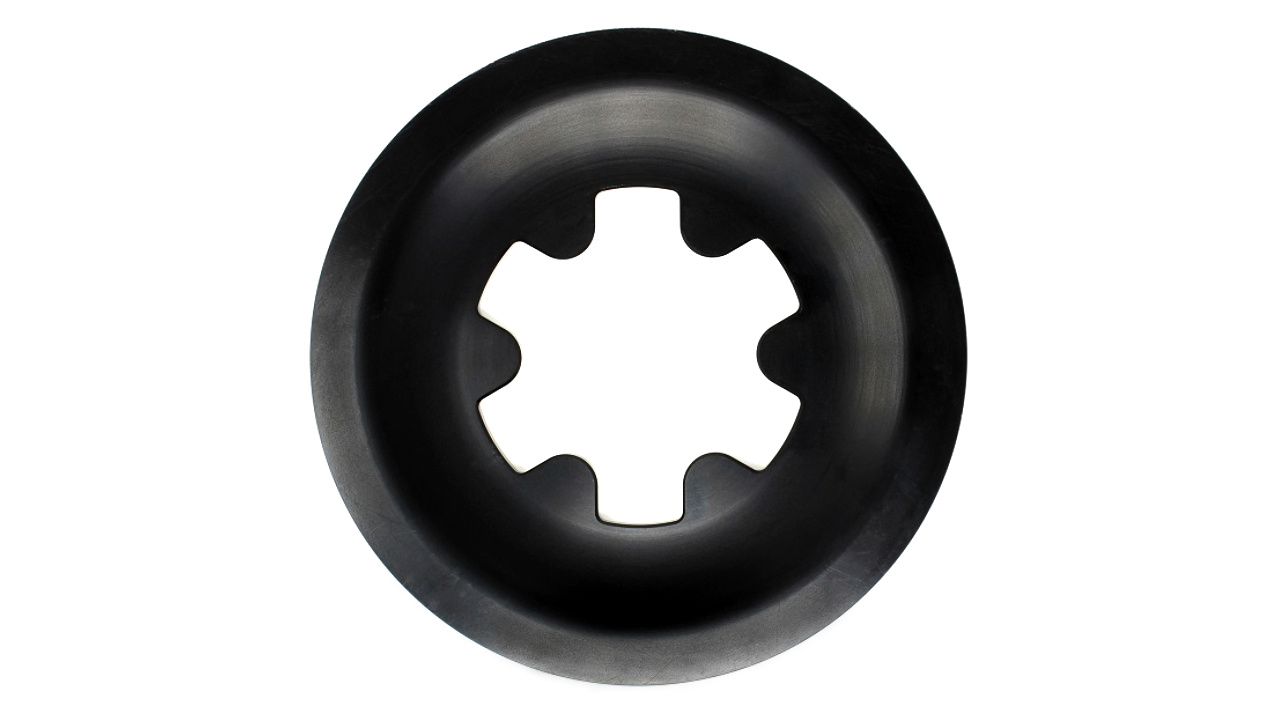

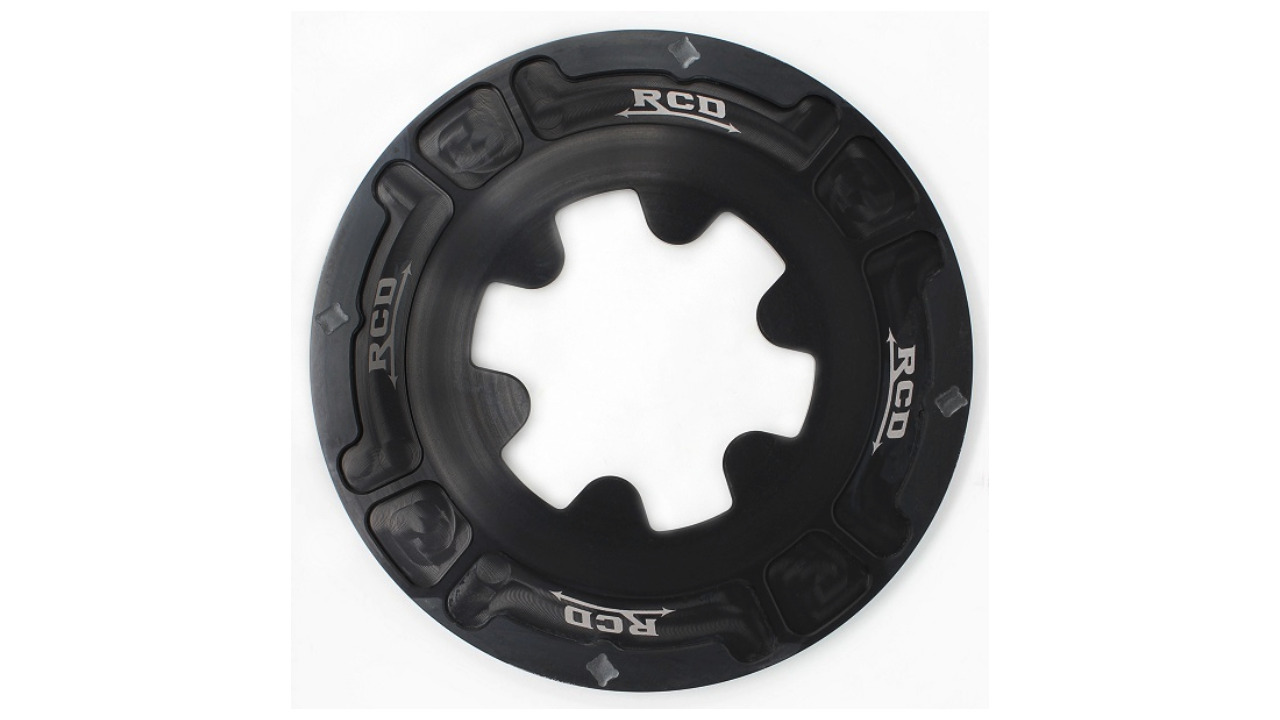

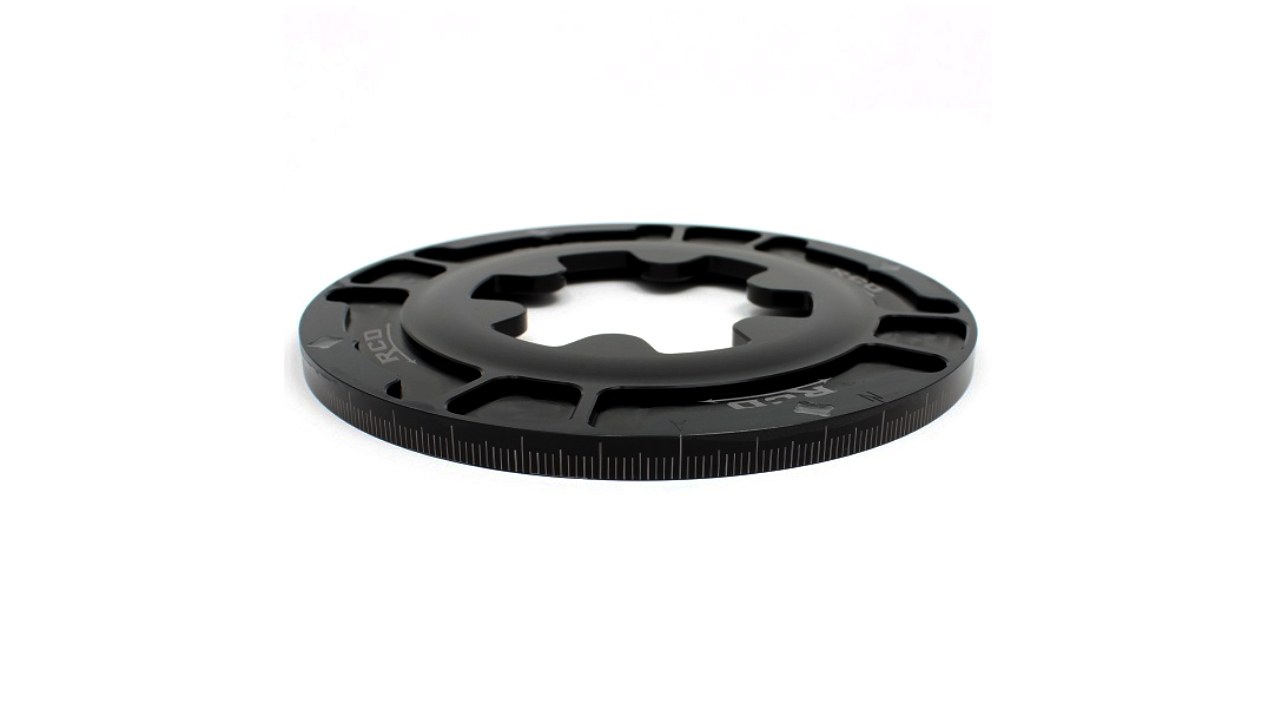

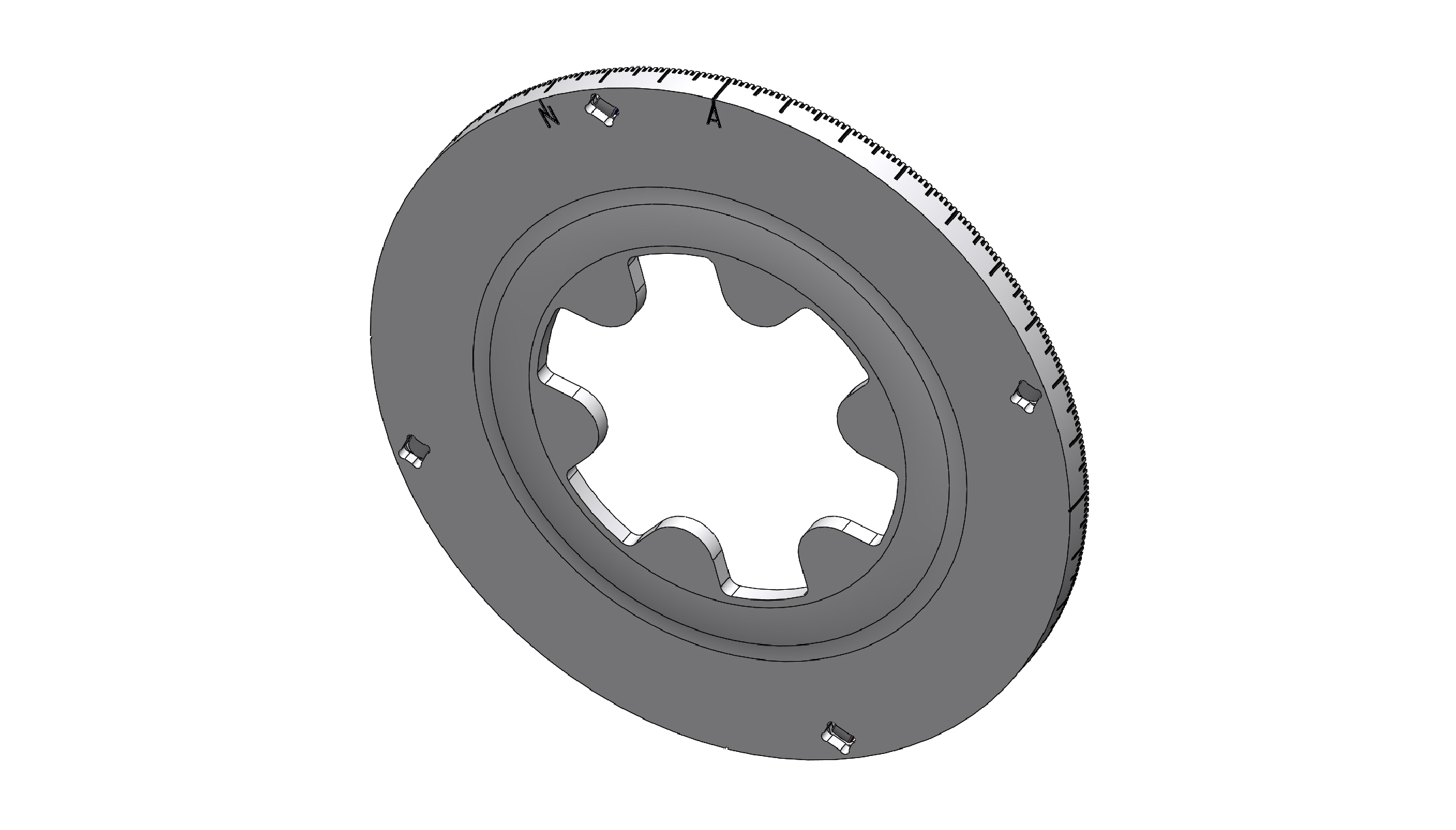

DIAMETER 7.0" MAGNETS 4 MAGNETS MARKINGS ALCOHOL 141.7 201020-0004 This degree ring has a diameter of 7.0", it has 4 magnets 90 degrees apart and is marked for an alcohol burning engine.

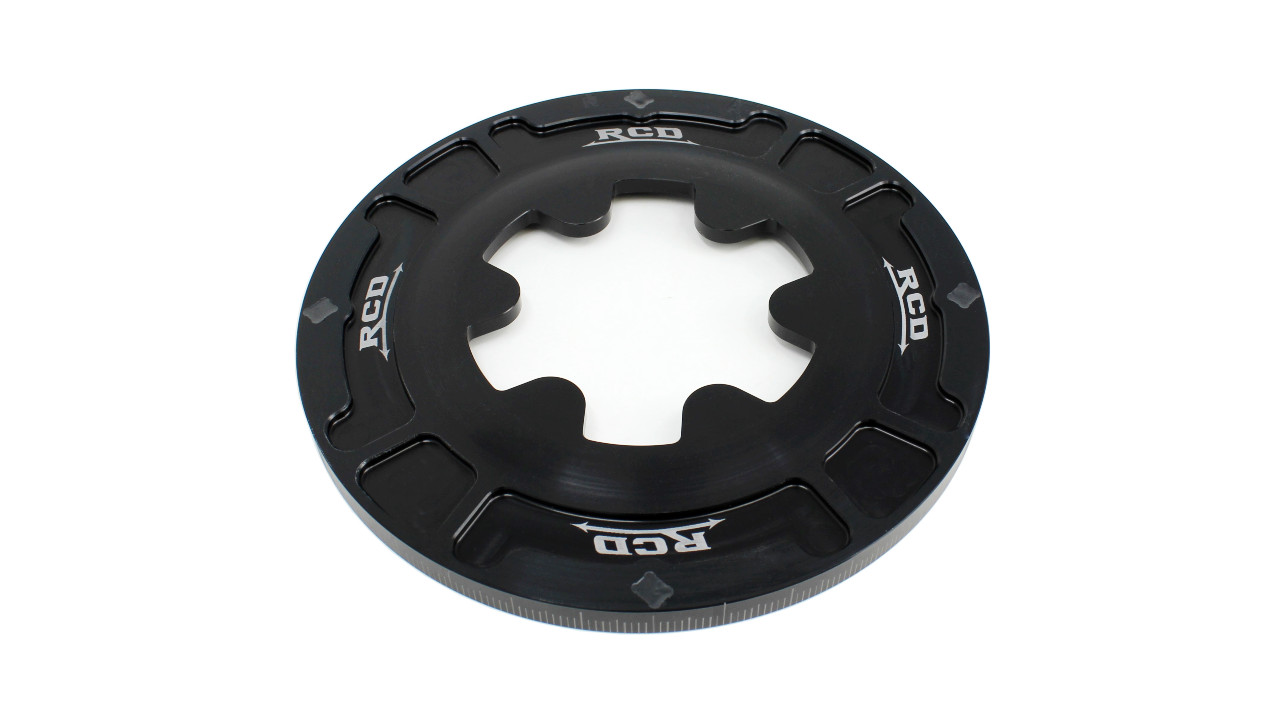

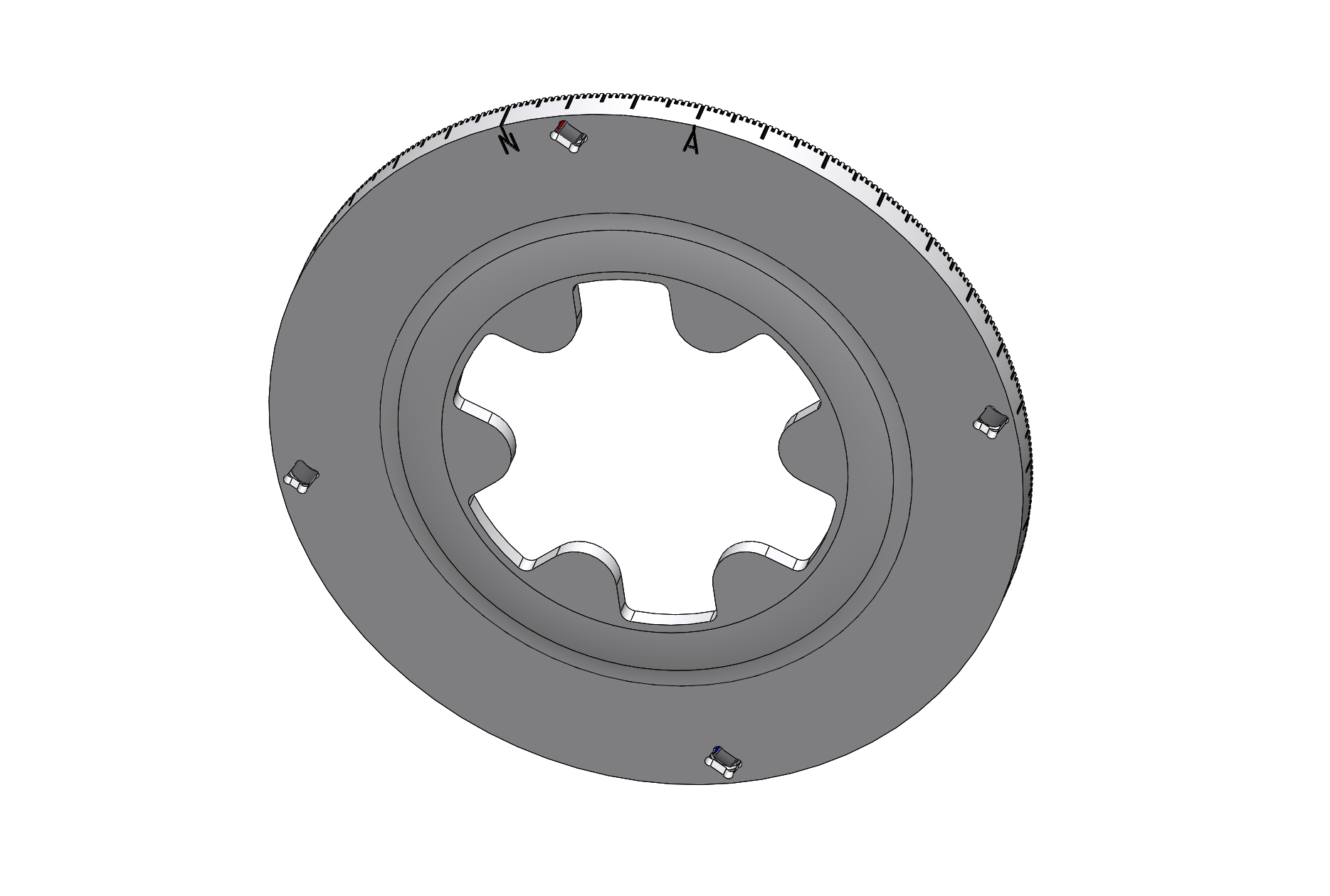

DIAMETER 7.0" MAGNETS 4 MAGNETS MARKINGS NITRO 141.7 201020-0005 This degree ring has a diameter of 7.0", it has 4 magnets 90 degrees apart and is marked for a nitromethane burning engine with 30 degrees of lead verses an alcohol engine.

FLAT DEGREE RINGS

Available in 6.375" or 7.0" diameters, non- magnet rings are flat with a .025" flange offset. Flat degree rings with magnets have a .200" flange offset giving them a slight concave shape.
0
201010-0010 DEGREE RING FLAT LIGHTENED W-SPROCKET BOLTS _ WASHERS.PDF   Download
201020-0004 DEGREE RING FLAT SOLID ALCOHOL 7.0 BOM.PDF   Download
201020-0005 DEGREE RING FLAT SOLID NITRO 7.0.PDF   Download
201020-0007 DEGREE FLAT SOLID 6.37 DIA W-MAGNET ALCOHOL BOM.PDF   Download
201020-0008 DEGREE RING FLAT SOLID 6.37 DIA W-MAGNETS NITRO BOM.PDF   Download
201020-0011 DEGREE RING FLAT 7IN W-11 MAGNETS exp.PDF   Download
201020-0012 DEGREE RING FLAT 7IN W-12 MAGNETS BOM.PDF   Download

Specifications
