TOP BRACE LENGTH

LONG MEDIUM PLATE SHORT

BORE SIZE

0.625" 0.75" N/A

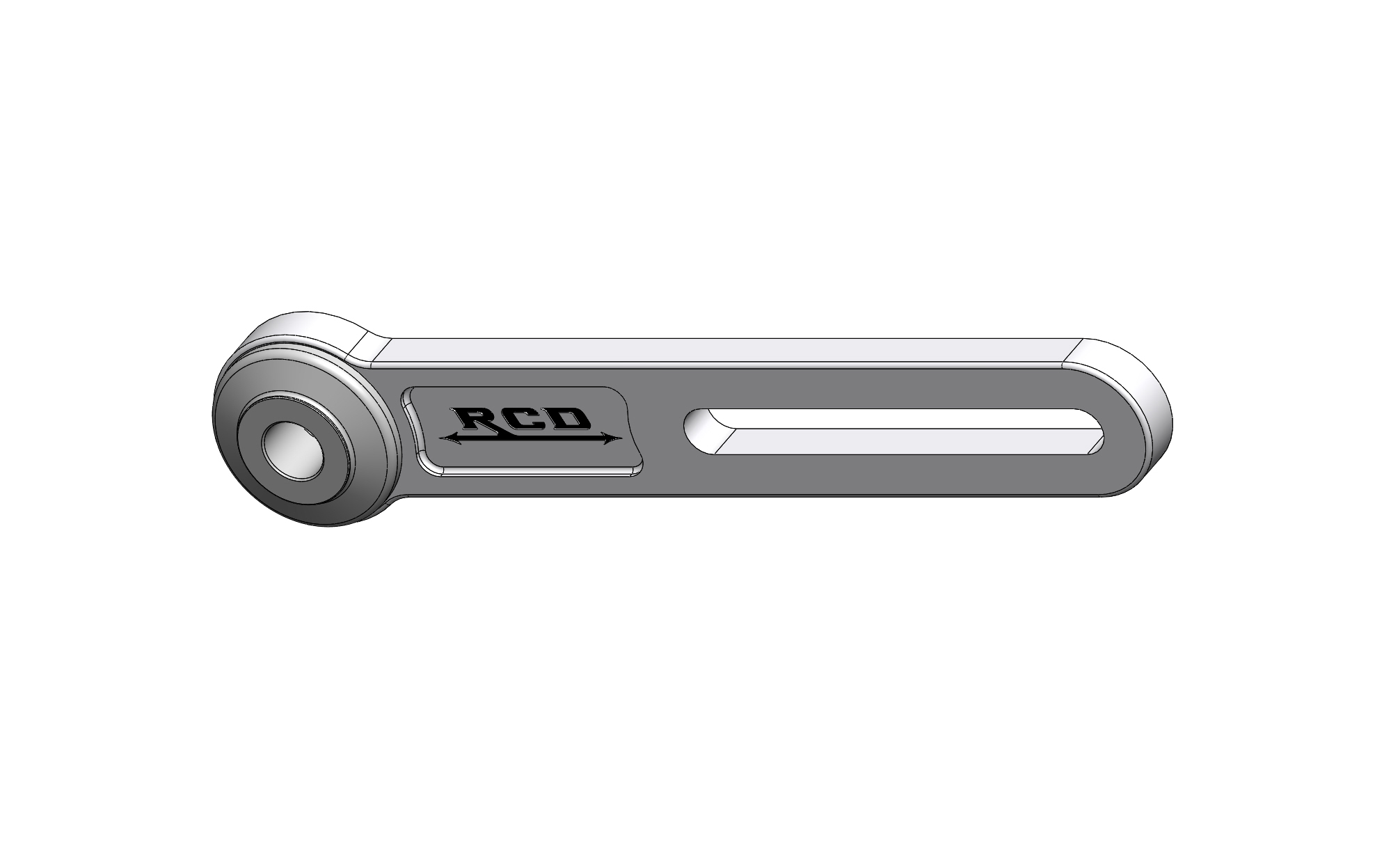

TOP BRACE LENGTH LONG BORE SIZE 0.625" 79.78 156201-0076 This long brace has 8.575" of travel and a 5/8" idler stud bore.

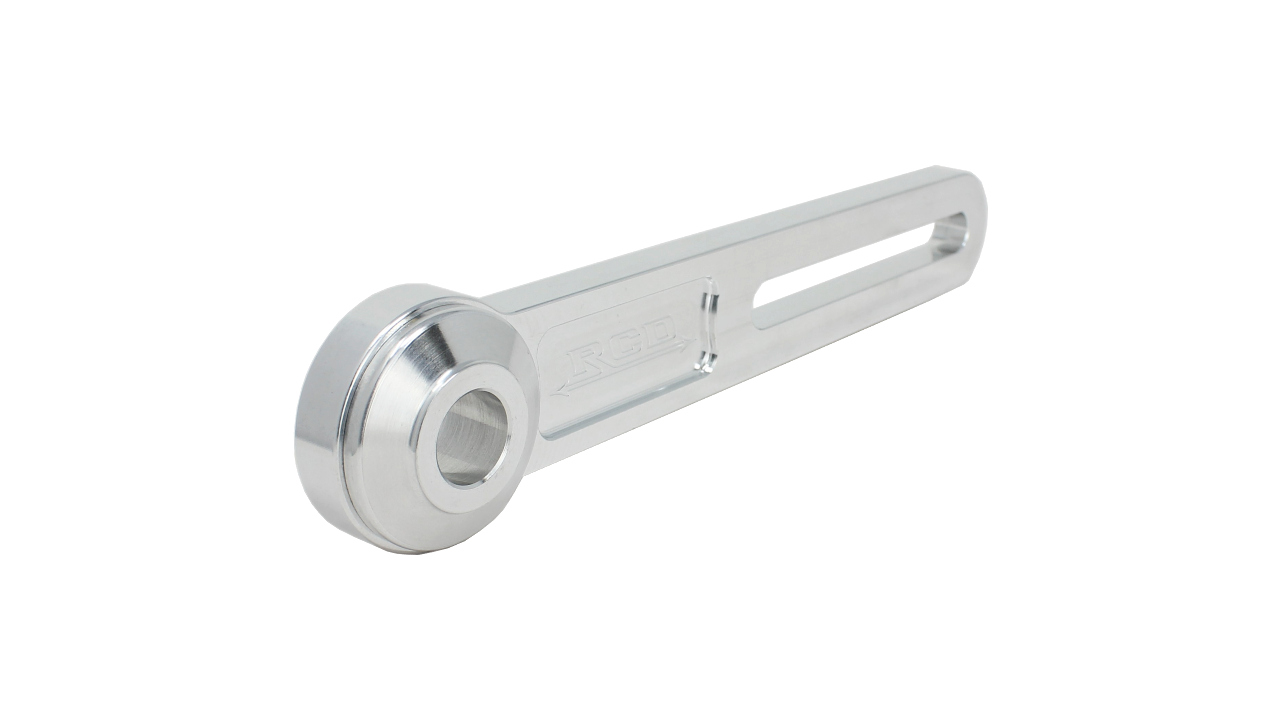

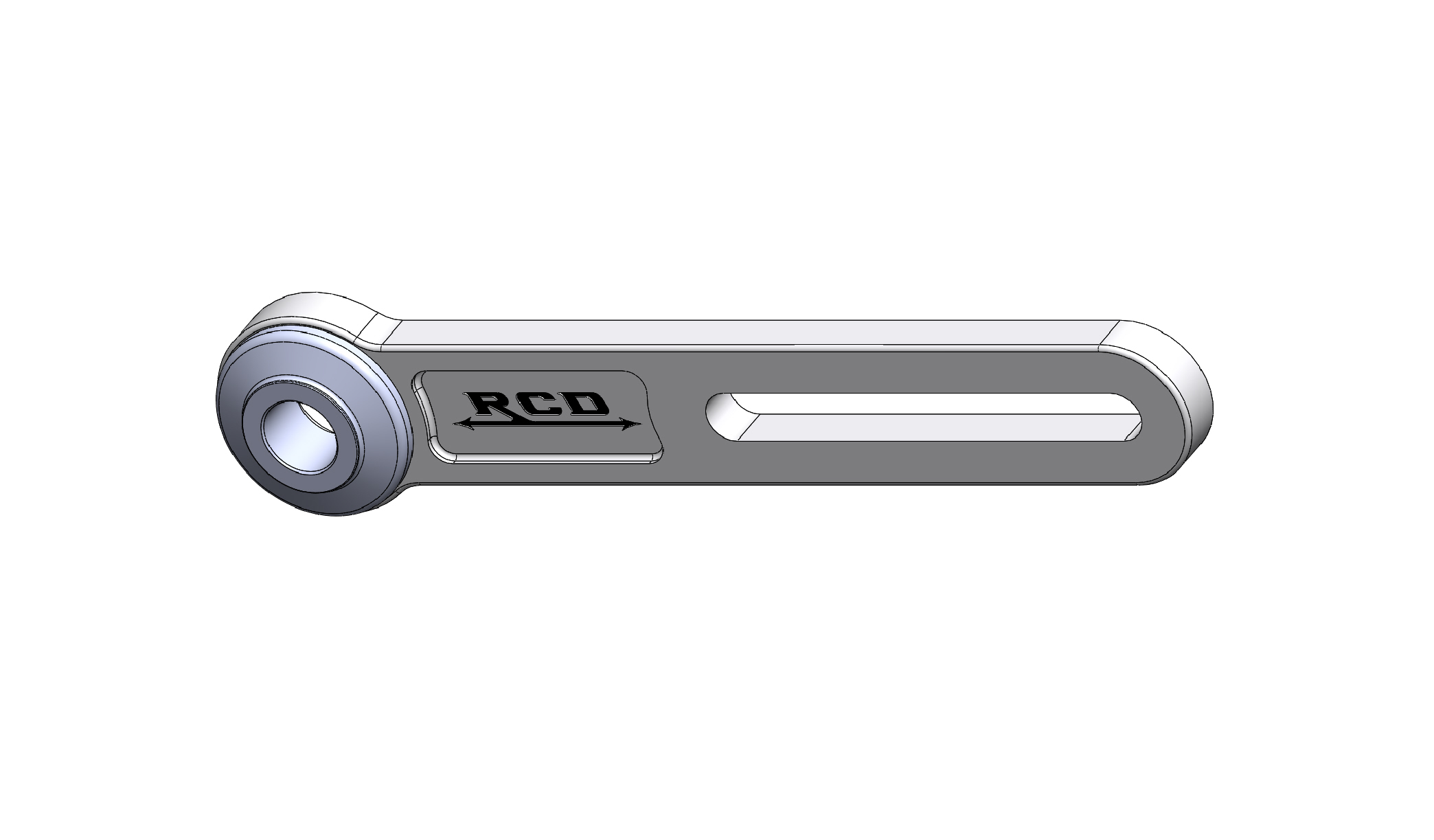

TOP BRACE LENGTH LONG BORE SIZE 0.75" 79.78 156201-0066 This long brace has 8.575" of travel and a 3/4" idler stud bore.

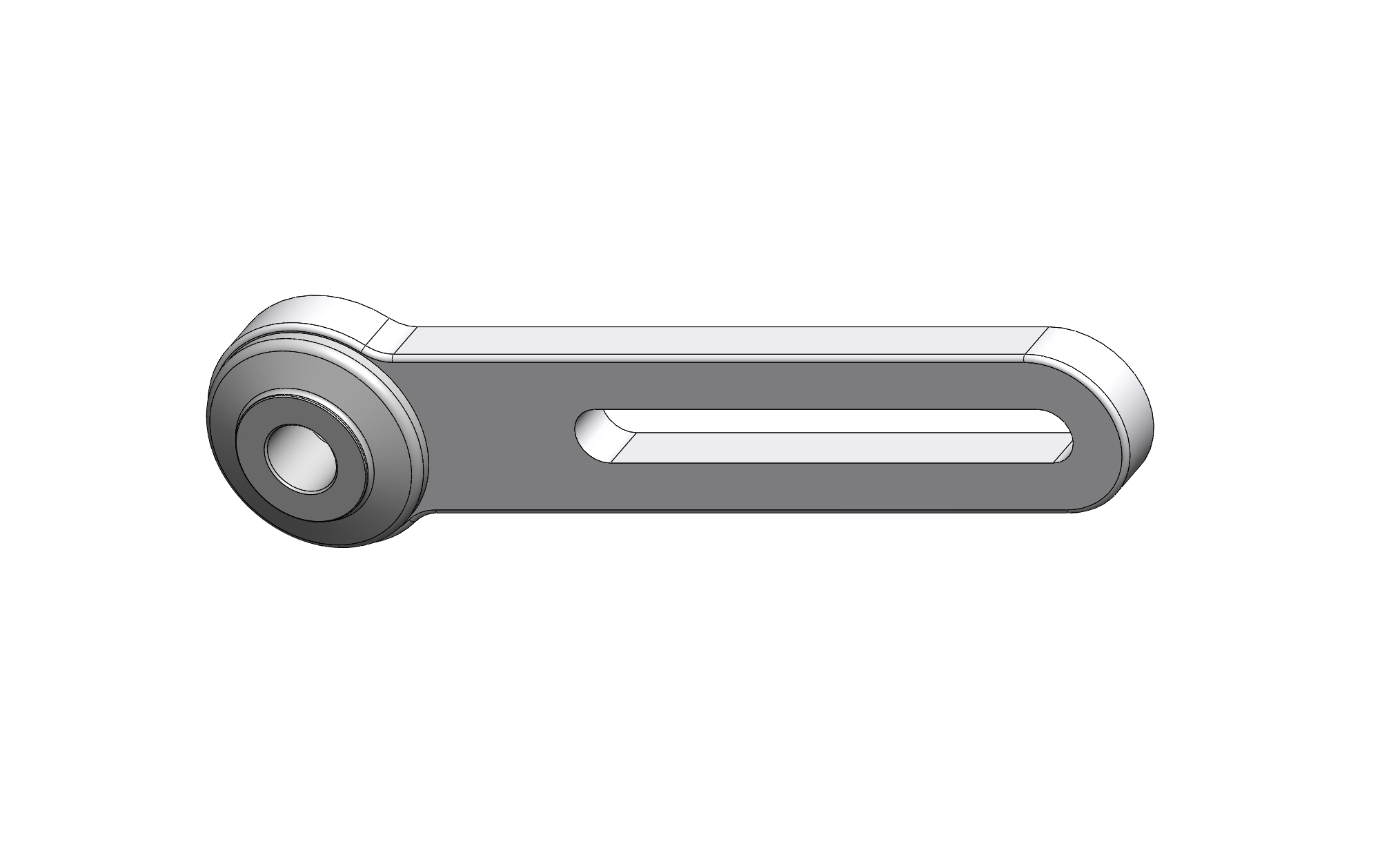

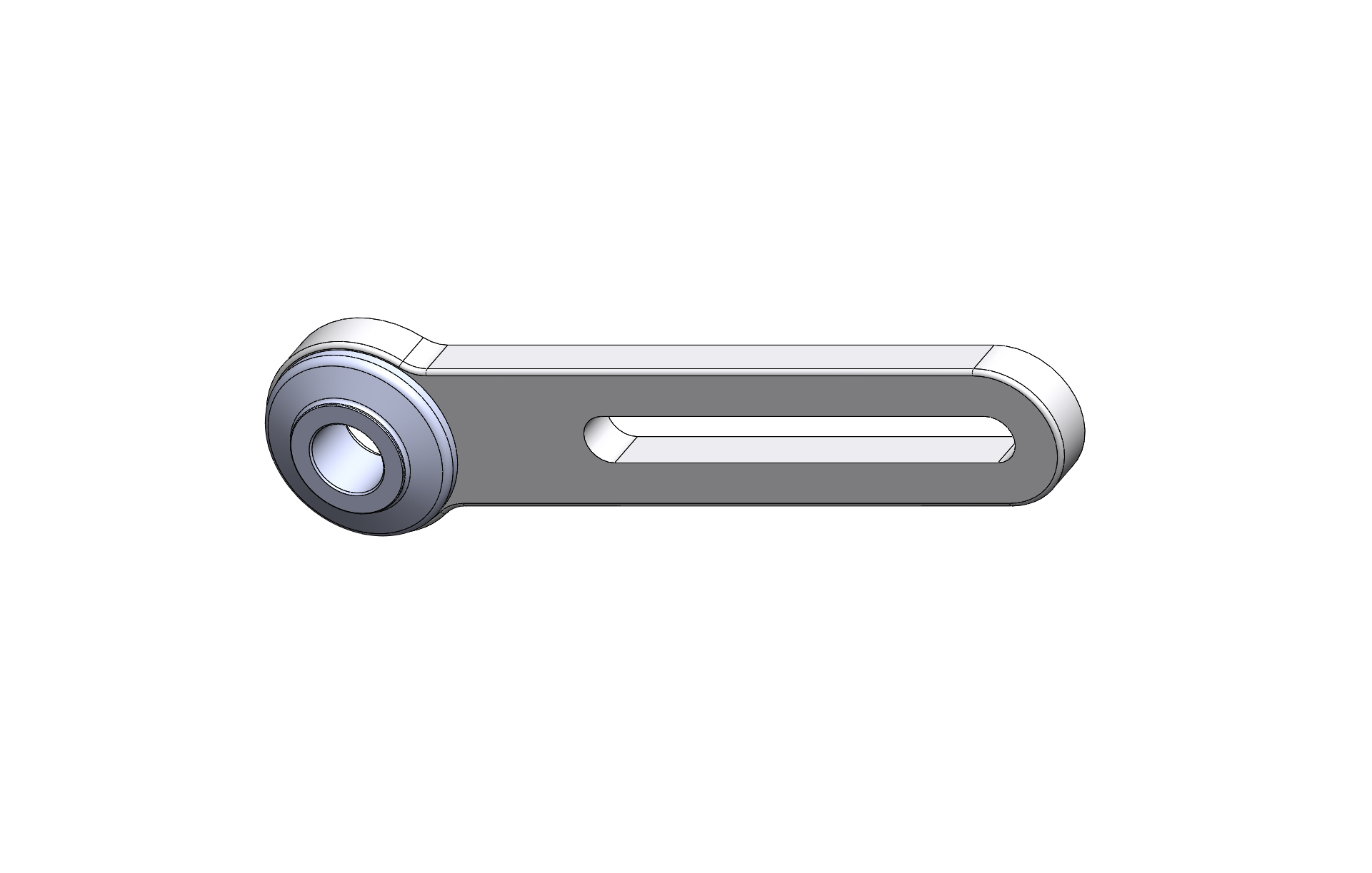

TOP BRACE LENGTH MEDIUM BORE SIZE 0.625" 70.57 156201-0073 This medium brace has 6.88" of travel and a 5/8" idler stud bore.

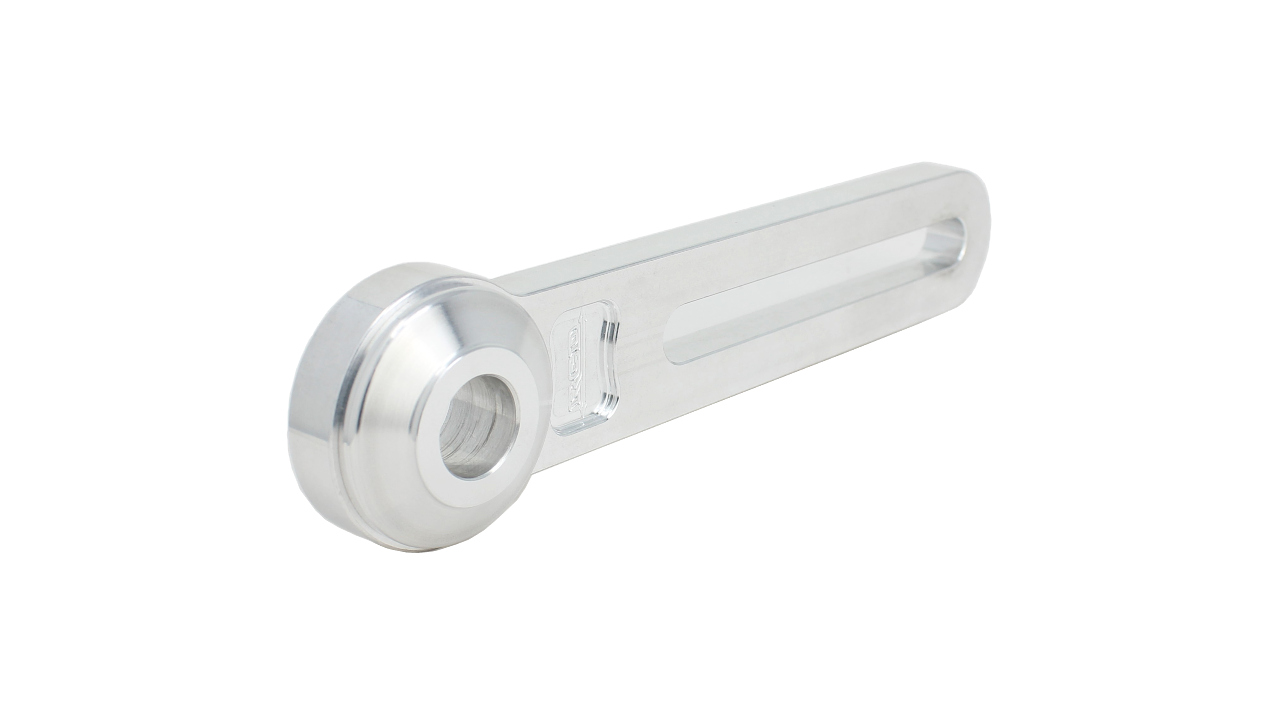

TOP BRACE LENGTH MEDIUM BORE SIZE 0.75" 70.57 156201-0063 This medium brace has 6.88" of travel and a 3/4" idler stud bore.

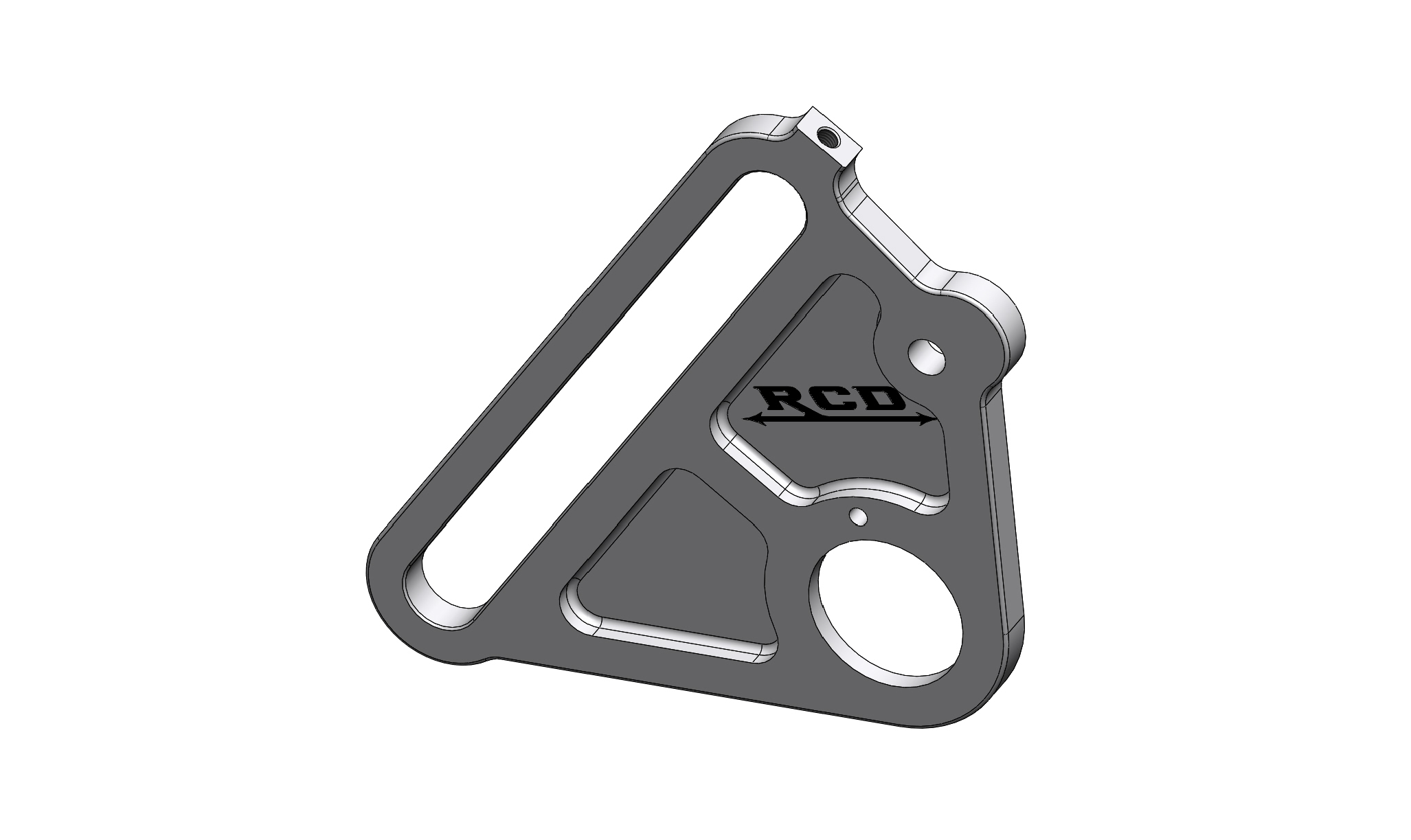

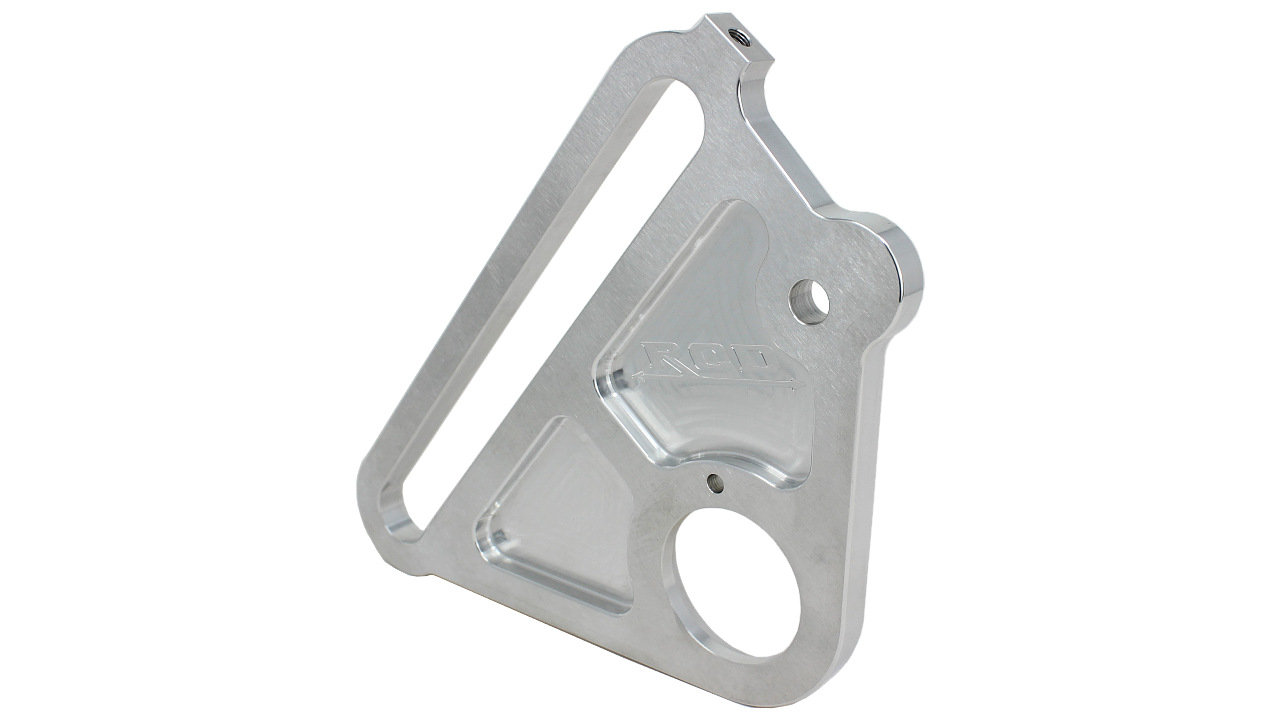

TOP BRACE LENGTH PLATE BORE SIZE N/A 212.54 156201-03 This outboard support plate attaches to the angled idler plate PN: 156206-01 and a threaded pump extension PN: 300201-0076. Made from 1/2" aluminum plate this brace also has provisions for a jack screw and a mount for an anti-rotation tab for a Rage fuel pump.

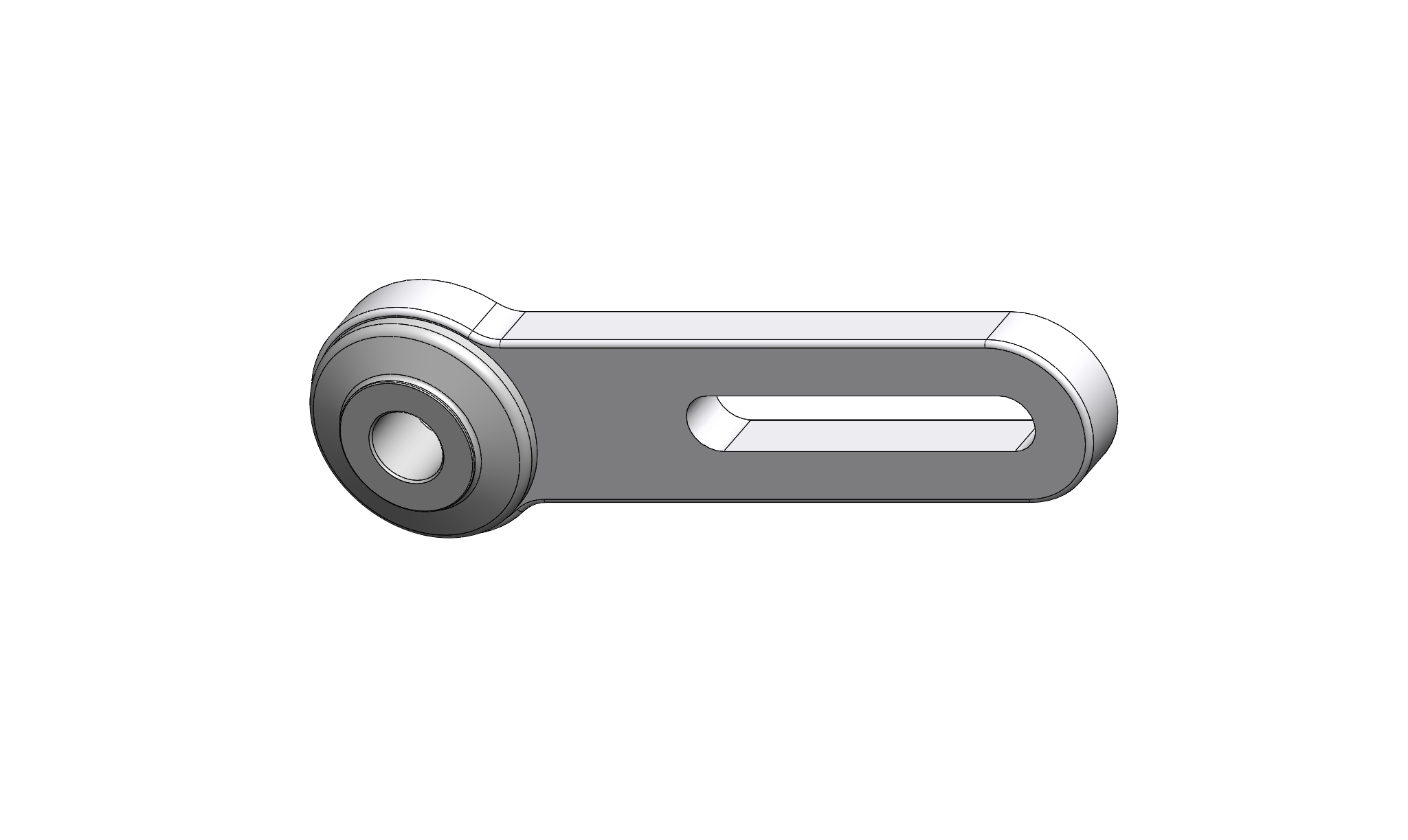

TOP BRACE LENGTH SHORT BORE SIZE 0.625" 64.44 156201-0070 This short brace has 5.38" of travel and a 5/8" idler stud bore.

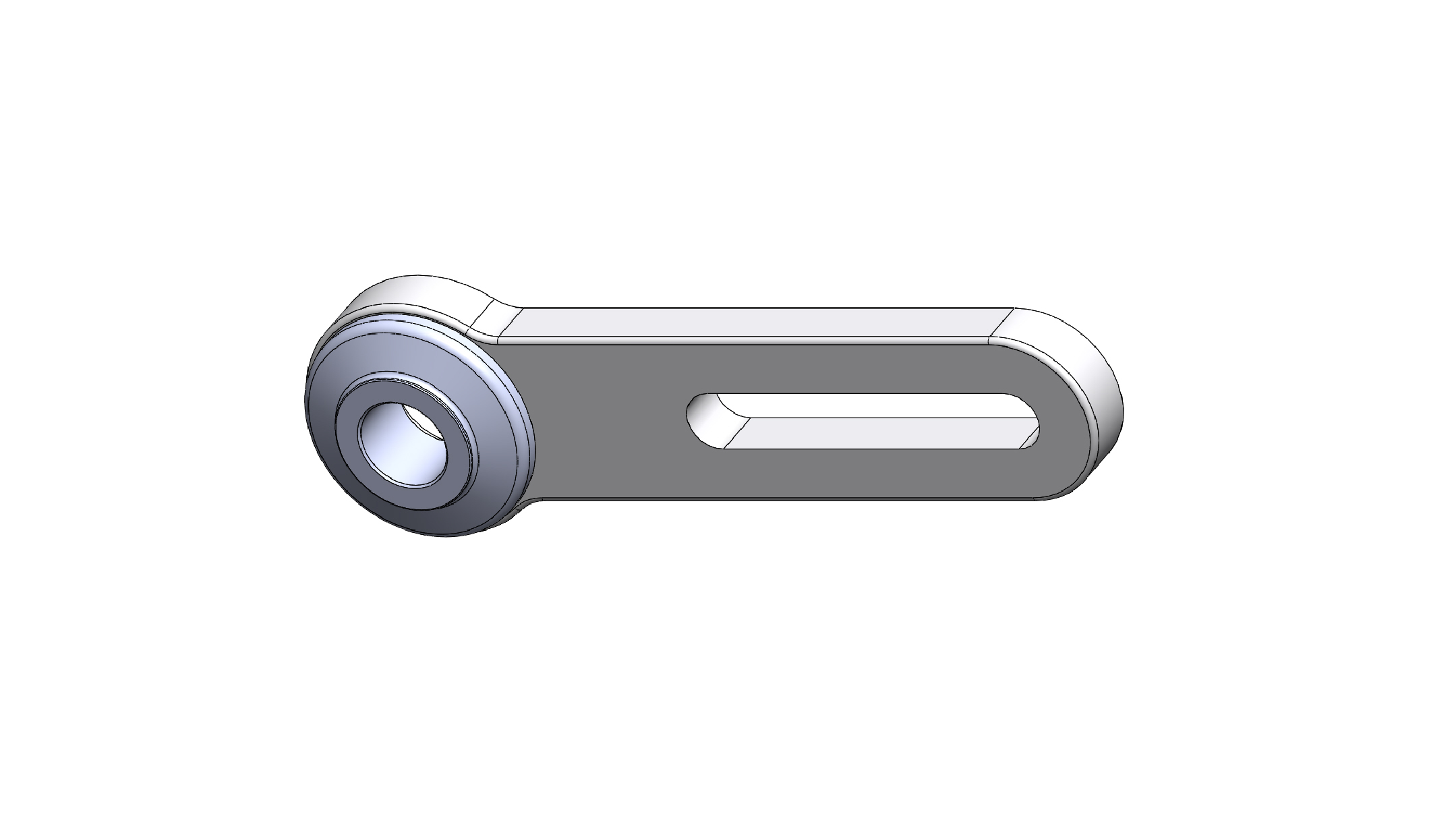

TOP BRACE LENGTH SHORT BORE SIZE 0.75" 79.78 156201-0060 This short brace has 5.38" of travel and a 3/4" idler stud bore.

TOP BRACES

The top brace is part of the outboard support. Machined from 1/2" aluminum plate these braces have a black anodized washer pressed into them. Available in short, medium and long slot lengths with 5/8" or 3/4" bore for the idler stud.
0
156201-0060 TOP BRACE SHORT .75 BORE BOM.PDF   Download
156201-0063 TOP BRACE MEDIUM .75 BORE BOM.PDF   Download
156201-0066 TOP BRACE IDLER SUPPORT LONG ASSY BOM.PDF   Download
156201-0070 TOP BRACE SHORT .625 BORE BOM.PDF   Download
156201-0073 TOP BRACE MEDIUM .625 BORE BOM.PDF   Download
156201-0076 TOP BRACE LONG .625 BORE BOM.PDF   Download
