SKU:



WIDTH

STANDARD WIDE

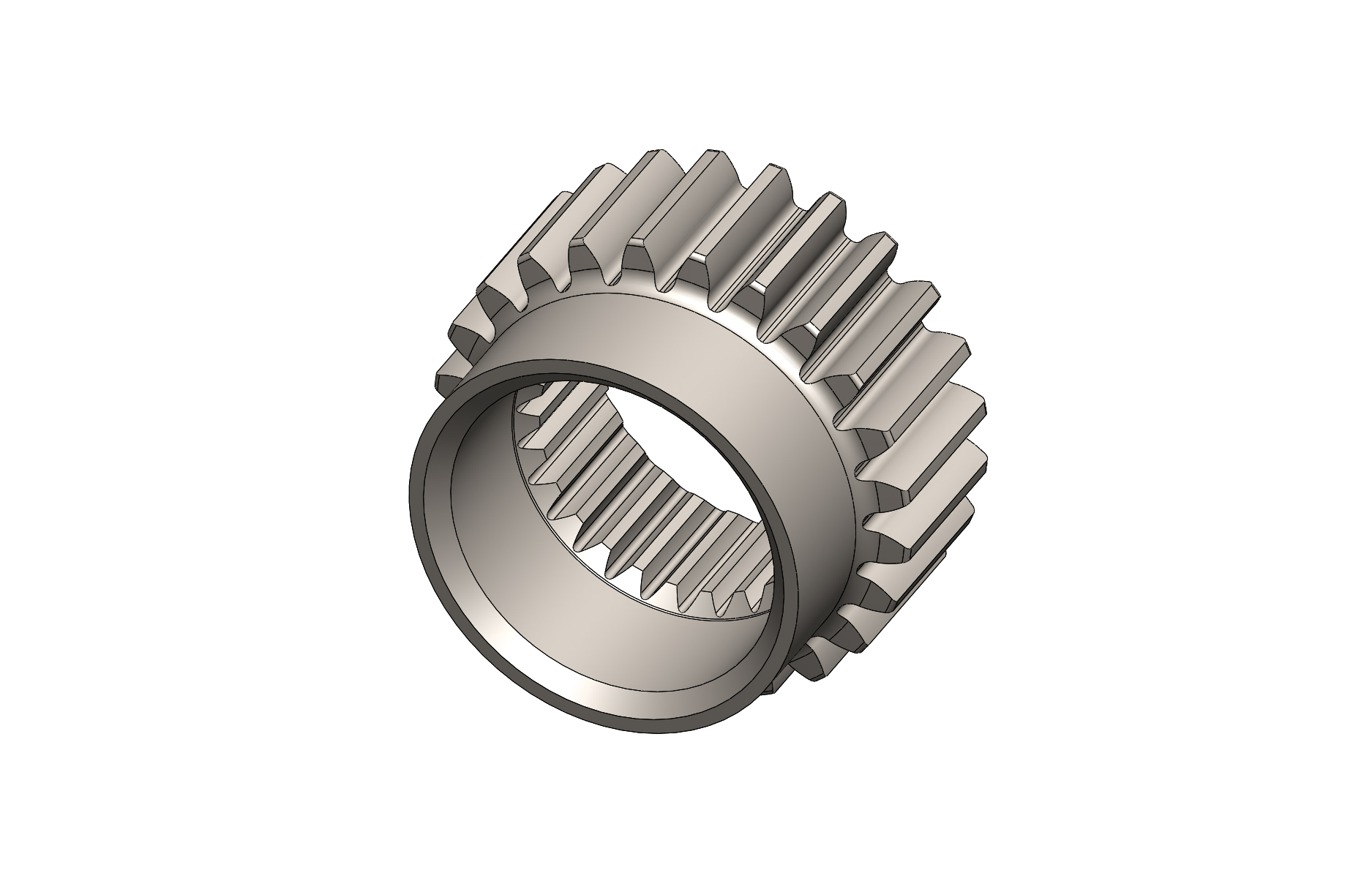

ENGINE 426/392/440 CHRYSLER CRANKSHAFT PSI SPLINE WIDTH STANDARD PROFILE 0.01" UNDER 197.37 250521-18 This 426 crank gear is made to fit a crankshaft with a PSI spline. The tooth profile has been cut .01" undersize.

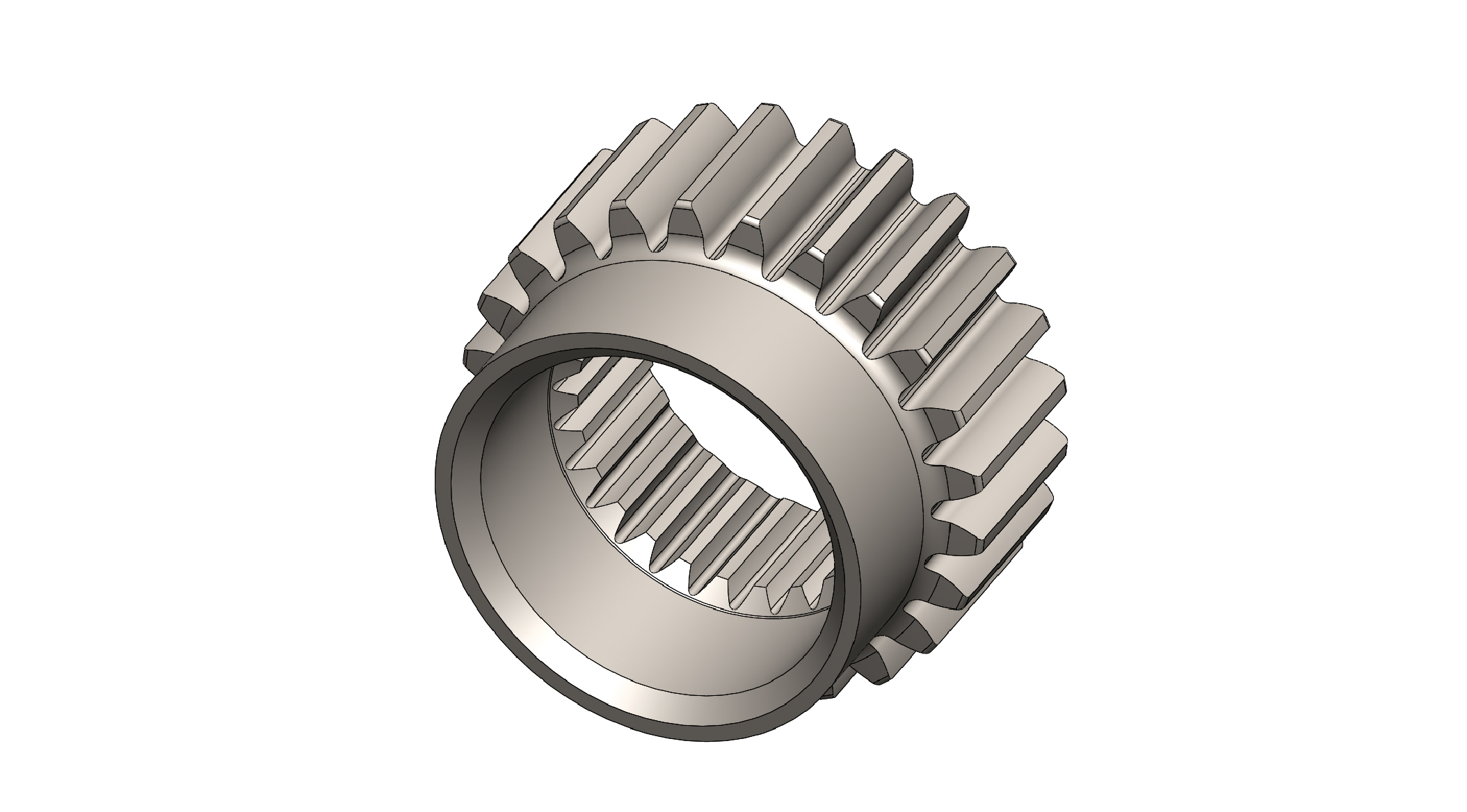

ENGINE 426/392/440 CHRYSLER CRANKSHAFT PSI SPLINE WIDTH STANDARD PROFILE STANDARD 180.5 250521-16 This standard 426 crank gear is made to fit a crankshaft with a PSI spline.

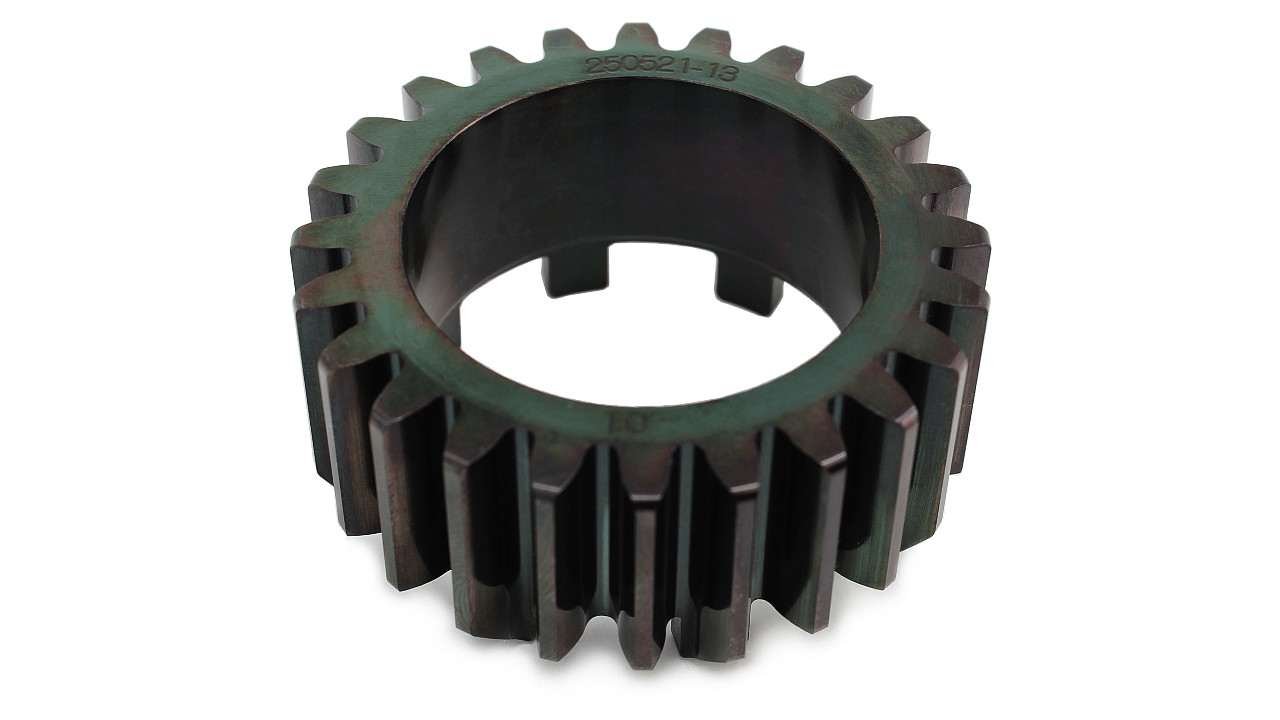

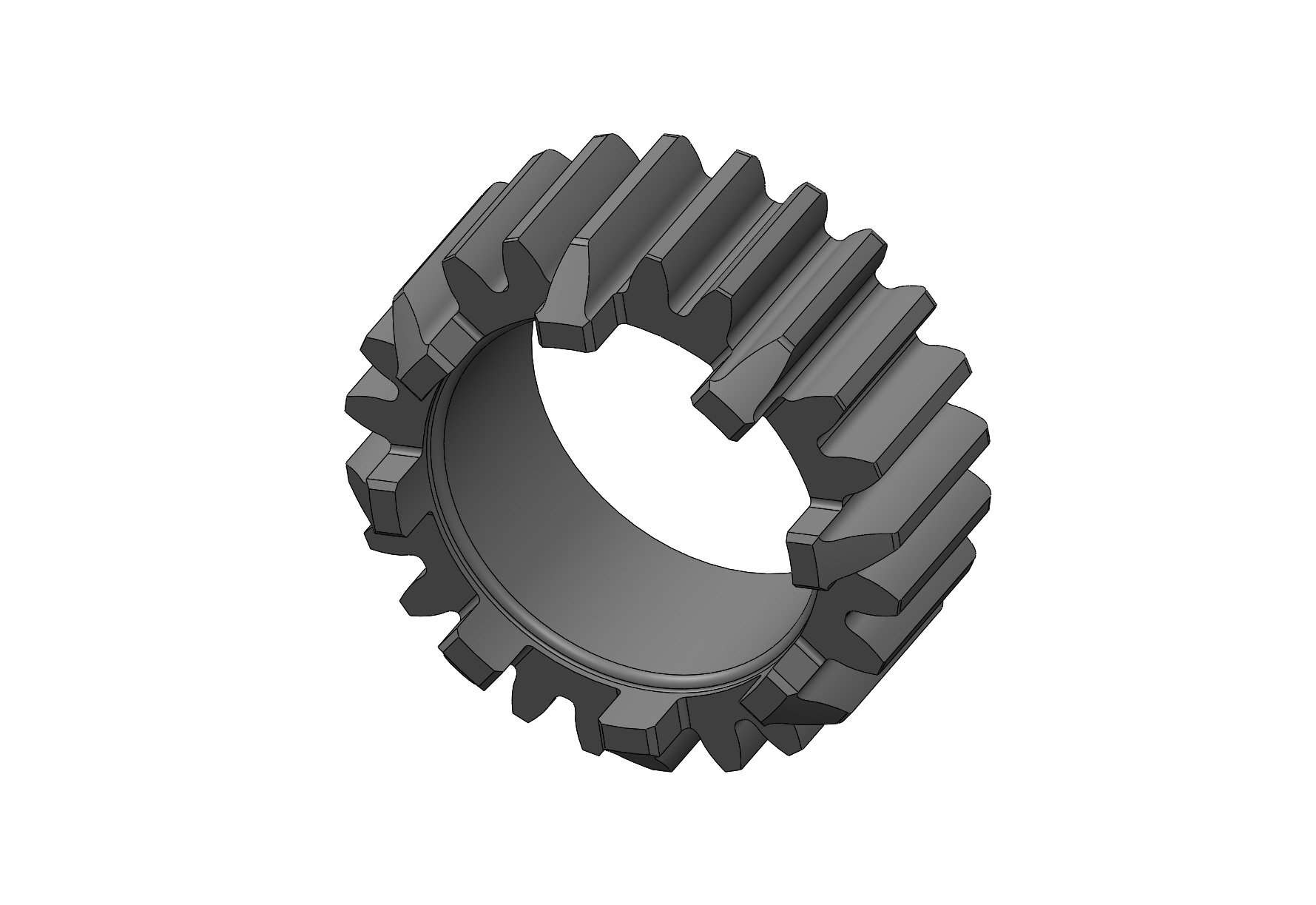

ENGINE 426/392/440 CHRYSLER CRANKSHAFT RCD SPLINE WIDTH STANDARD PROFILE 0.01" UNDER 161.37 250521-13 This 426 crank gear is made to fit a crankshaft with a RCD spline. The tooth profile has been cut .01" undersize.

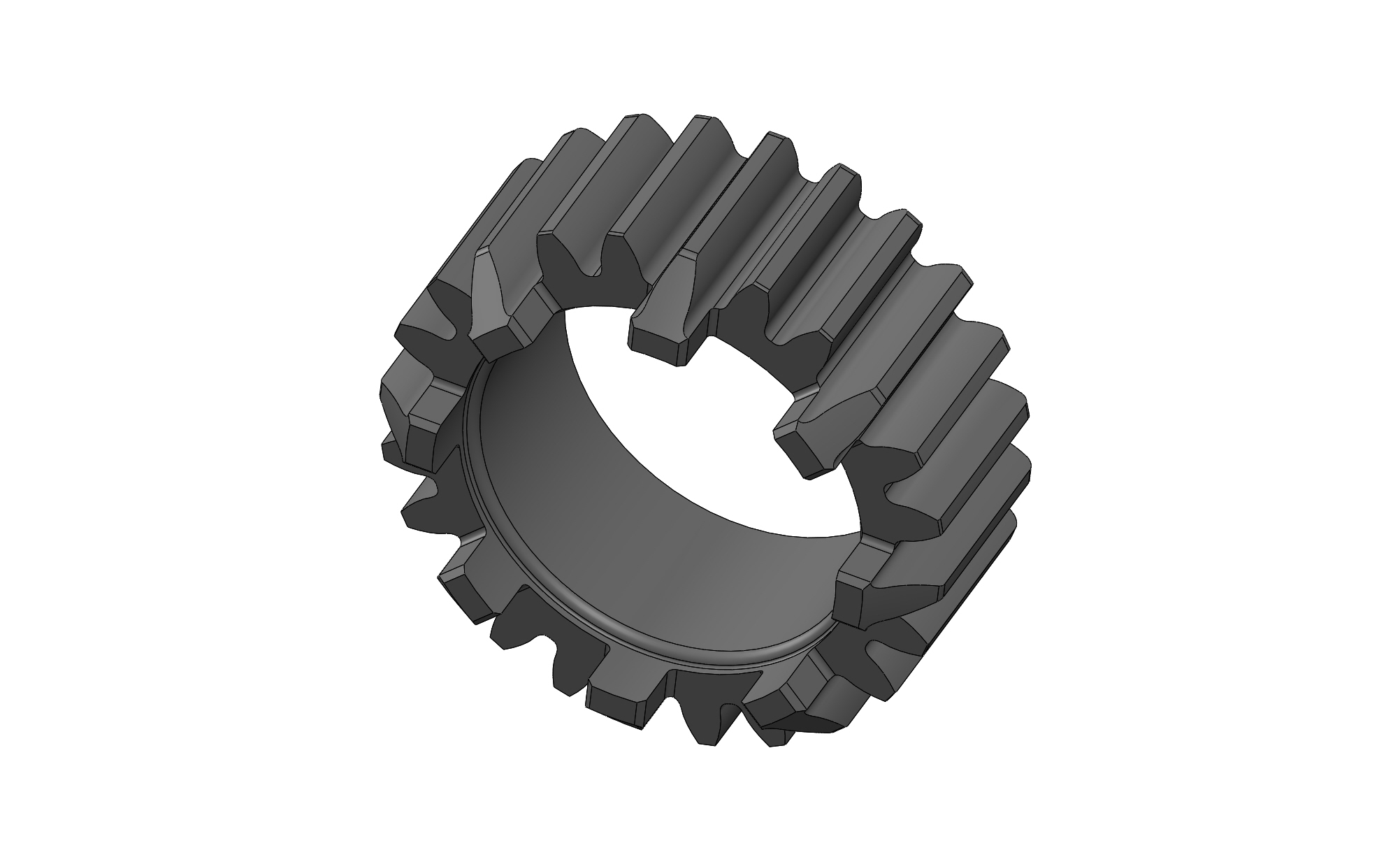

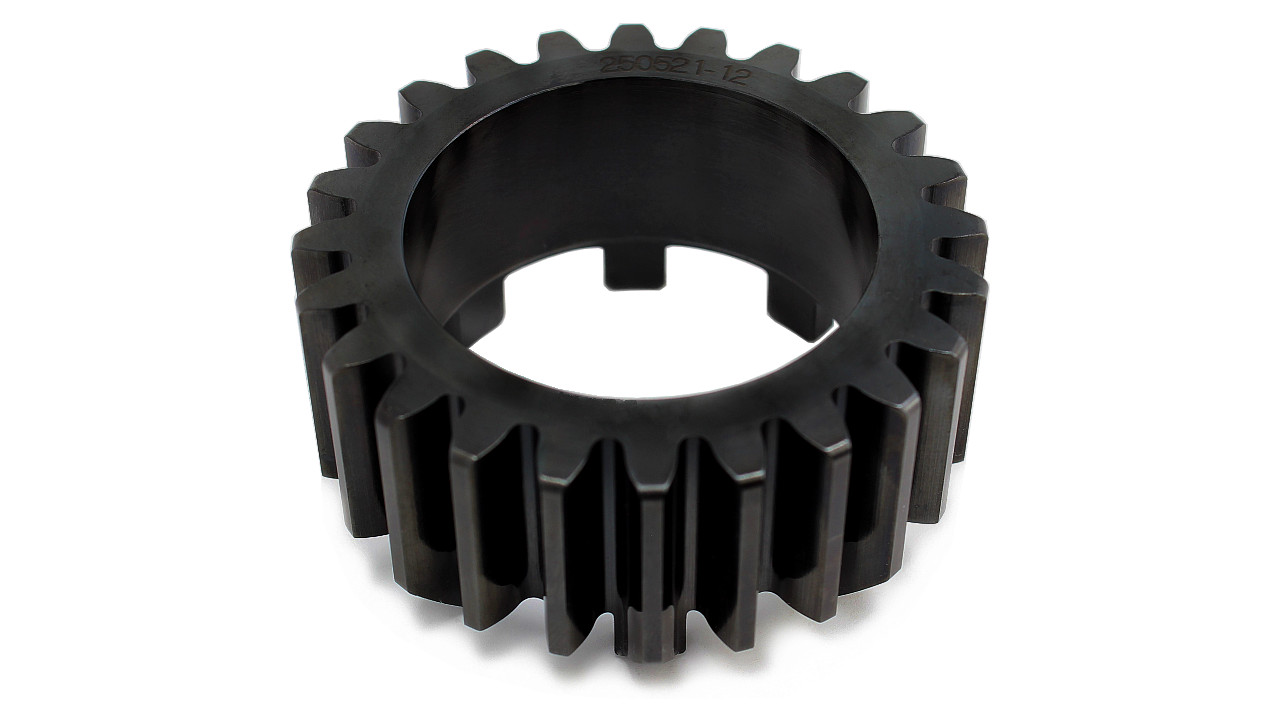

ENGINE 426/392/440 CHRYSLER CRANKSHAFT RCD SPLINE WIDTH STANDARD PROFILE STANDARD 146.76 250521-12 This standard 426 crank gear is made to fit a crankshaft with a RCD spline.

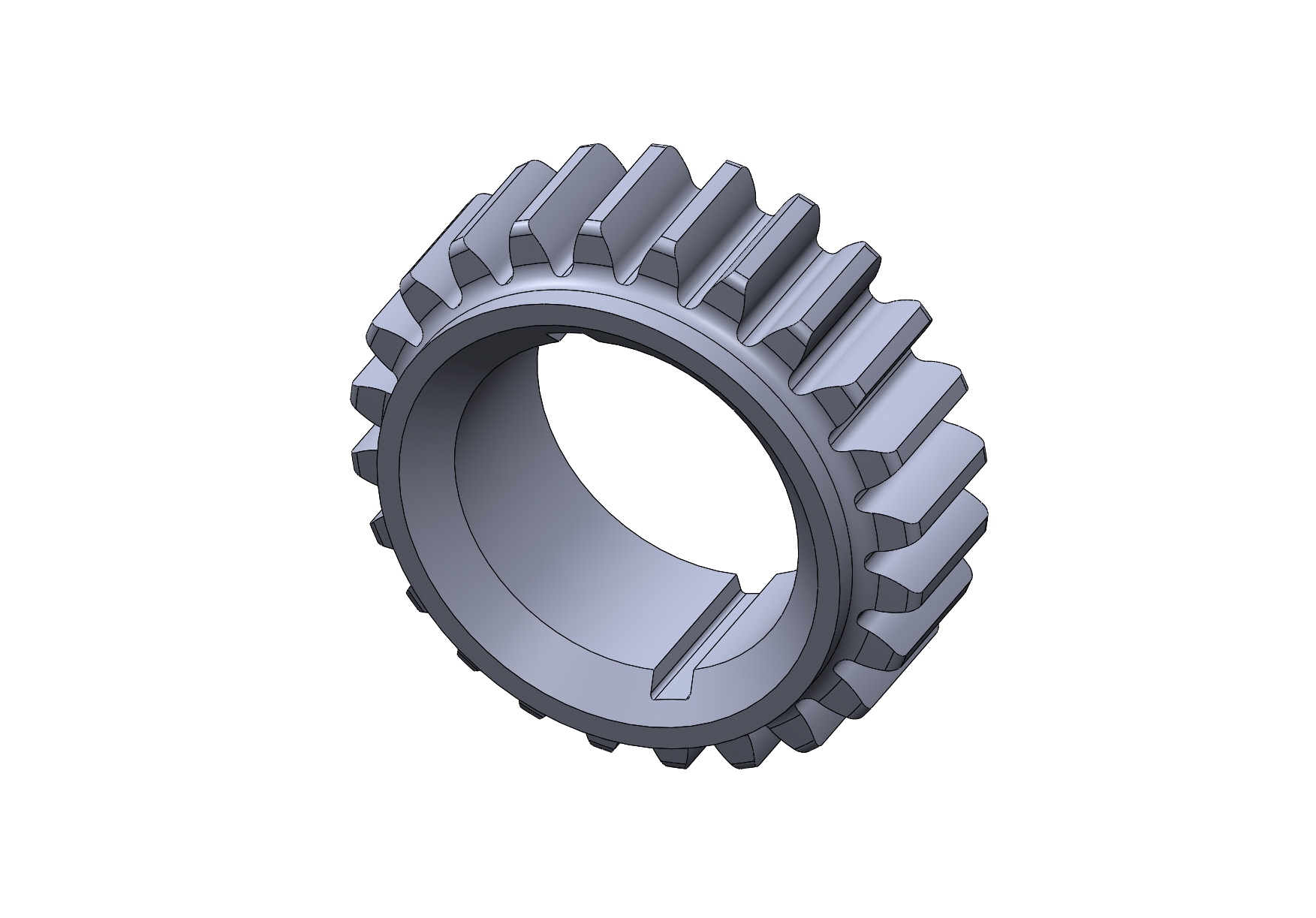

ENGINE 426/392/440 CHRYSLER CRANKSHAFT STANDARD WIDTH STANDARD PROFILE 0.01" UNDER 175.43 250521-04 This 426 crank gear has two 3/16" keyways 180 degrees apart. The tooth profile has been cut .01" undersize.

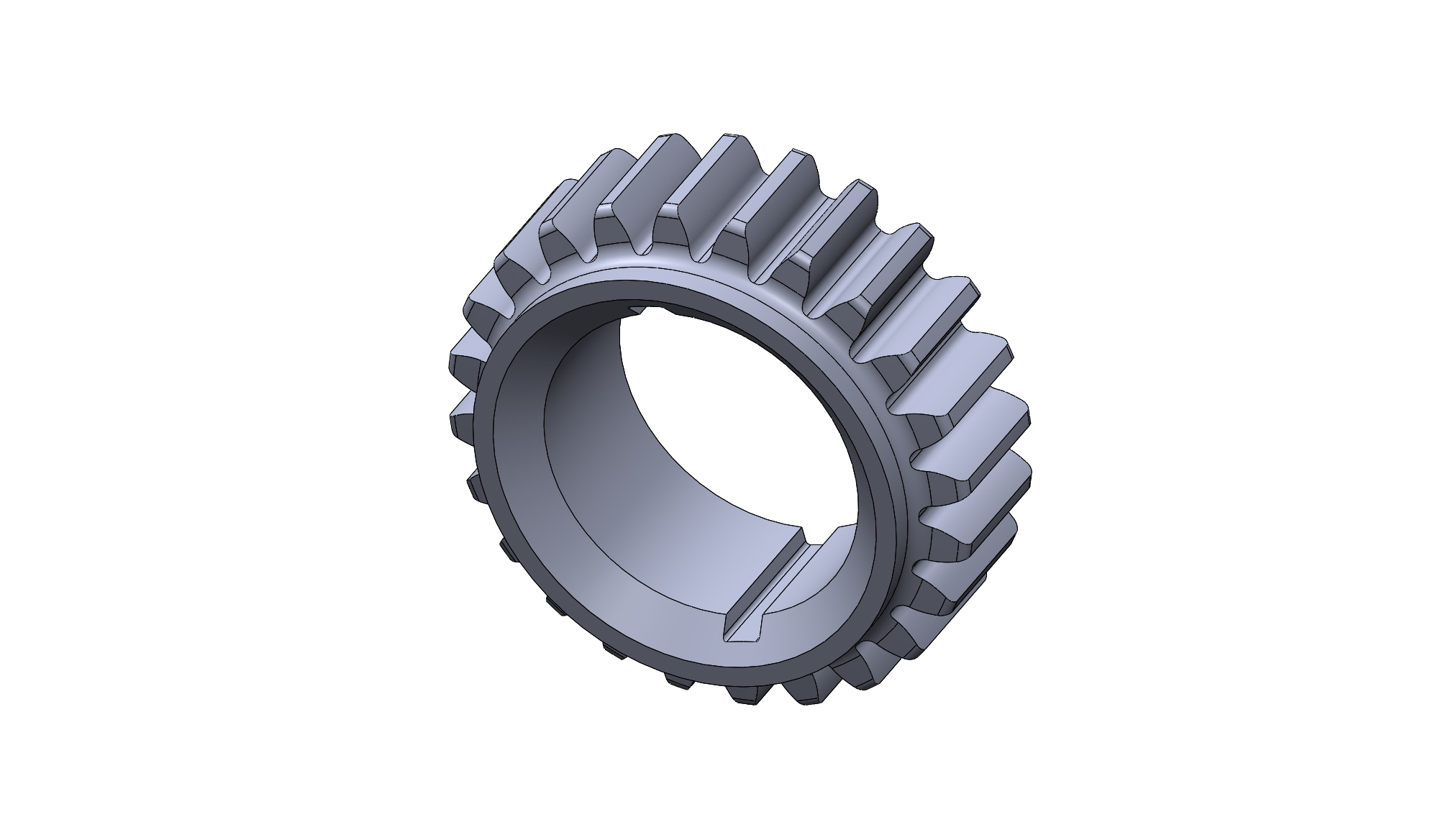

ENGINE 426/392/440 CHRYSLER CRANKSHAFT STANDARD WIDTH STANDARD PROFILE STANDARD 175.43 250521-03 This standard 426 crank gear has two 3/16" keyways 180 degrees apart.

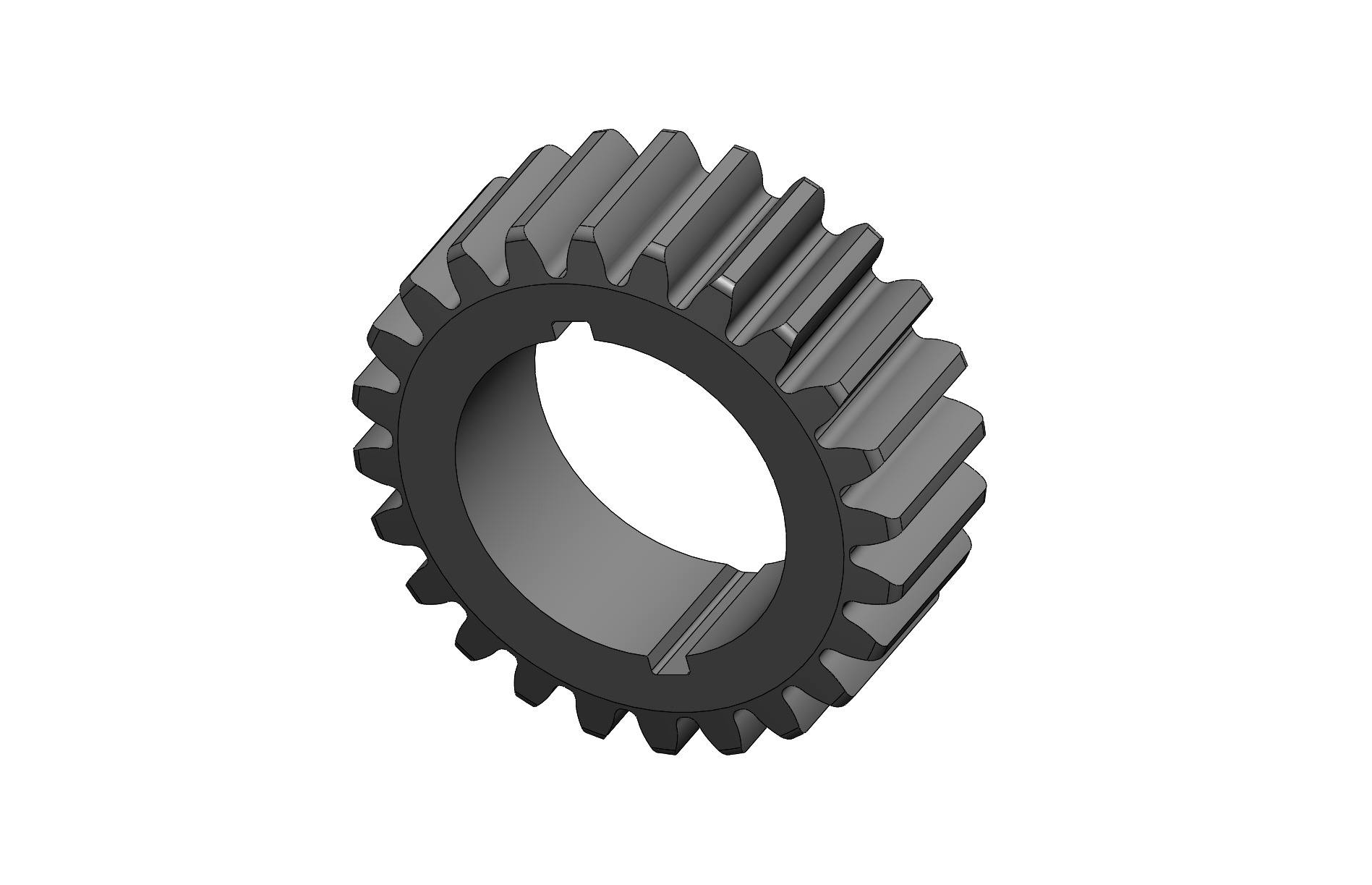

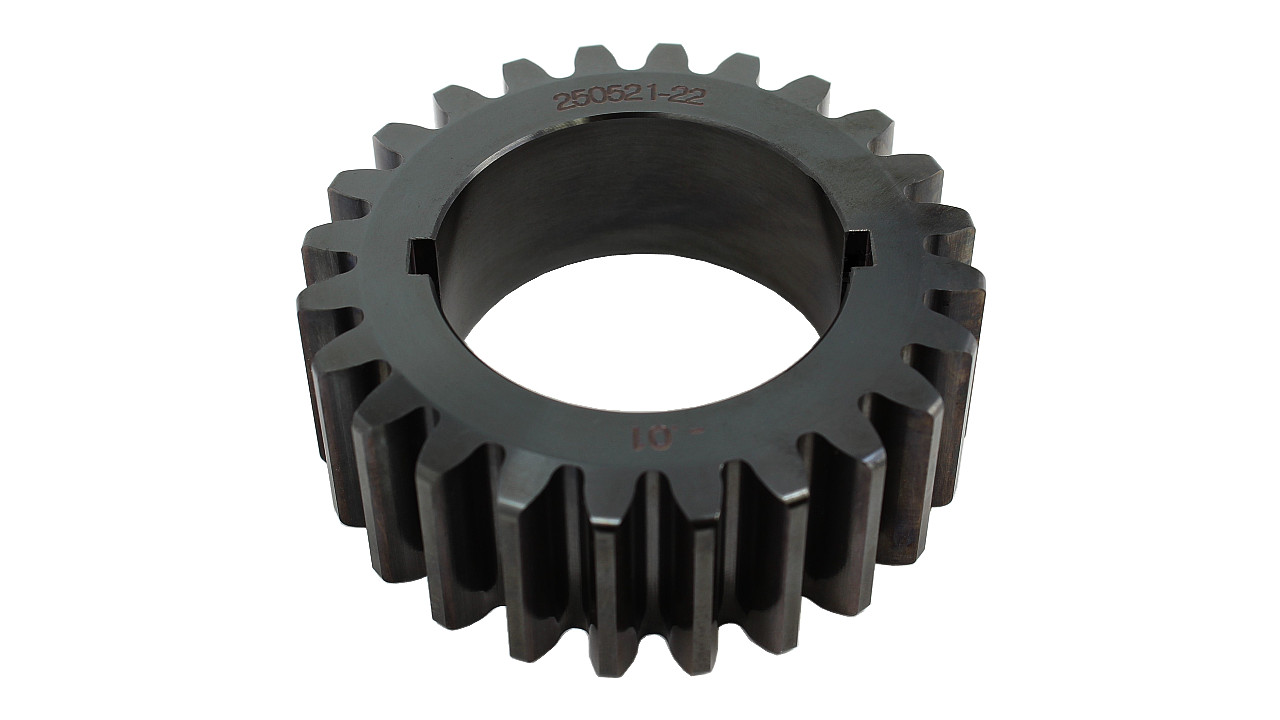

ENGINE 426/392/440 CHRYSLER CRANKSHAFT STANDARD WIDTH WIDE PROFILE 0.01" UNDER 135.51 250521-22 This 426 crank gear has two 3/16" keyways 180 degrees apart. The overall width is the same as our standard 426 crank gear, the wide designation means the teeth run the full width of the gear without the .20" step from #250521-03. The tooth profile has bee cut .01" undersize.

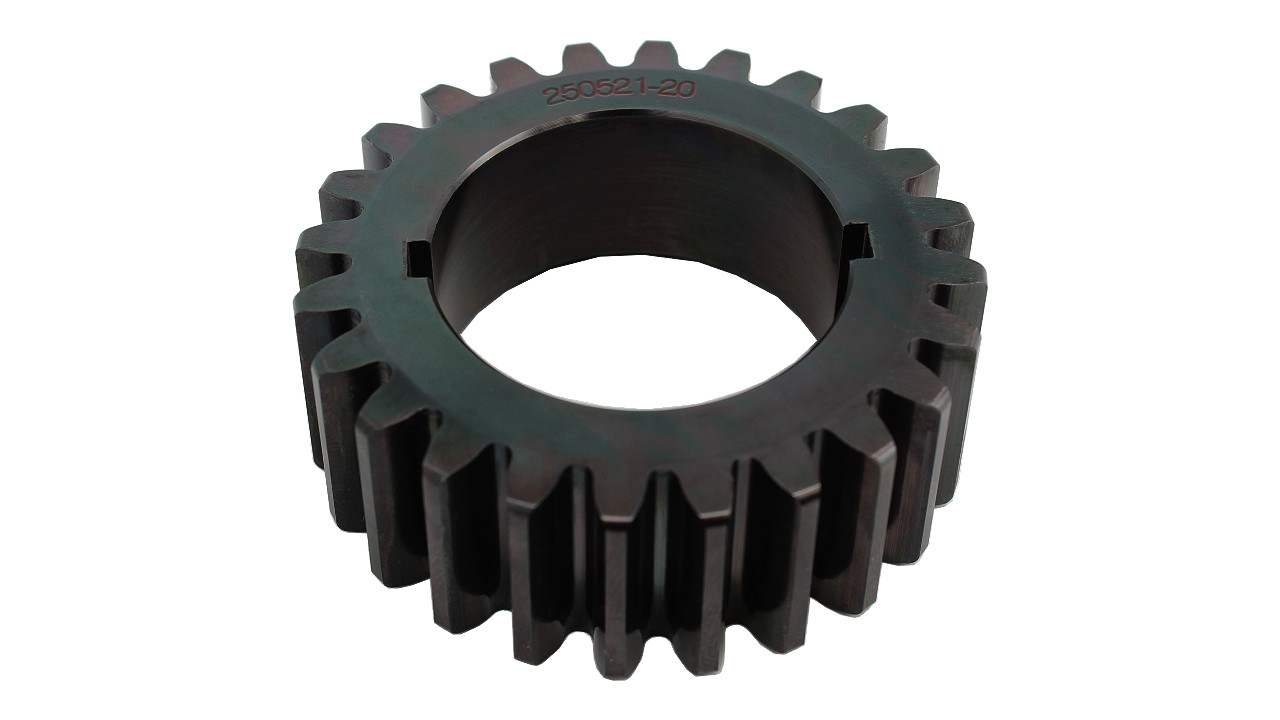

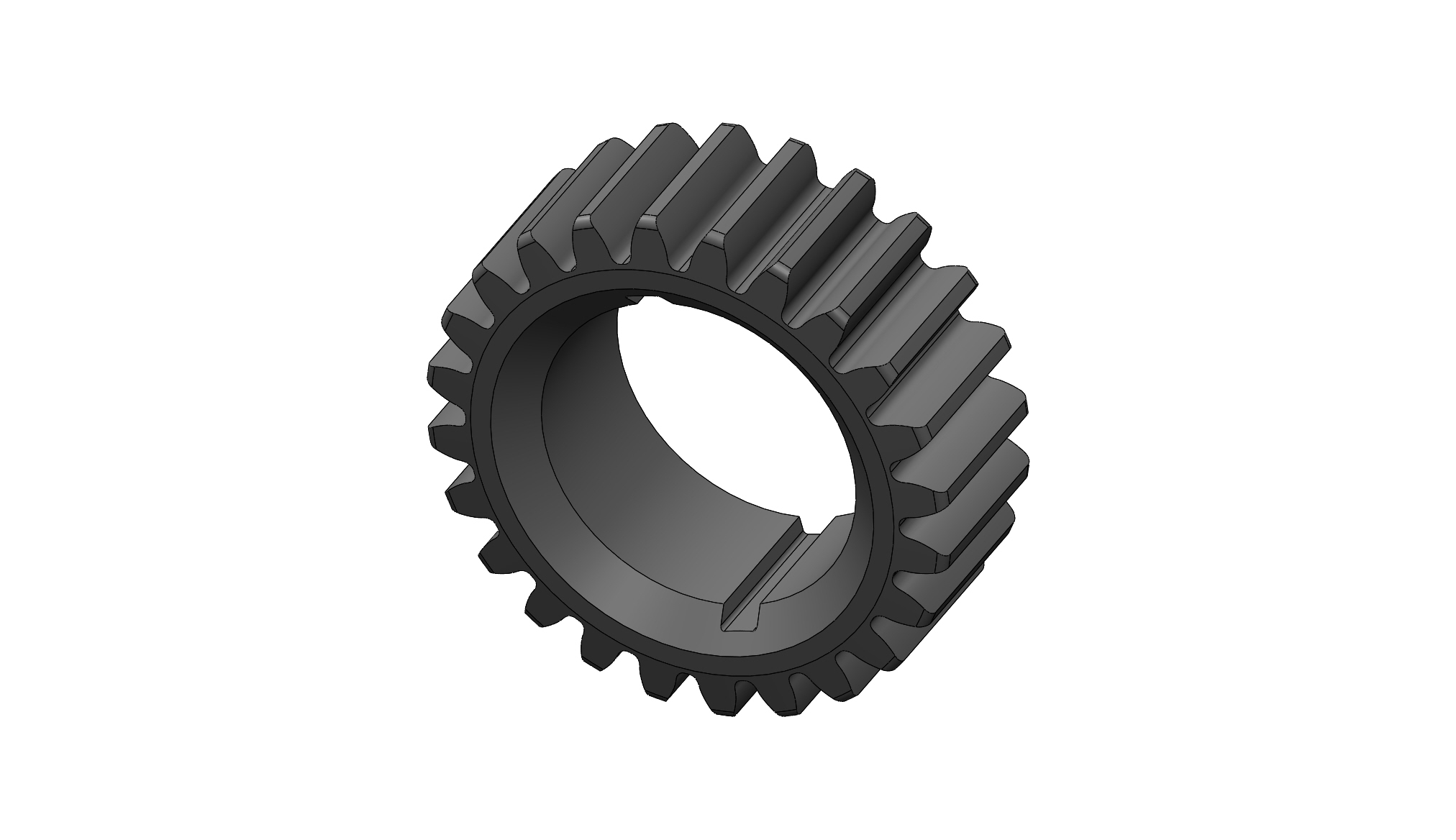

ENGINE 426/392/440 CHRYSLER CRANKSHAFT STANDARD WIDTH WIDE PROFILE STANDARD 124.27 250521-20 This 426 crank gear has two 3/16" keyways 180 degrees apart. The overall width is the same as our standard 426 crank gear, the wide designation means the teeth run the full width of the gear without the .20" step from #250521-03.

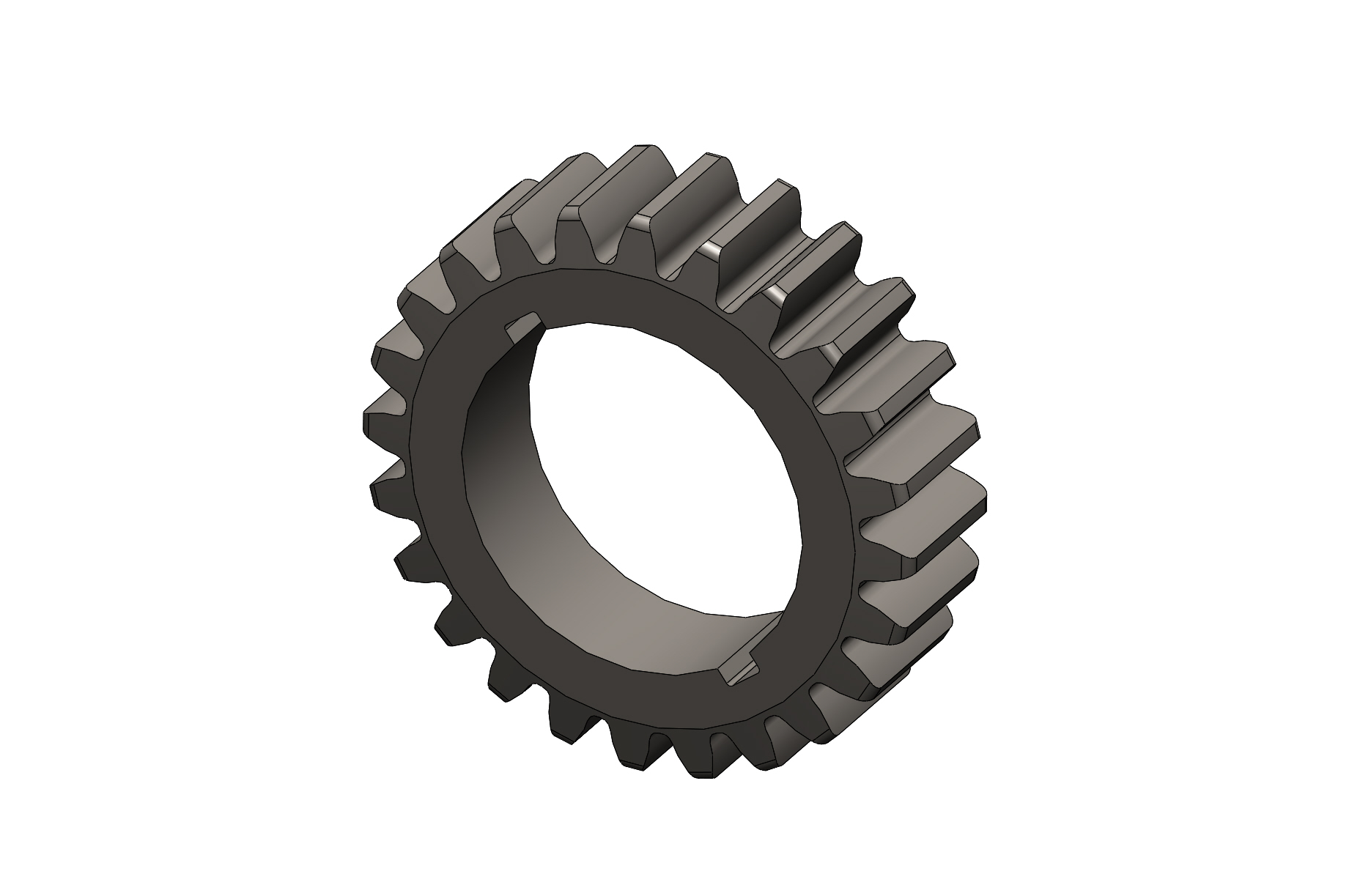

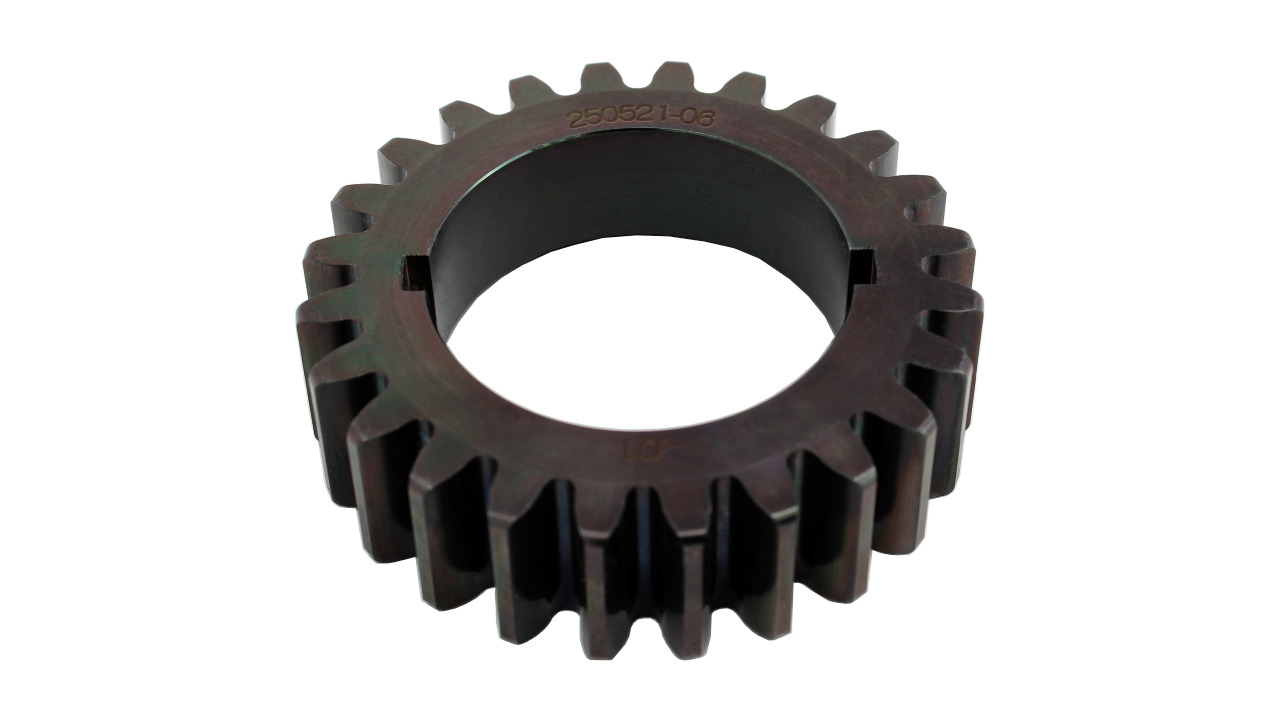

ENGINE BBC CRANKSHAFT STANDARD WIDTH STANDARD PROFILE 0.01" UNDER 146.19 250521-06 This BBC crank gear has two 3/16" keyways 180 degrees apart. The tooth profile has been cut .01" undersize.

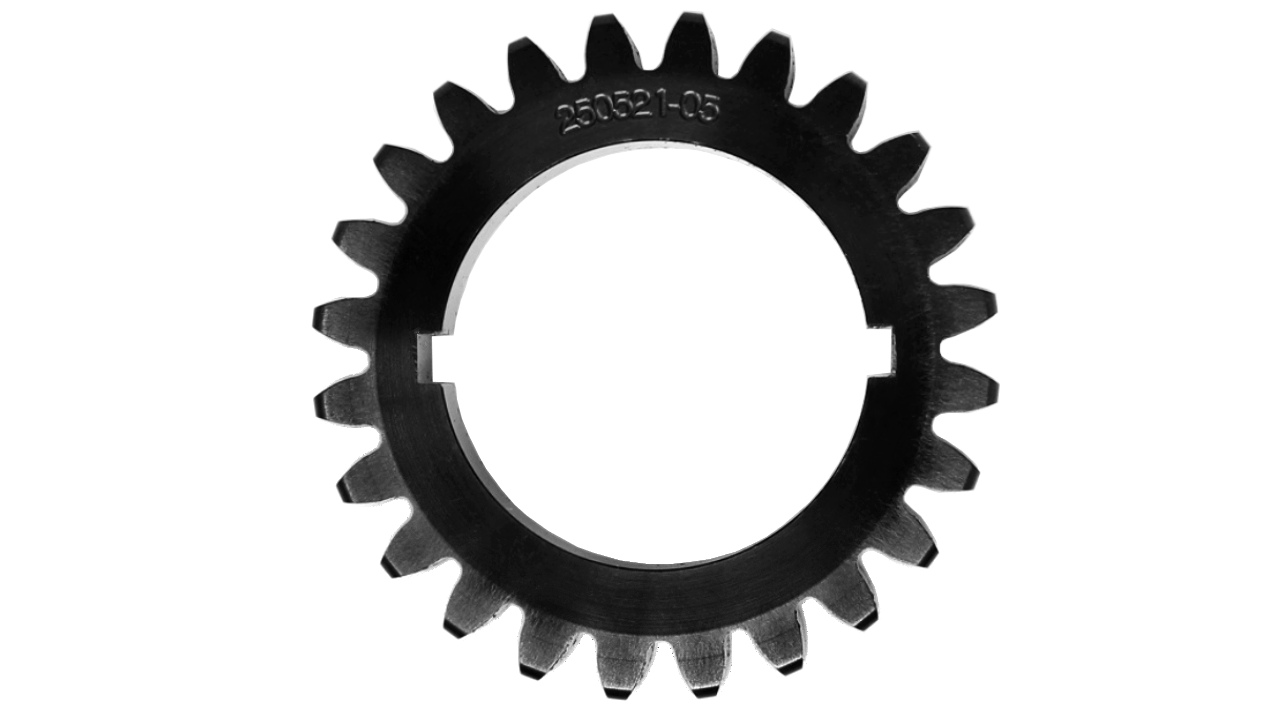

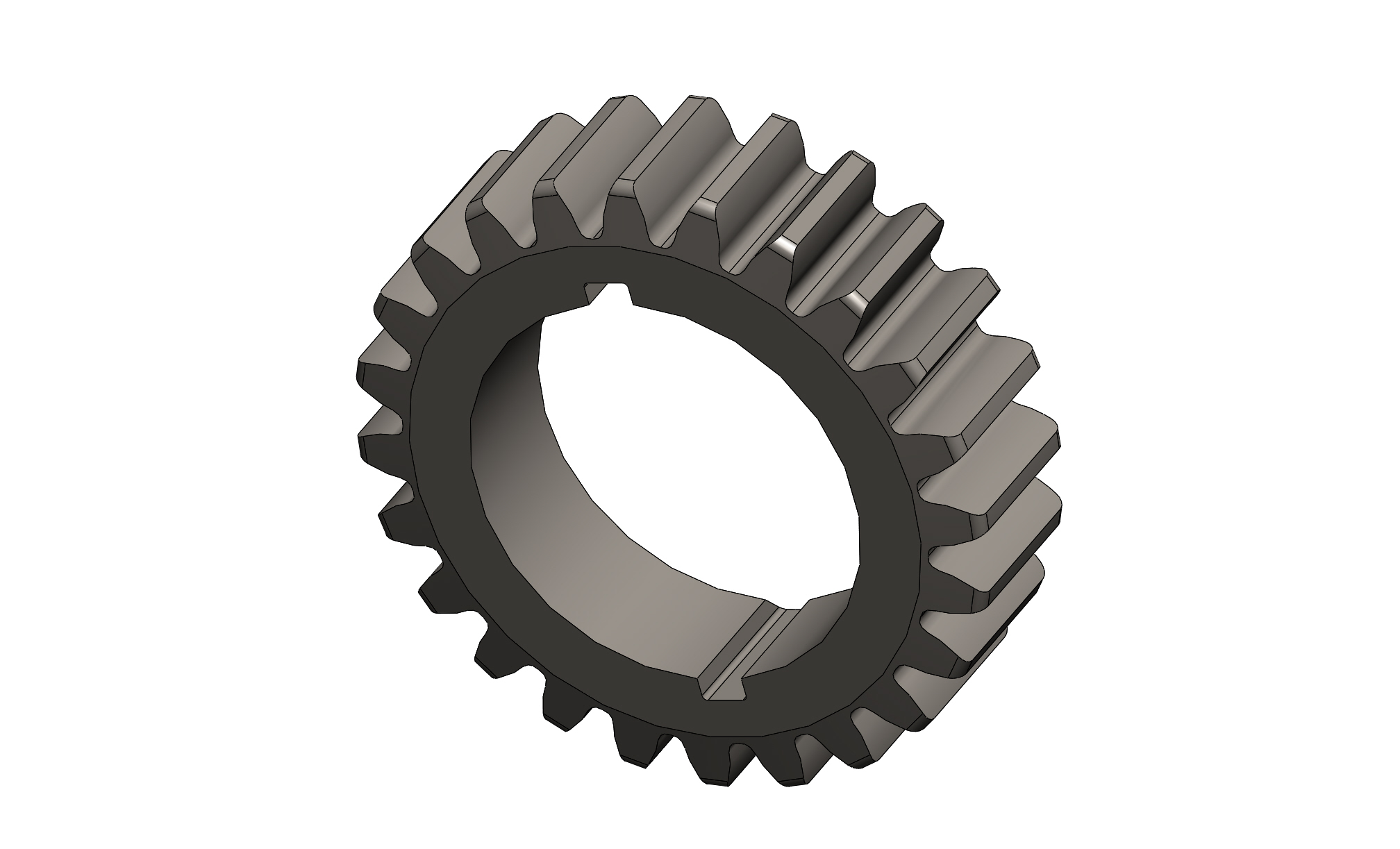

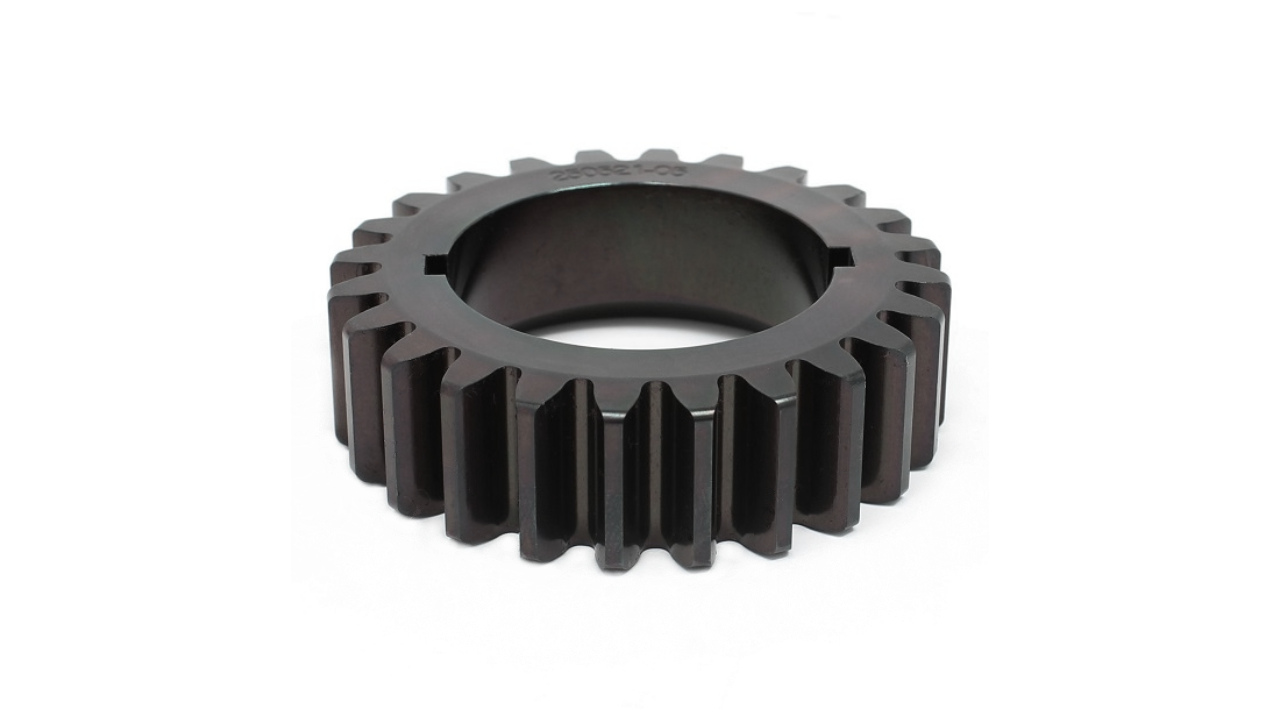

ENGINE BBC CRANKSHAFT STANDARD WIDTH STANDARD PROFILE STANDARD 129.9 250521-05 This standard BBC crank gear has two 3/16" keyways 180 degrees apart.

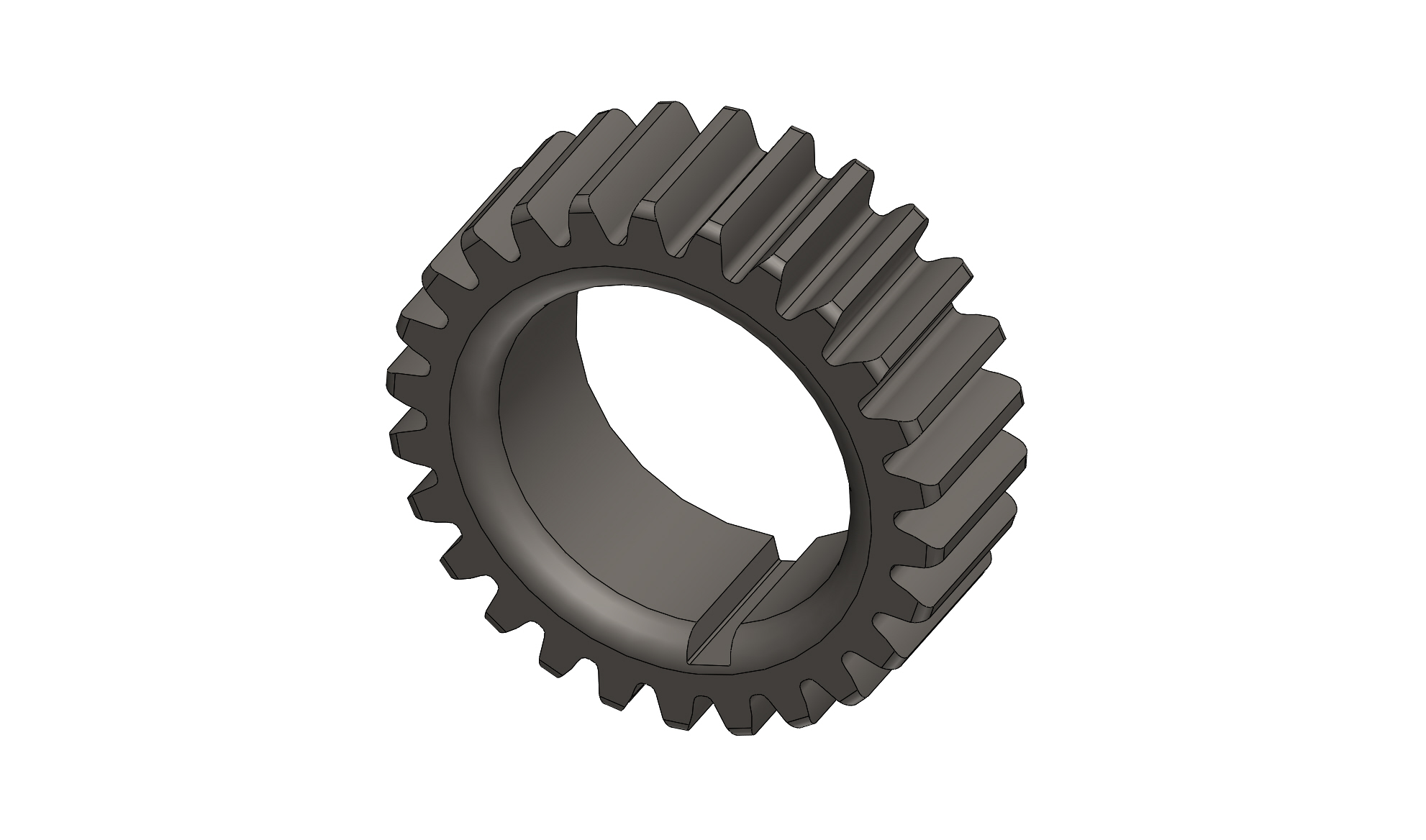

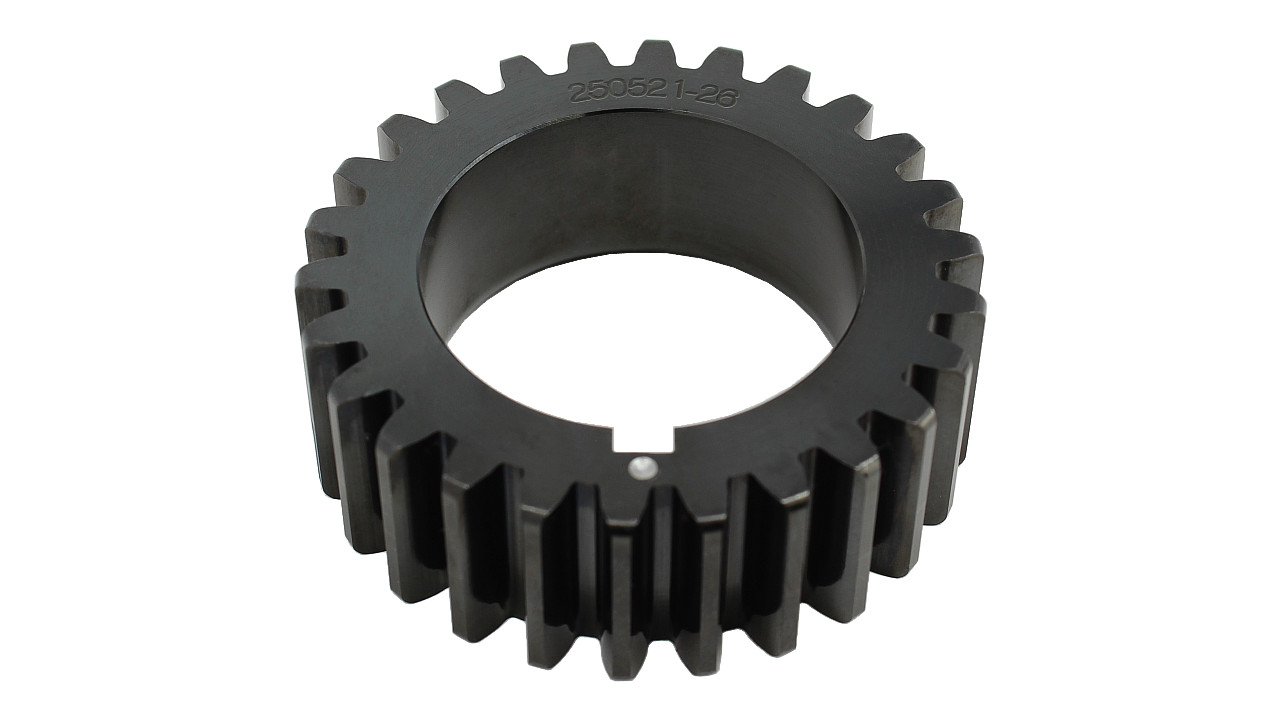

ENGINE LS CRANKSHAFT STANDARD WIDTH STANDARD PROFILE STANDARD 146 250521-26 This standard LS crank gear has one 3/16" keyway.

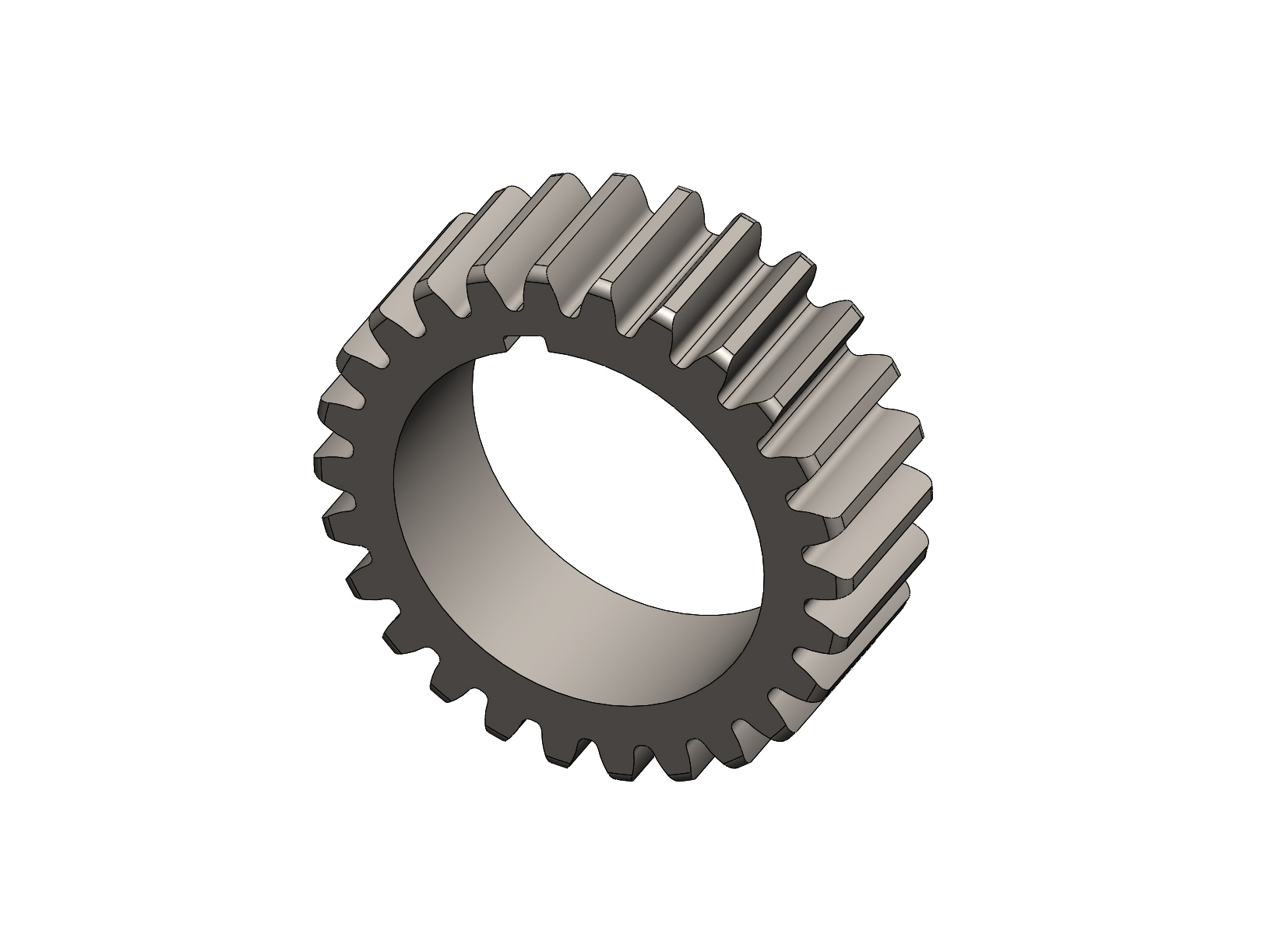

ENGINE SBC CRANKSHAFT BBC BORE WIDTH STANDARD PROFILE 0.01" UNDER 150.15 250521-11 This SBC crank gear has one 3/16" keyway and is made to fit a small block crank with a big block snout. The tooth profile has been cut .01" undersize.

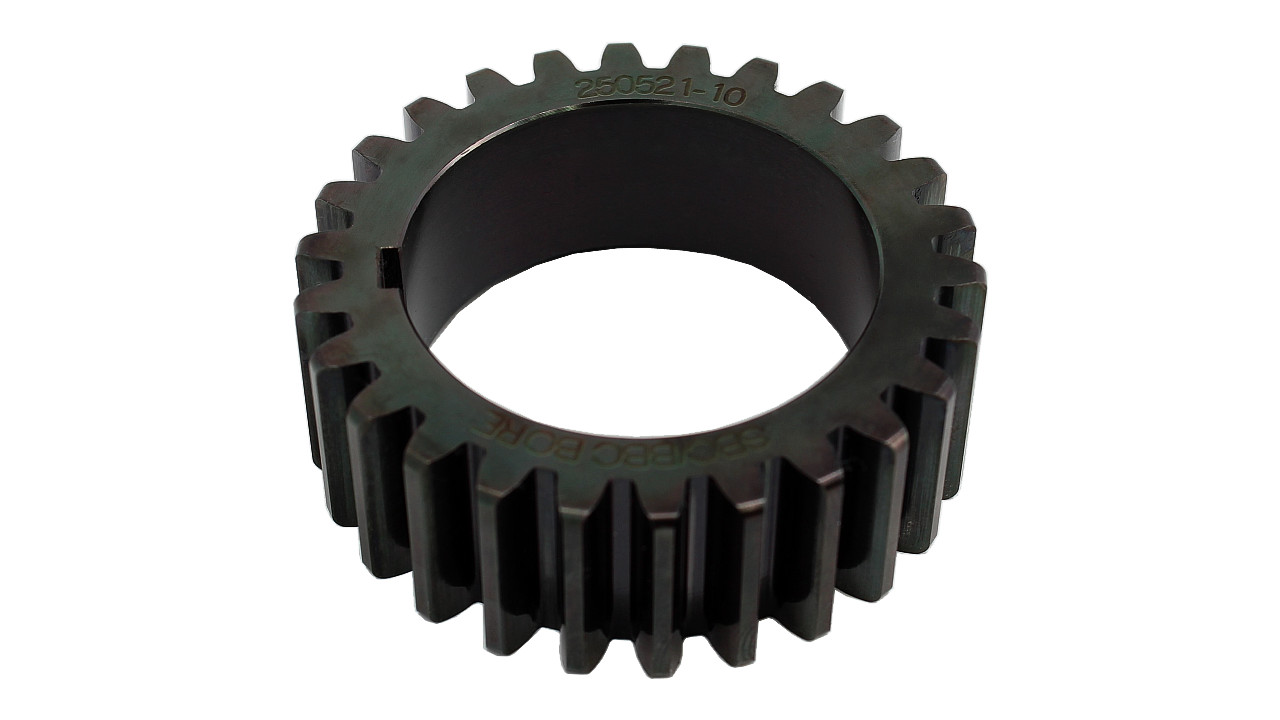

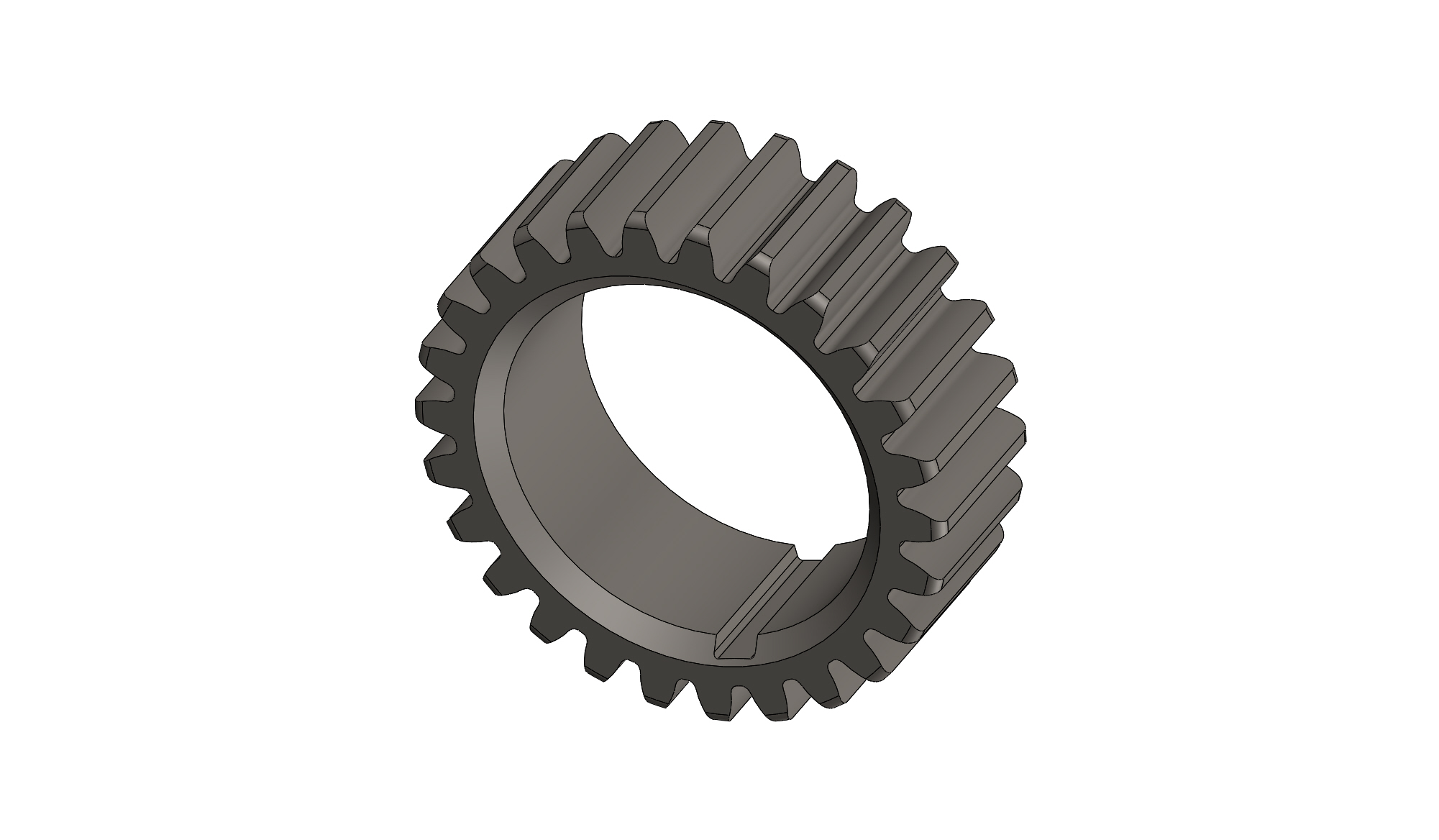

ENGINE SBC CRANKSHAFT BBC BORE WIDTH STANDARD PROFILE STANDARD 129.9 250521-10 This SBC crank gear has one 3/16" keyway and is made to fit a small block crank with a big block snout.

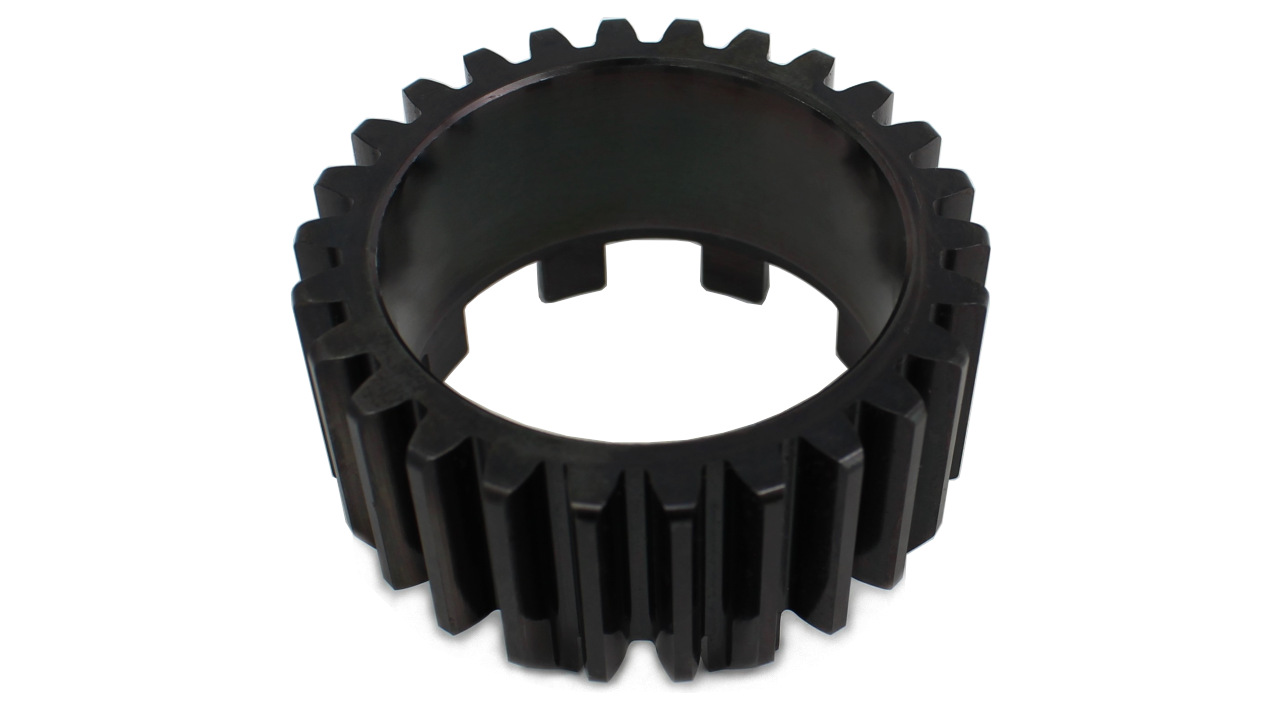

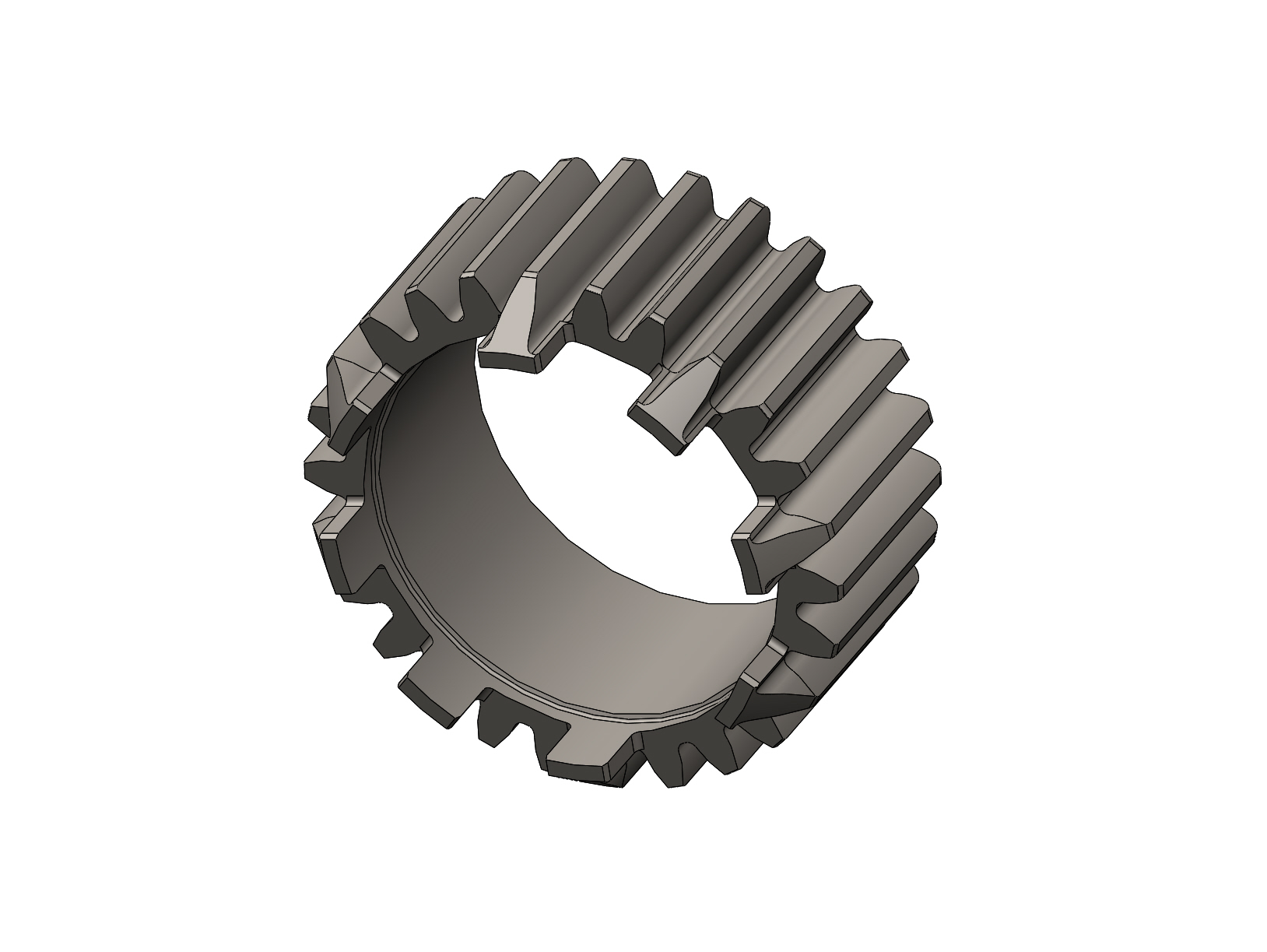

ENGINE SBC CRANKSHAFT RCD SPLINE WIDTH STANDARD PROFILE STANDARD 146.76 250521-27 This SBC crank gear is made to fit a small block crank with a big block snout and a RCD spline.

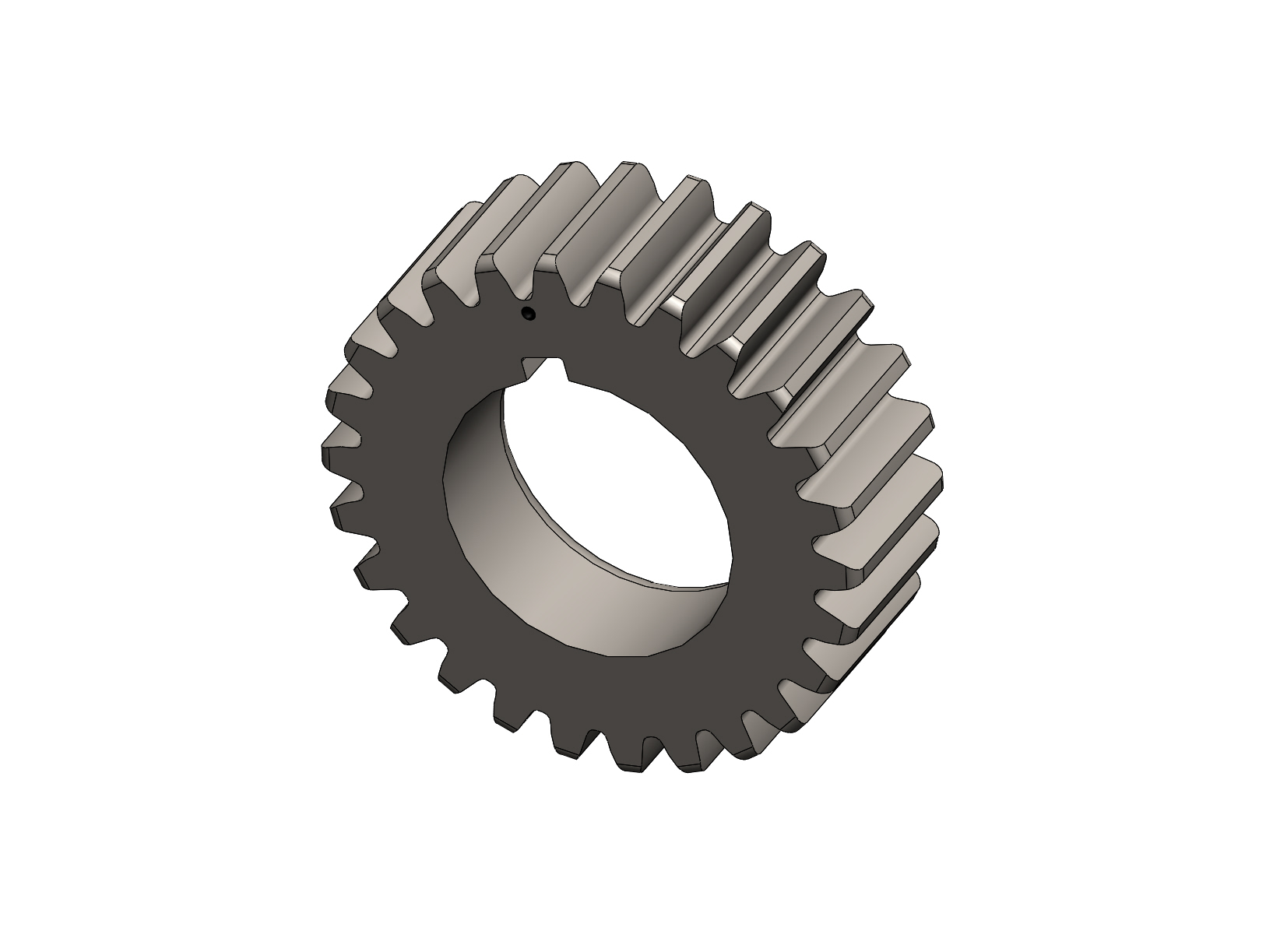

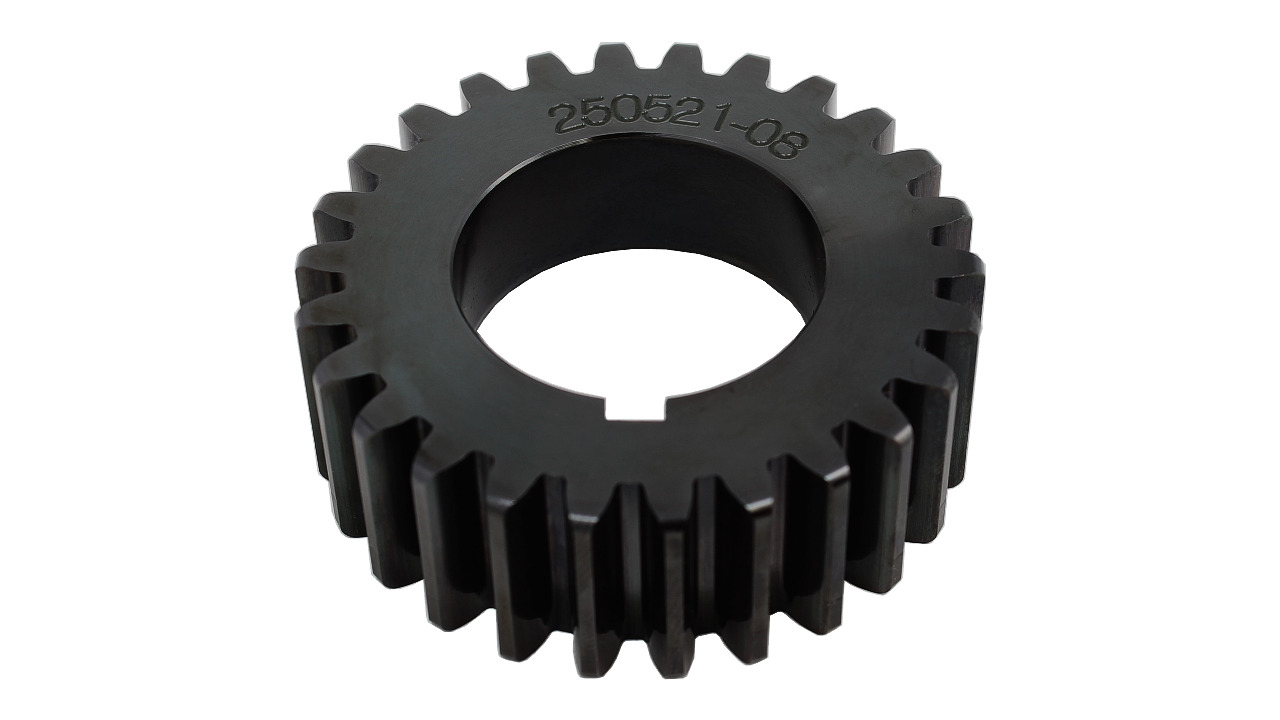

ENGINE SBC CRANKSHAFT STANDARD WIDTH STANDARD PROFILE 0.01" UNDER 129.33 250521-08 This SBC crank gear has one 3/16" keyway. The tooth profile has been cut .01" undersize.

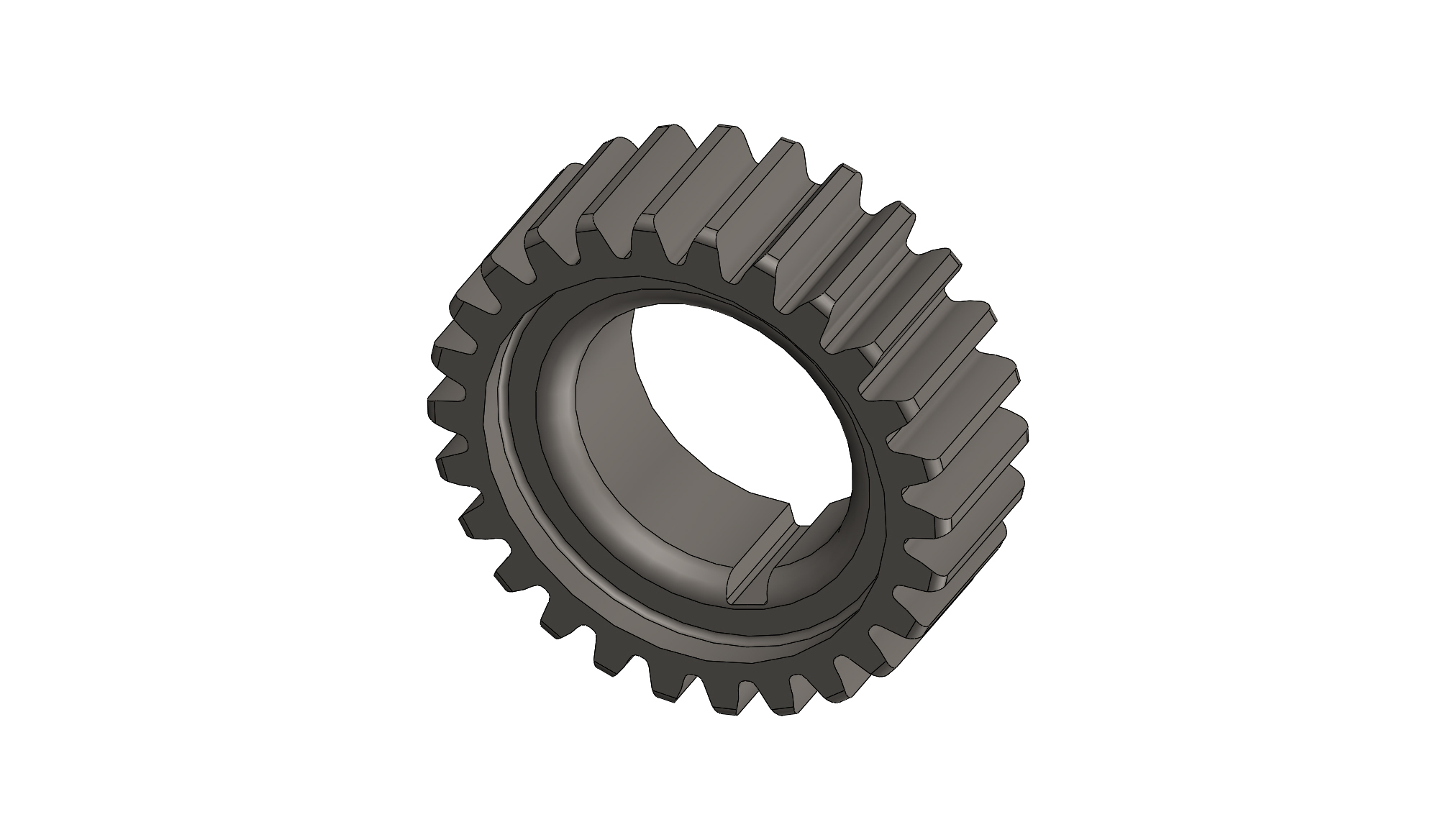

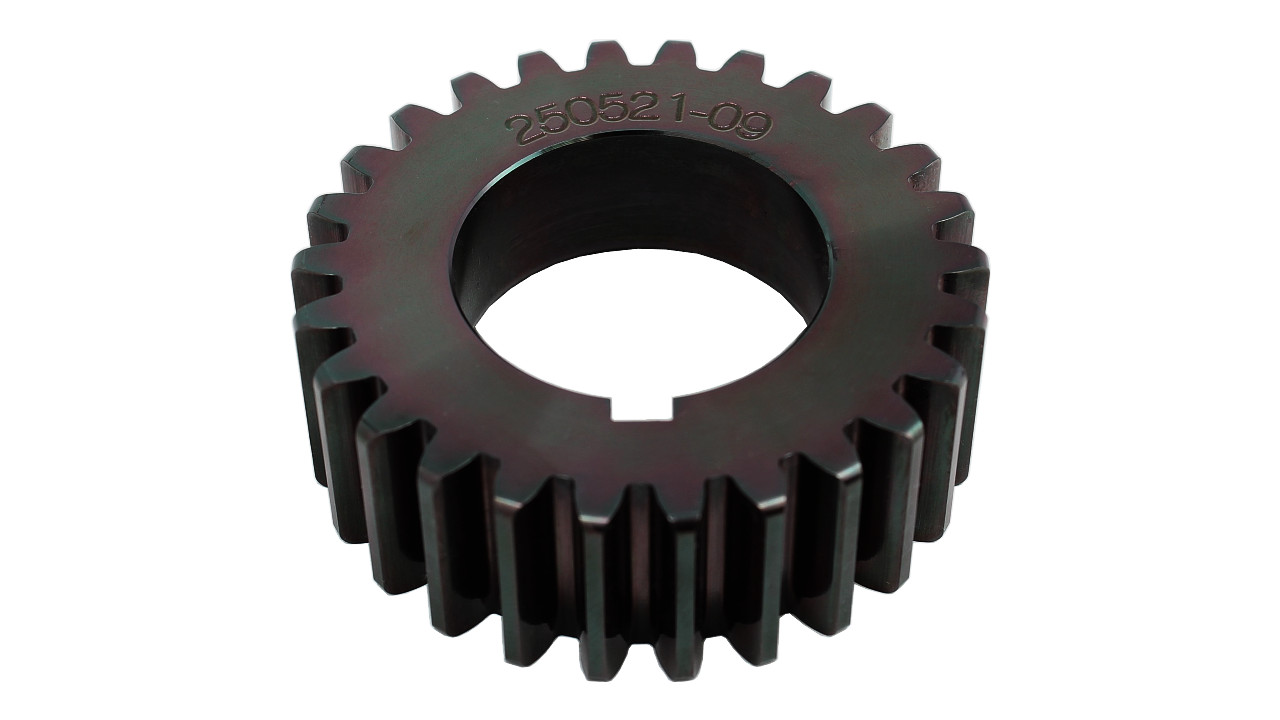

ENGINE SBC CRANKSHAFT STANDARD WIDTH STANDARD PROFILE STANDARD 129.9 250521-09 This standard SBC crank gear has one 3/16" keyway.

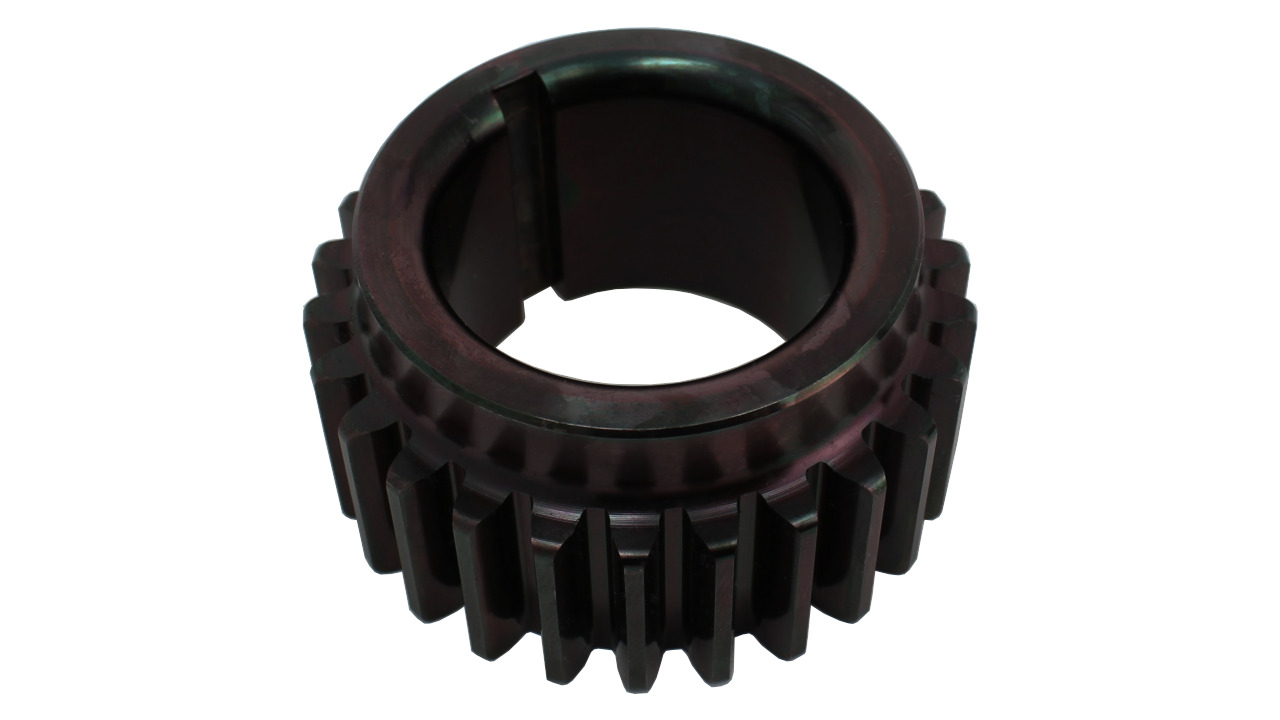

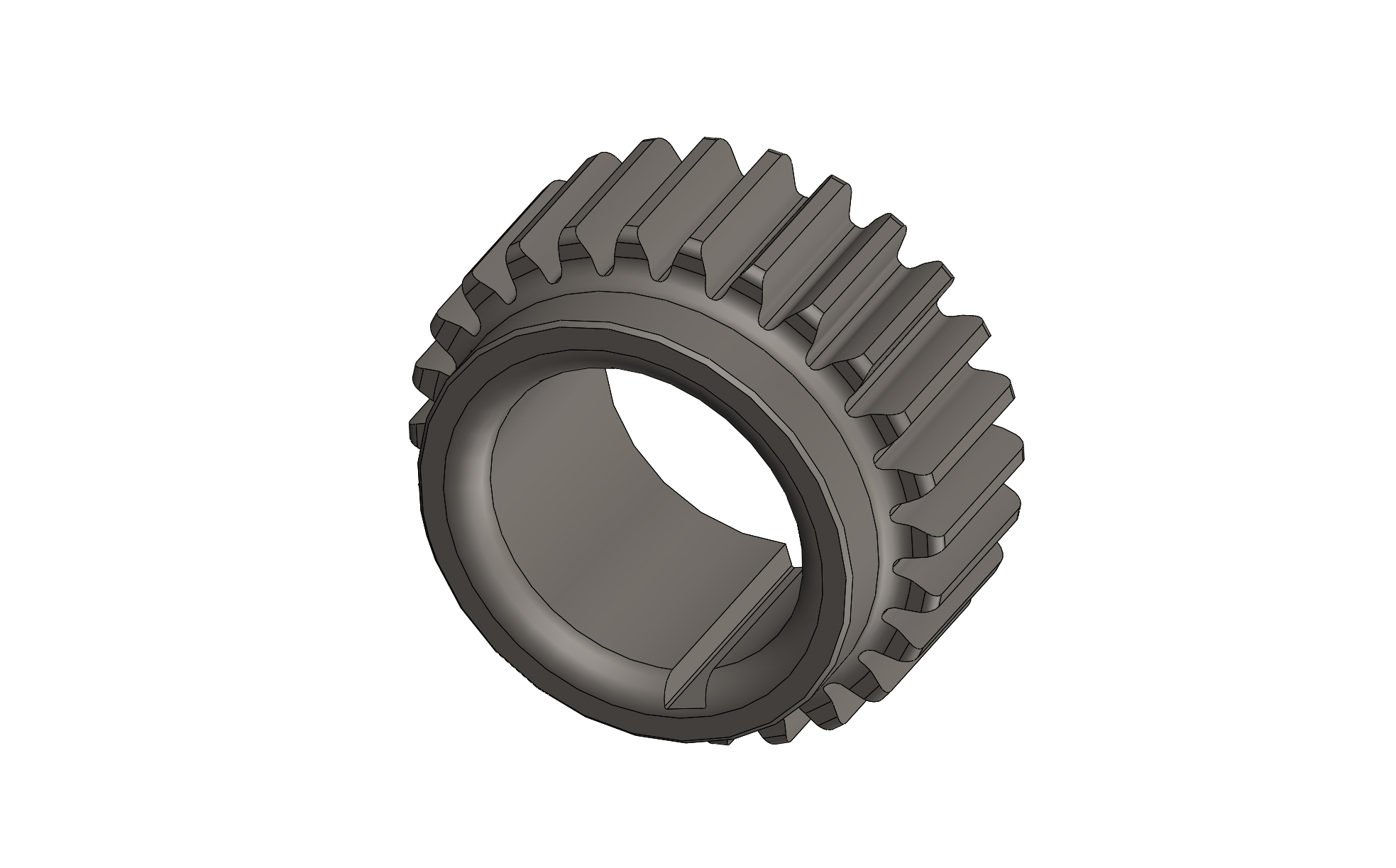

ENGINE SBF CRANKSHAFT STANDARD WIDTH STANDARD PROFILE STANDARD 182.5 250521-01 This standard SBF crank gear has one 3/16" keyway.

CRANK GEARS

RCD crank gears are available for standard keyed and splined crankshafts. Has your engine been line bored? Most crank gears are also offered .01" undersize to achieve the proper backlash on reconditioned blocks.
