SKU:


OUTBOARD SUPPORT

NO YES

PULLEY WIDTH

3.1" 3.4" ANY

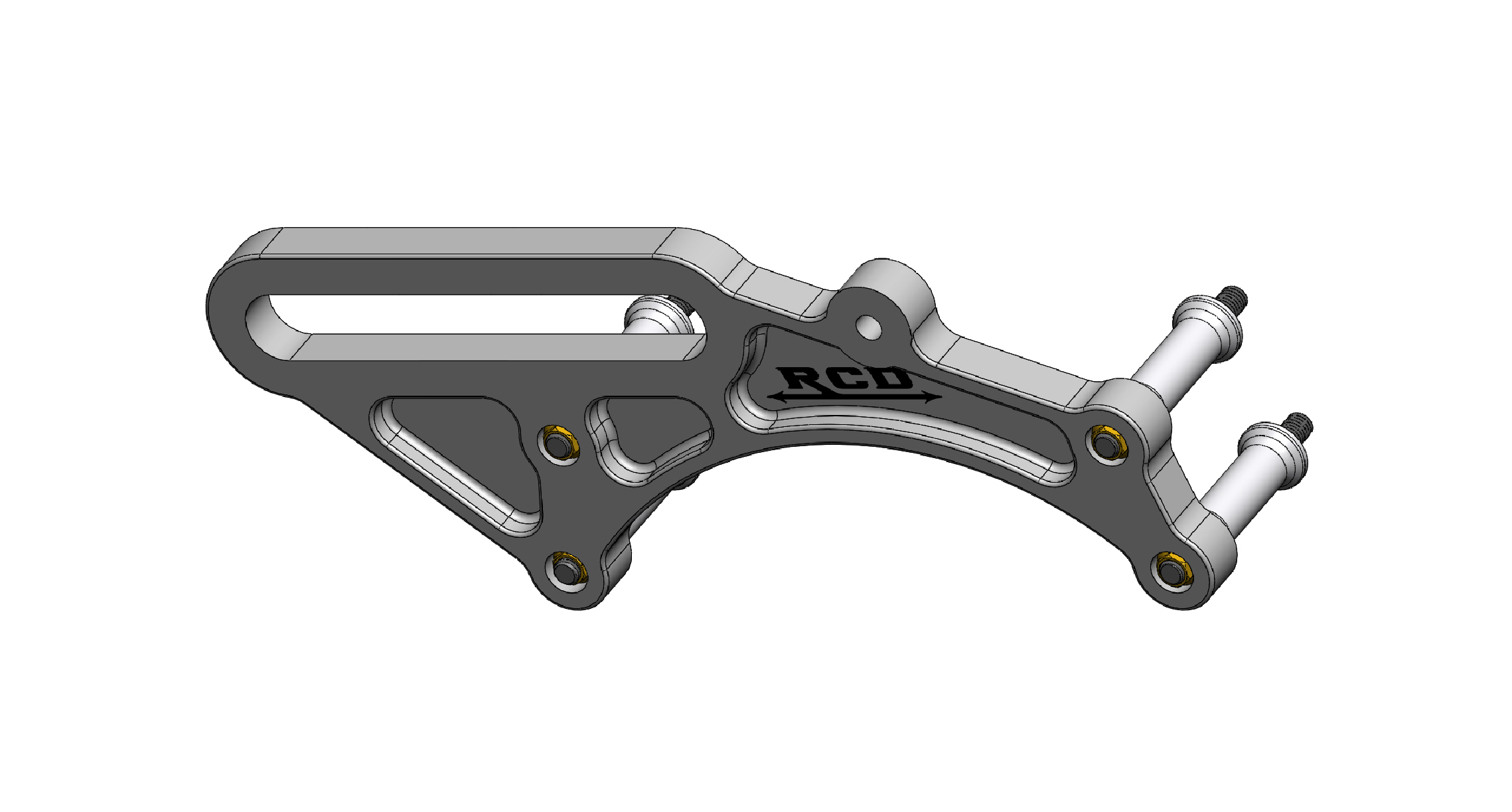

ENGINE BLOCK 392/417 DONOVAN OUTBOARD SUPPORT NO PULLEY WIDTH ANY SLOT LONG 196.14 156206-0060 This kit fits a 392/417 Donovan engine block, it does not have an outboard support. The idler plate has a long horizontal slot length.

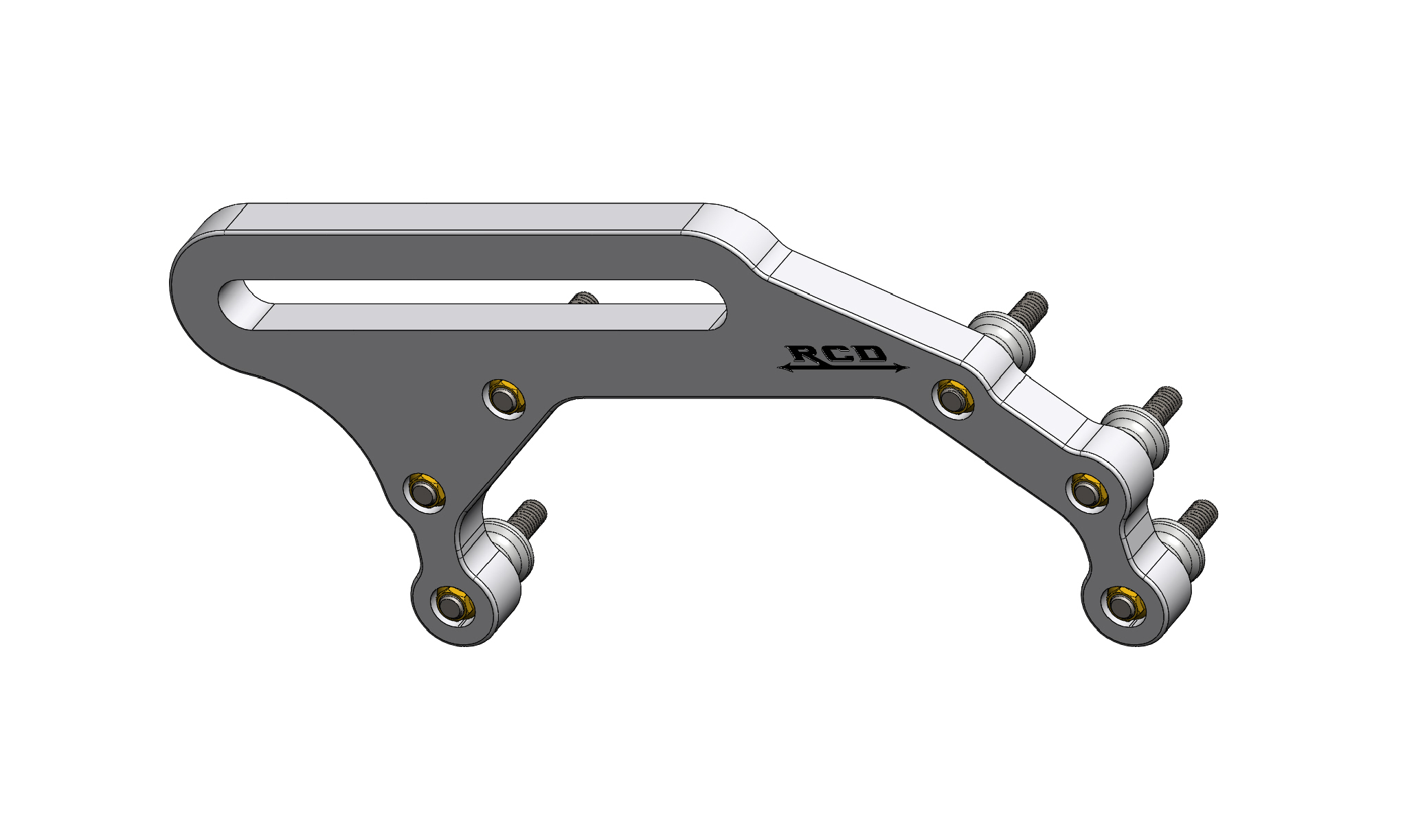

ENGINE BLOCK 426 CHRYSLER OUTBOARD SUPPORT NO PULLEY WIDTH ANY SLOT LONG 202.42 156206-0004 This kit fits a 426 Chrysler engine block, it does not have an outboard support. The idler plate has a long horizontal slot length.

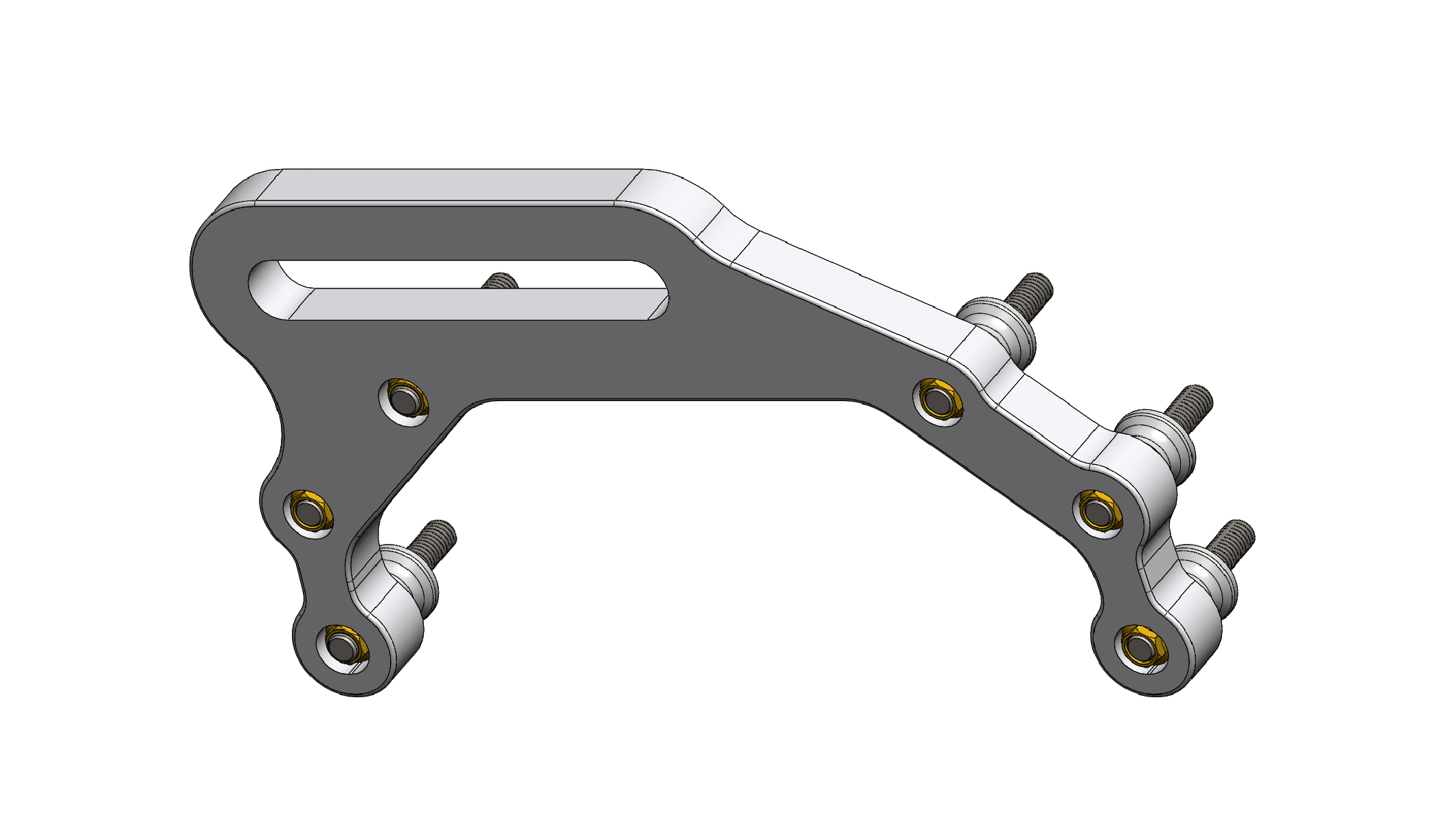

ENGINE BLOCK 426 CHRYSLER OUTBOARD SUPPORT NO PULLEY WIDTH ANY SLOT SHORT 202.42 156206-0003 This kit fits a 426 Chrysler engine block, it does not have an outboard support. The idler plate has a short horizontal slot length.

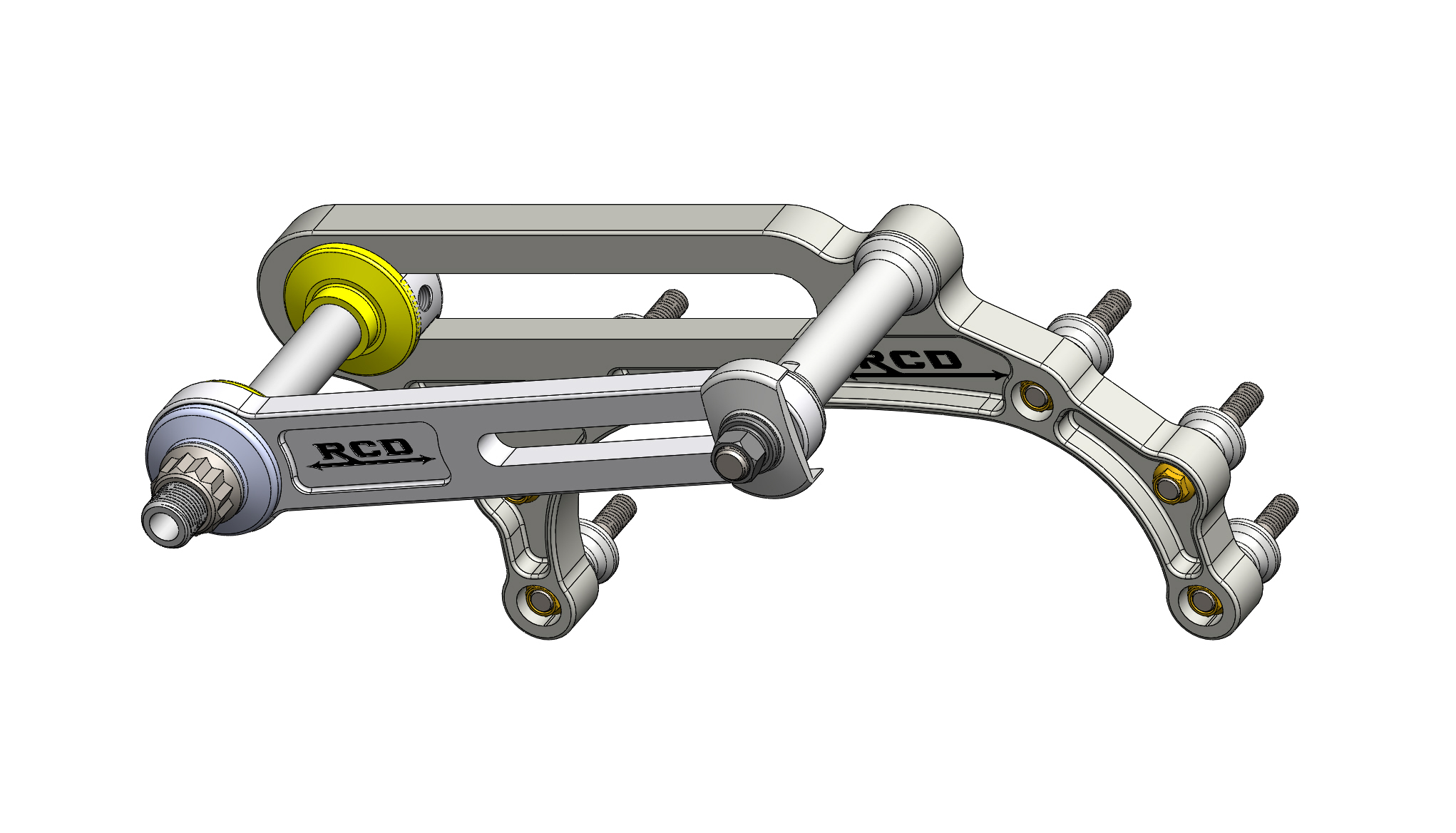

ENGINE BLOCK 426 CHRYSLER OUTBOARD SUPPORT YES PULLEY WIDTH 3.1" SLOT LONG 234.4 156206-0005 This kit fits a 426 Chrysler engine block, it has an outboard support set up for a pulley width of 3.1 inches. The idler plate has a long horizontal slot length.

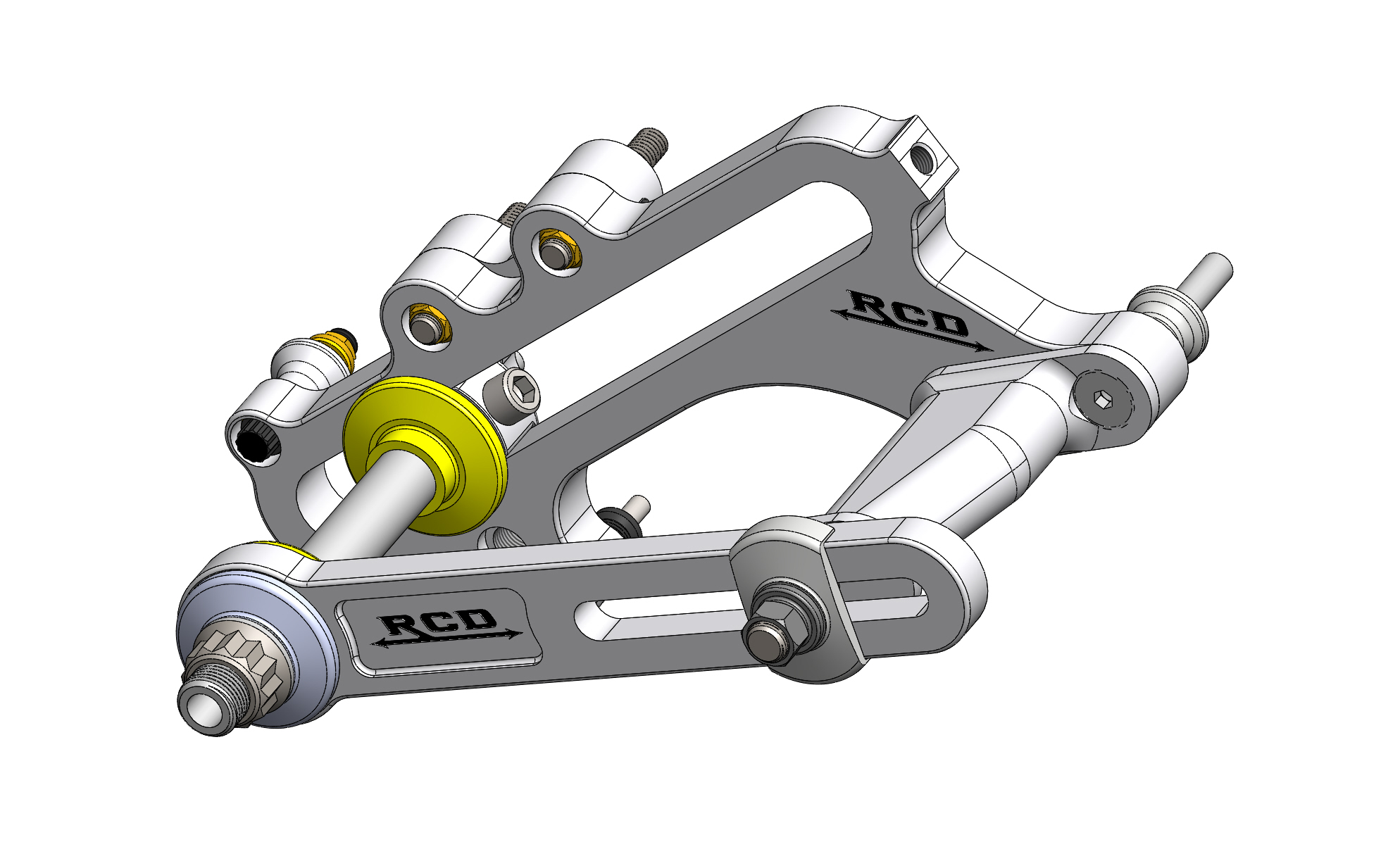

ENGINE BLOCK 426/TFX OUTBOARD SUPPORT YES PULLEY WIDTH 3.1" SLOT ANGLED 903 156206-0020 This kit fits a 426 BAE or TFX engine block, it has an outboard support set up for a pulley width of 3.1". The idler plate has a standard angled slot length.

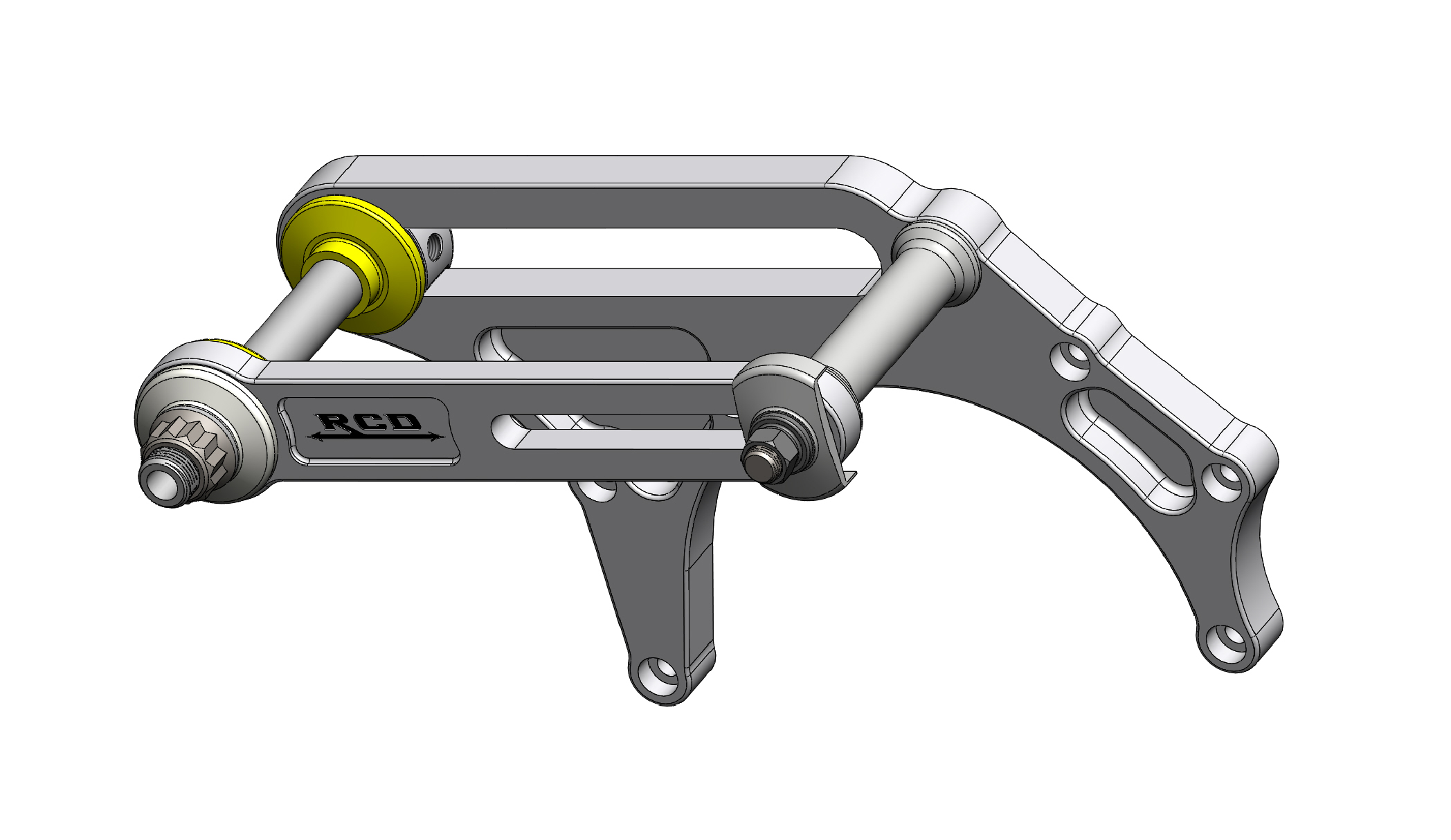

ENGINE BLOCK 429 FORD OUTBOARD SUPPORT YES PULLEY WIDTH 3.1" SLOT STANDARD 392.45 156200-0020 This kit fits a 429 Ford engine block, it has an outboard support set up for a pulley width of 3.1 inches. The idler plate has a standard horizontal slot length.

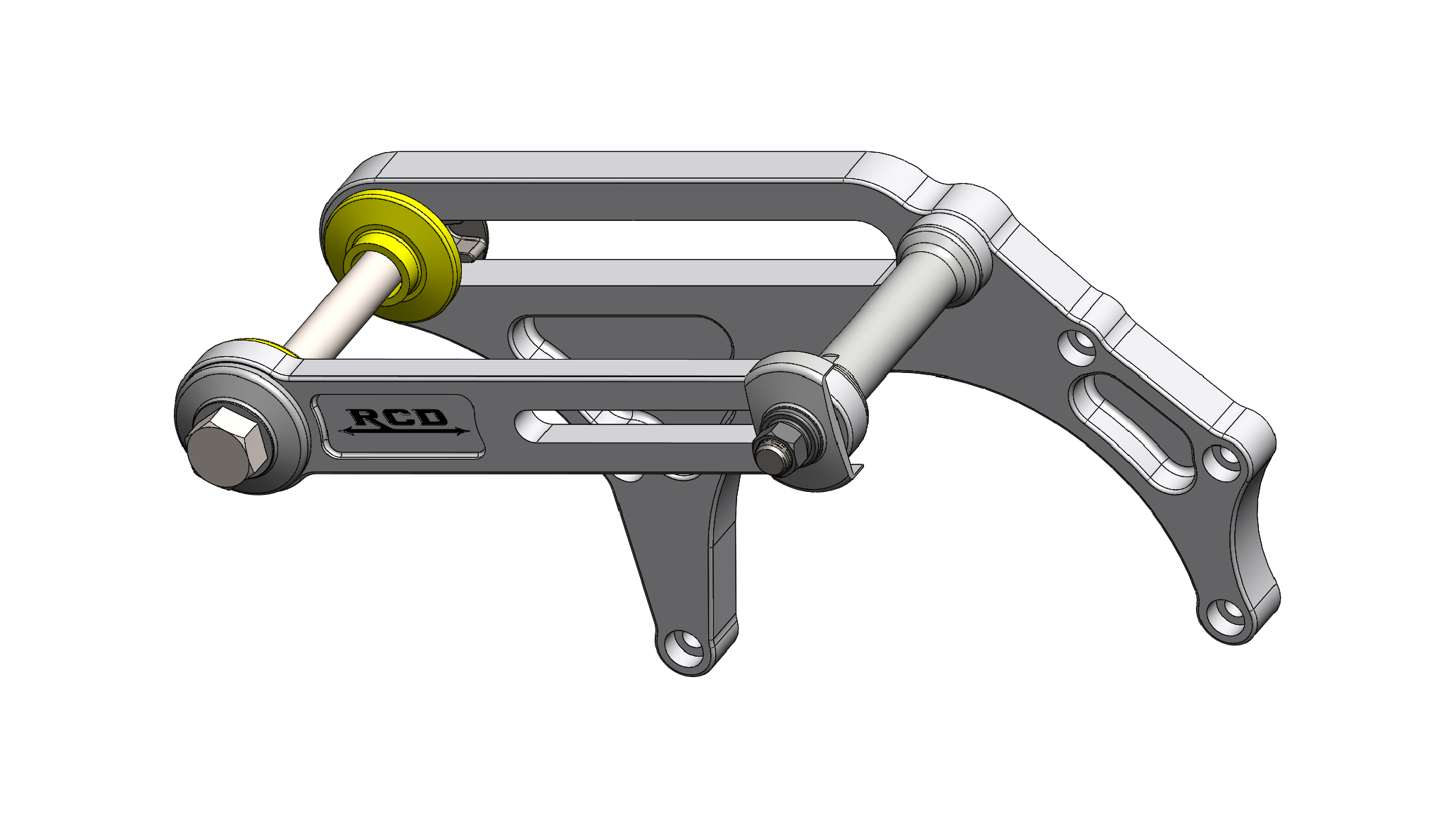

ENGINE BLOCK 429 FORD OUTBOARD SUPPORT YES PULLEY WIDTH 3.4" SLOT STANDARD 398.57 156200-0022 This kit fits a 429 Ford engine block, it has an outboard support set up for a pulley width of 3.4 inches. The idler plate has a standard horizontal slot length.

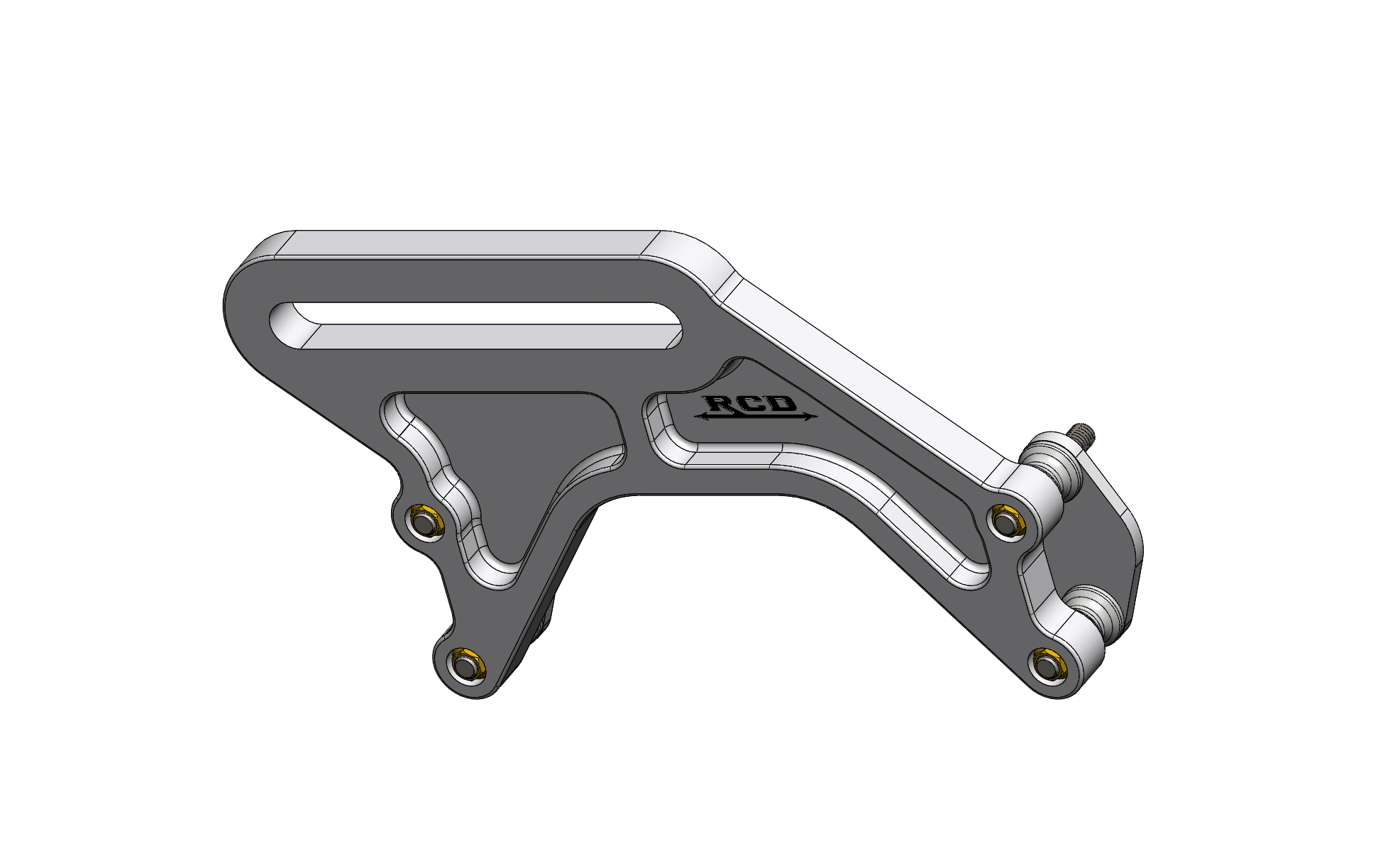

ENGINE BLOCK BBC OUTBOARD SUPPORT NO PULLEY WIDTH ANY SLOT STANDARD 237.37 156206-0018 This kit fits a BBC engine block, it does not have an outboard support. The idler plate has a standard horizontal slot length.

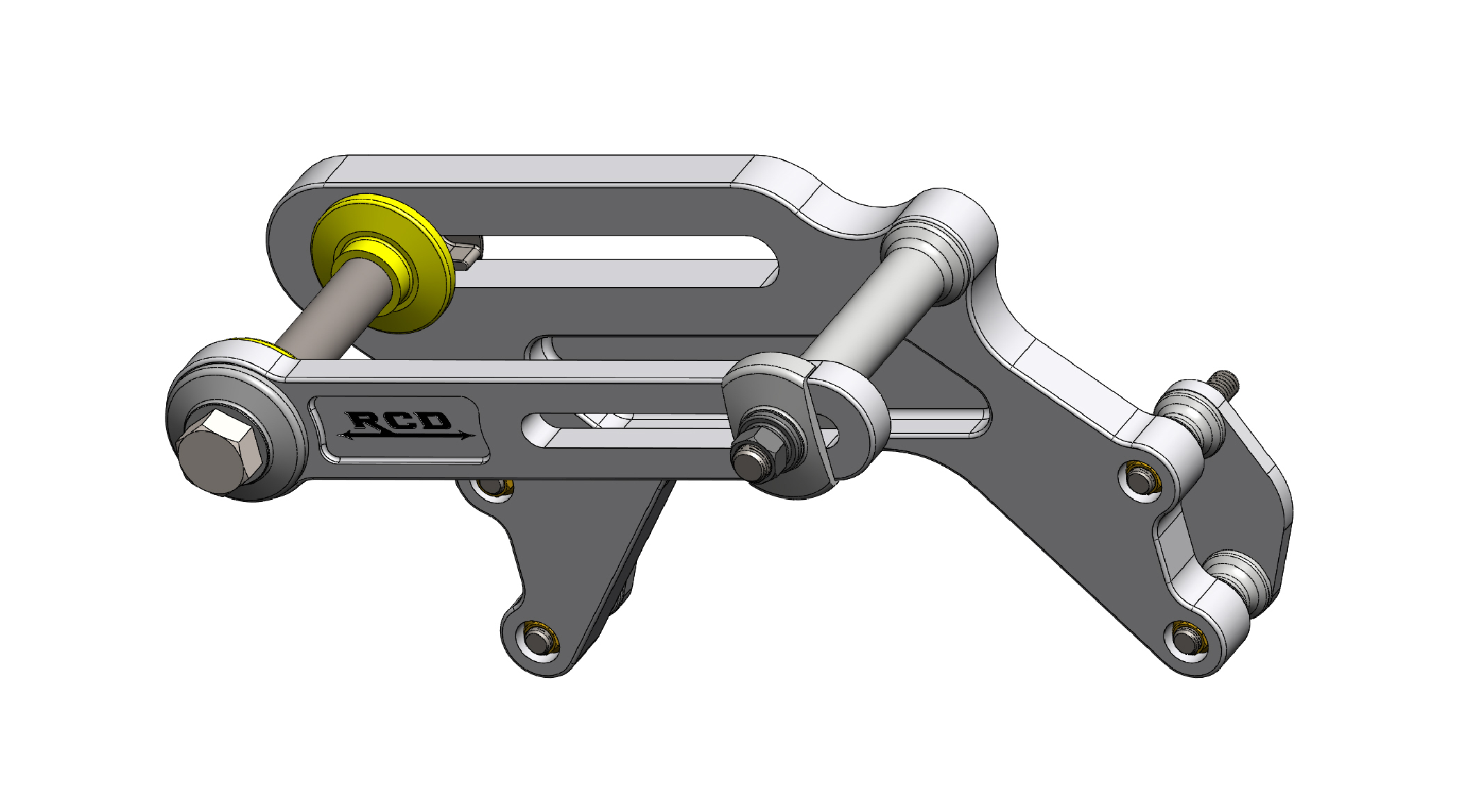

ENGINE BLOCK BBC OUTBOARD SUPPORT YES PULLEY WIDTH 3.1" SLOT STANDARD 451.45 156200-0010 This kit fits a BBC engine block, it has an outboard support set up for a pulley width of 3.1 inches. The idler plate has a standard horizontal slot length.

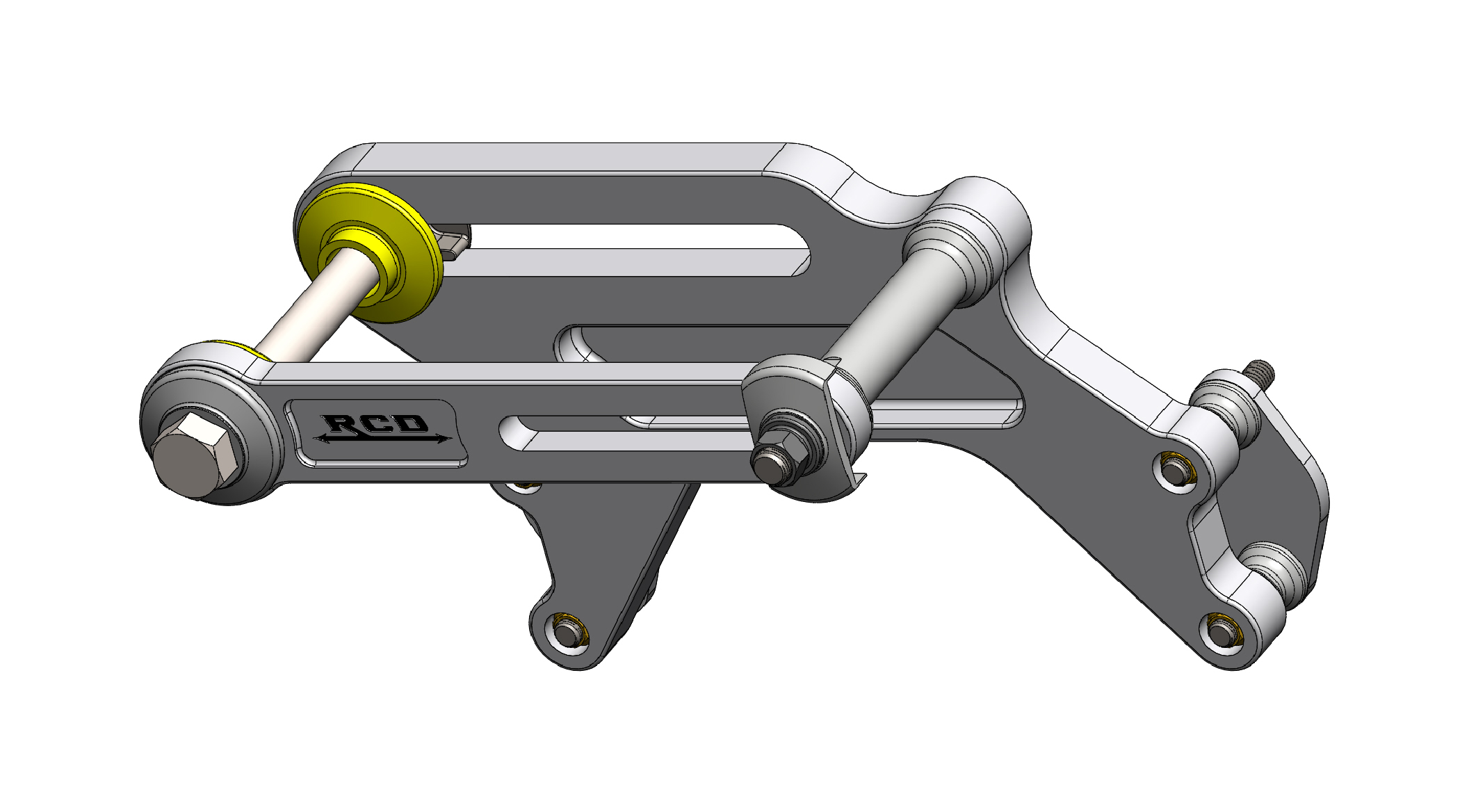

ENGINE BLOCK BBC OUTBOARD SUPPORT YES PULLEY WIDTH 3.4" SLOT STANDARD 480.59 156200-0012 This kit fits a BBC engine block, it has an outboard support set up for a pulley width of 3.4 inches. The idler plate has a standard horizontal slot length.

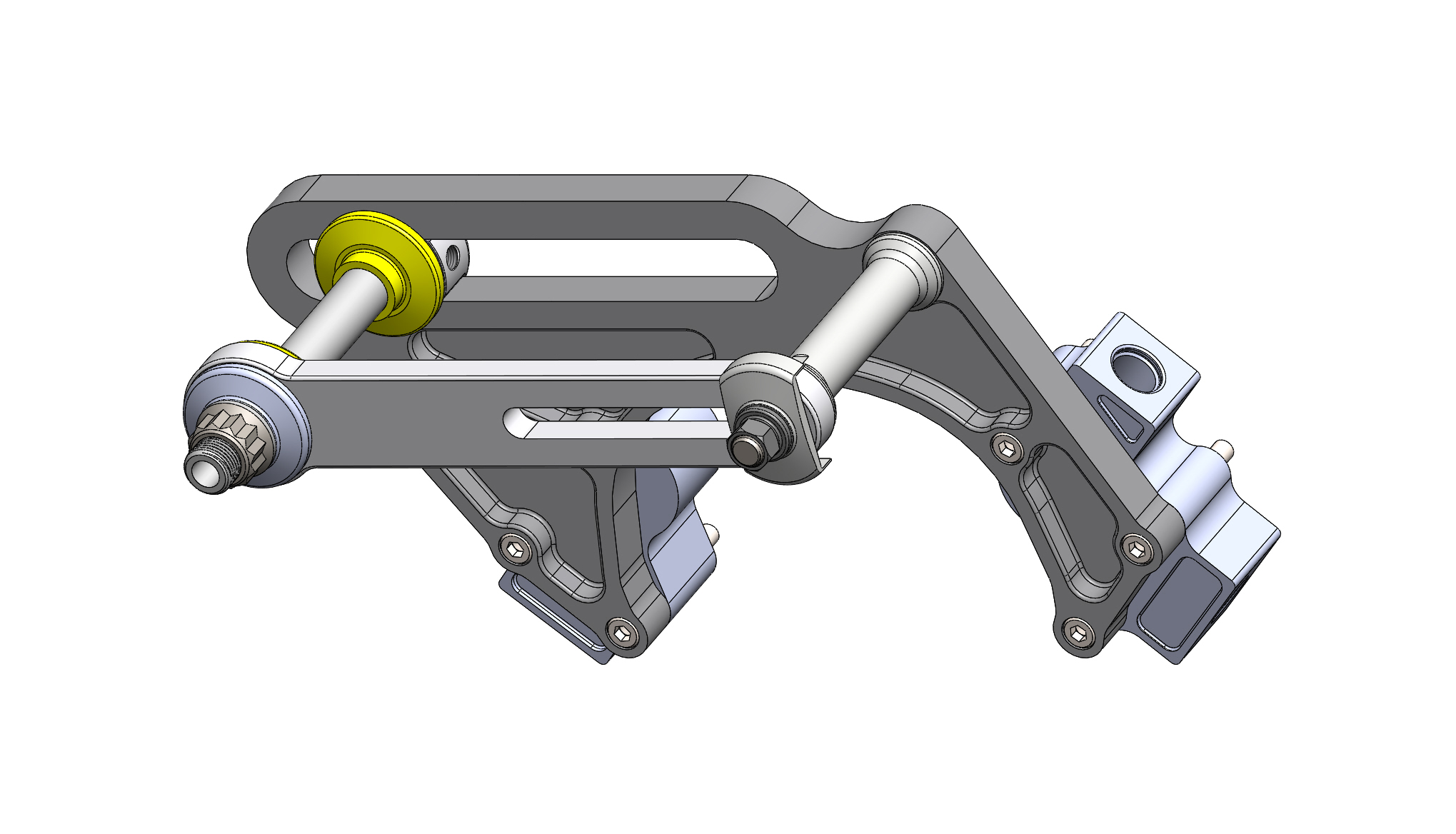

ENGINE BLOCK LS OUTBOARD SUPPORT YES PULLEY WIDTH 3.1" SLOT STANDARD 854 156206-0030 This kit fits a LS engine block, it has an outboard support set up for a pulley width of 3.1". The idler plate has a standard horizontal slot length.

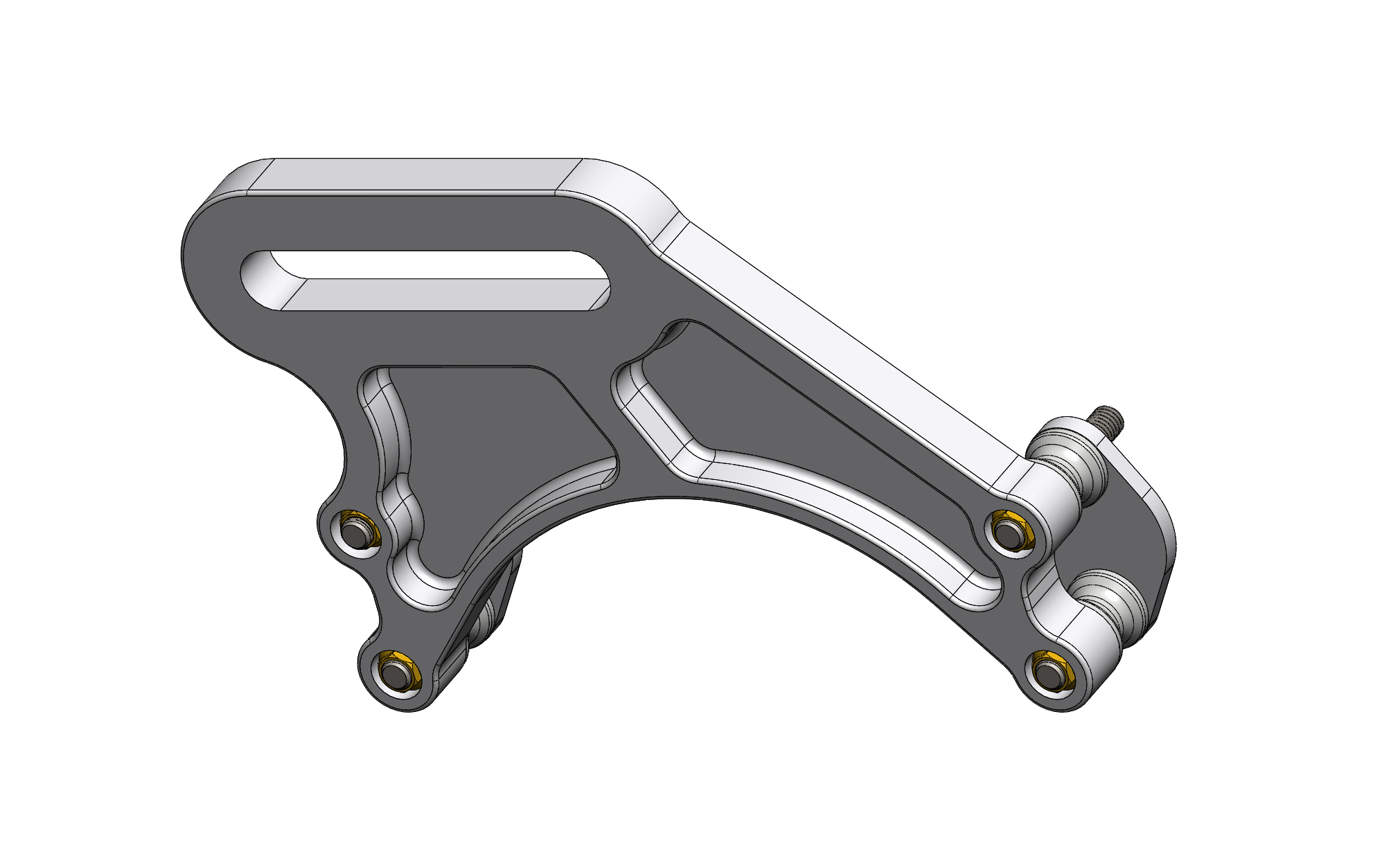

ENGINE BLOCK SBC OUTBOARD SUPPORT NO PULLEY WIDTH ANY SLOT STANDARD 174.31 156206-0006 This kit fits a SBC engine block, it does not have an outboard support. The idler plate has a standard horizontal slot length.

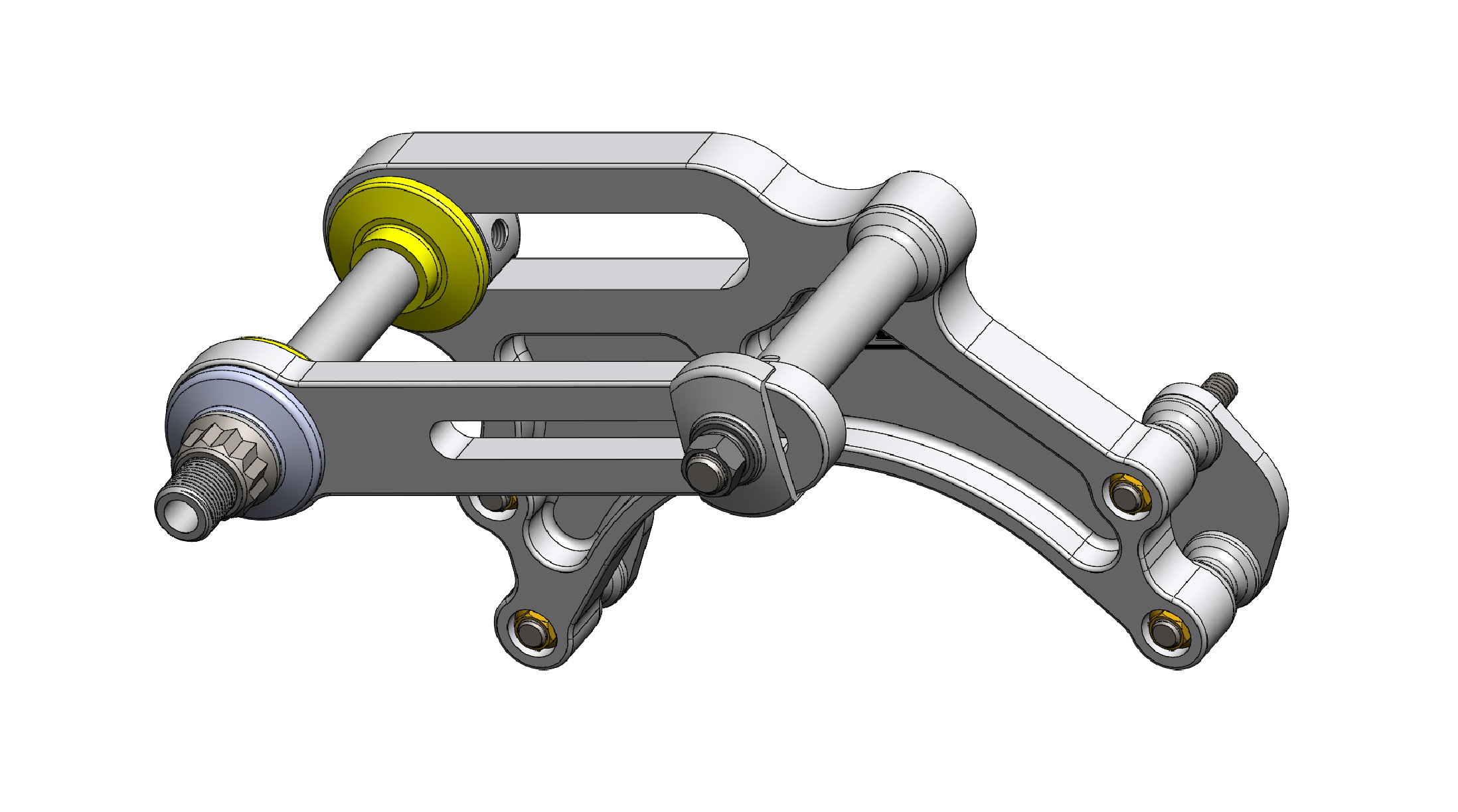

ENGINE BLOCK SBC OUTBOARD SUPPORT YES PULLEY WIDTH 3.1" SLOT STANDARD 451.45 156200-0006 This kit fits a SBC engine block, it has an outboard support set up for a pulley width of 3.1 inches. The idler plate has a standard horizontal slot length.

IDLER PLATE KITS

These kits include stands, spacers, idler plates, studs and hardware to mount your idler plate, idler pulley sold separately. RCD offers several different mounting, pulley width and outboard support combinations. All combinations are not shown call today for help configuring an assembly to meet your specifications.
0
156200-0006 SBC IDLER PLATE KIT W- Outboard Support BOM.PDF   Download
156200-0010 IDLER PLATE W-OUTBOARD SUPPORT BBC W-3.2 IDLER SPACING.PDF   Download
156200-0012 IDLER PLATE W-OUTBOARD SUPPORT BBC W-4.4 IDLER SPACING.PDF   Download
156200-0020 IDLER PLATE W-OUTBOARD SUPPORT 429 FORD W-3.2 IDLER SPACING BOM.PDF   Download
156200-0022 IDLER PLATE W-OUTBOARD SUPPORT 429 FORD W-4.4 IDLER SPACING.PDF   Download
156206-0003 426 IDLER PLATE KIT SHORT BOM.PDF   Download
156206-0004 426 IDLER PLATE KIT LONG BOM.PDF   Download
156206-0005 IDLER PLATE 426 LONG SLOT HORIZONTAL W-SUPPORT KIT.PDF   Download
156206-0006 SBC IDLER PLATE KIT BOM.PDF   Download
156206-0018 BBC IDLER PLATE KIT BOM.PDF   Download
156206-0020 426 TFX ANGLED IDLER ASSEMBLY 3.1 WIDE IDLER.PDF   Download
156206-0030 LS IDLER ASSY.PDF   Download
156206-0060 IDLER PLATE KIT LONG SLOT417-392 BOM.PDF   Download

Specifications
