Products / PICKUP HOLDER

SKU:

STYLE

ENCLOSED JESEL LEAHY MSD

SIZE

STD PLUS 10 SHORT

SIDE

LEFT N/A RIGHT

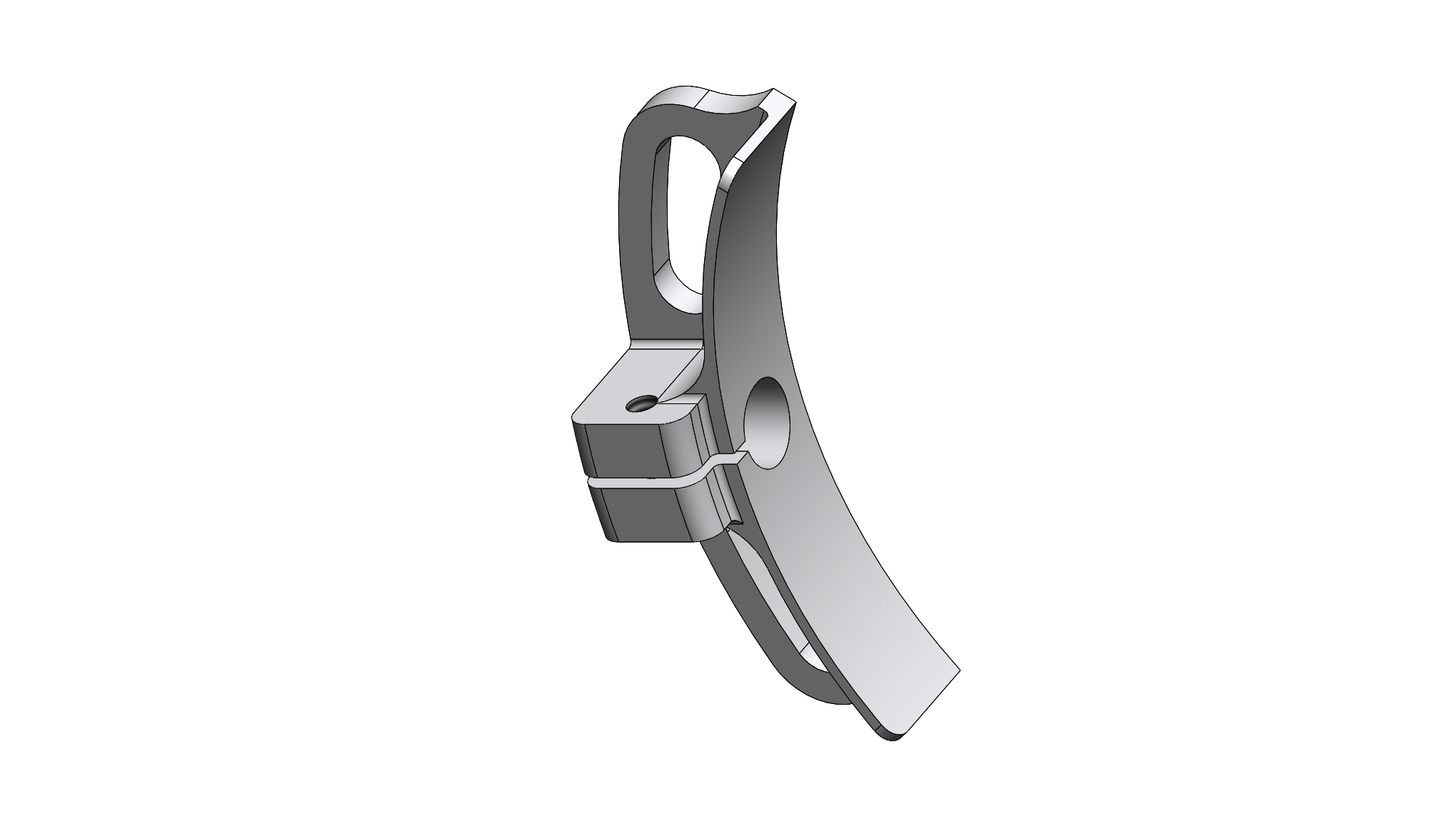

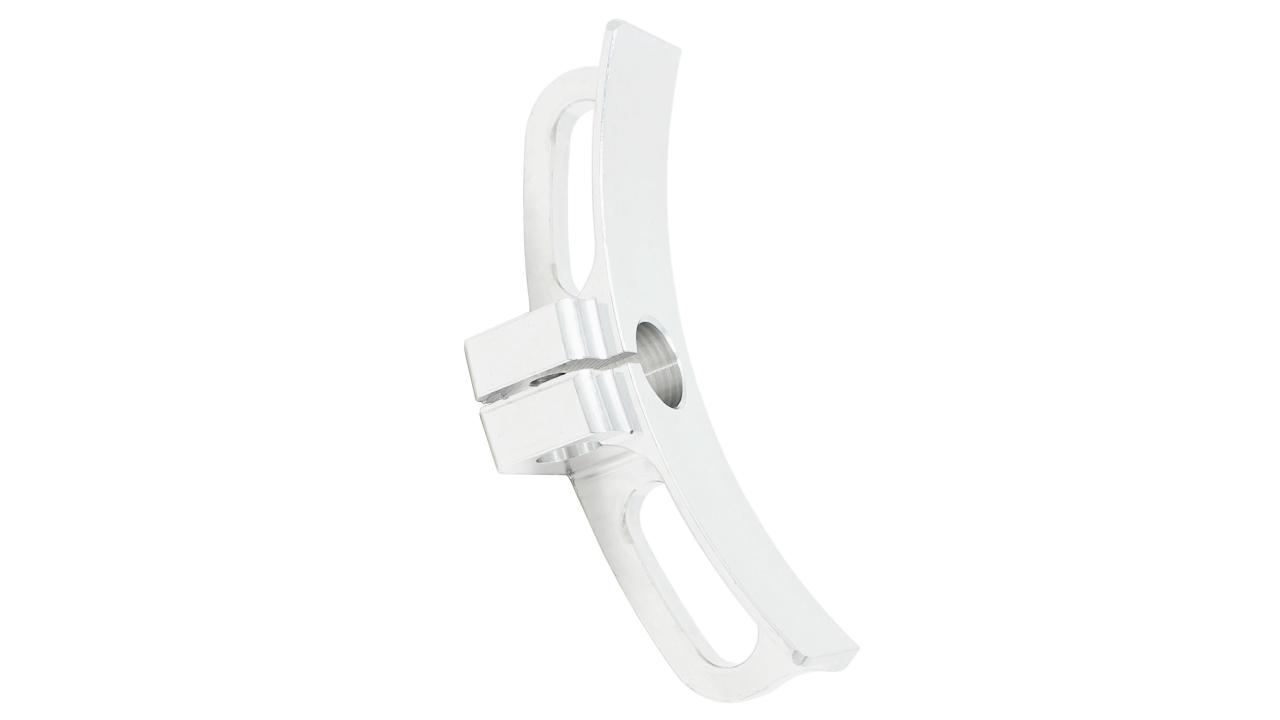

STYLE ENCLOSED SIZE STD SIDE N/A 38.23 202109-09 This pickup holder has a .380" diameter hole for a Leahy pickup and is for the enclosed crank trigger assembly.

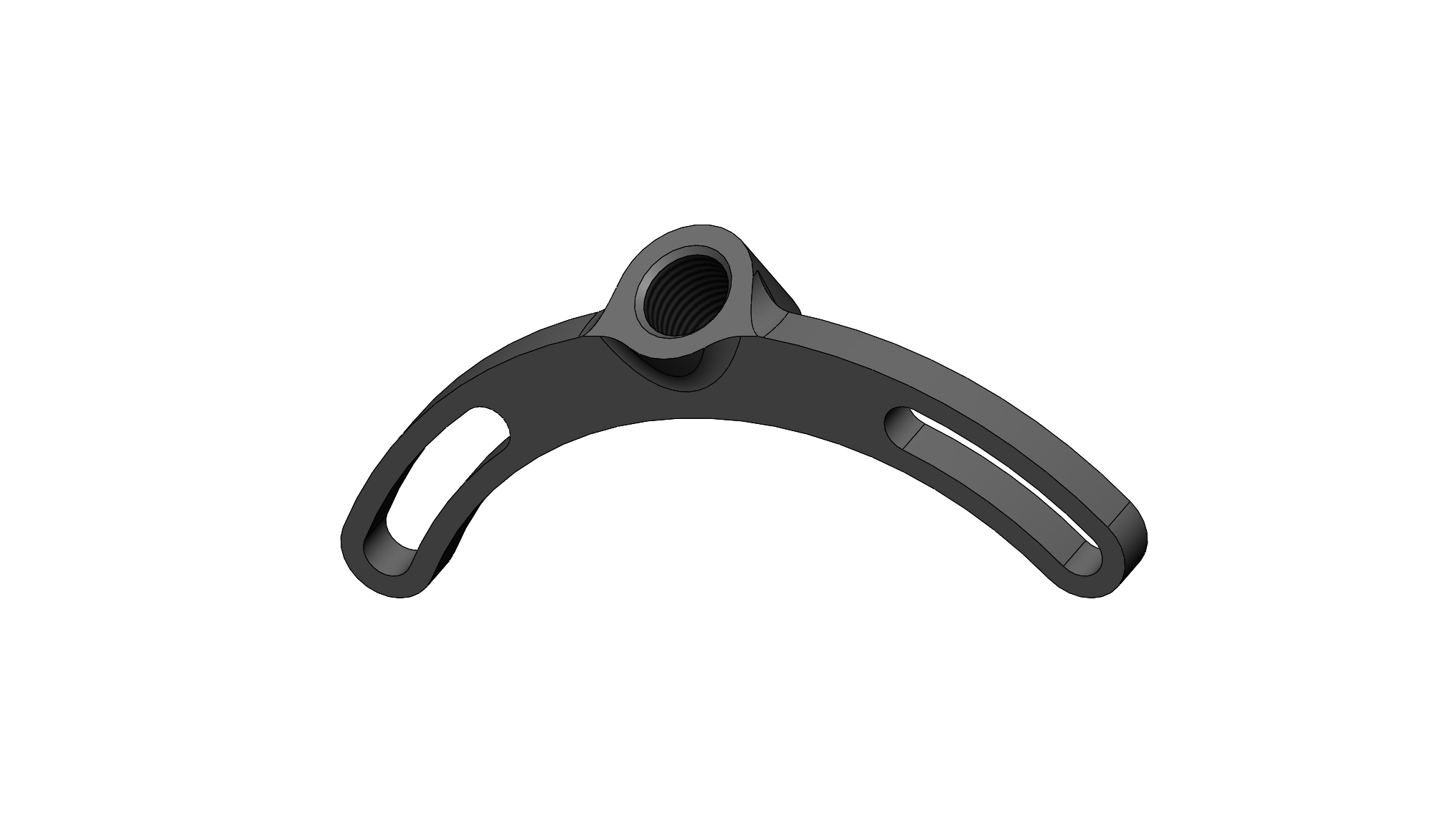

STYLE JESEL SIZE STD SIDE N/A 93.3 250400-01 This pickup holder has a 1/2-20 threaded hole and is for the Jesel cam sync assembly.

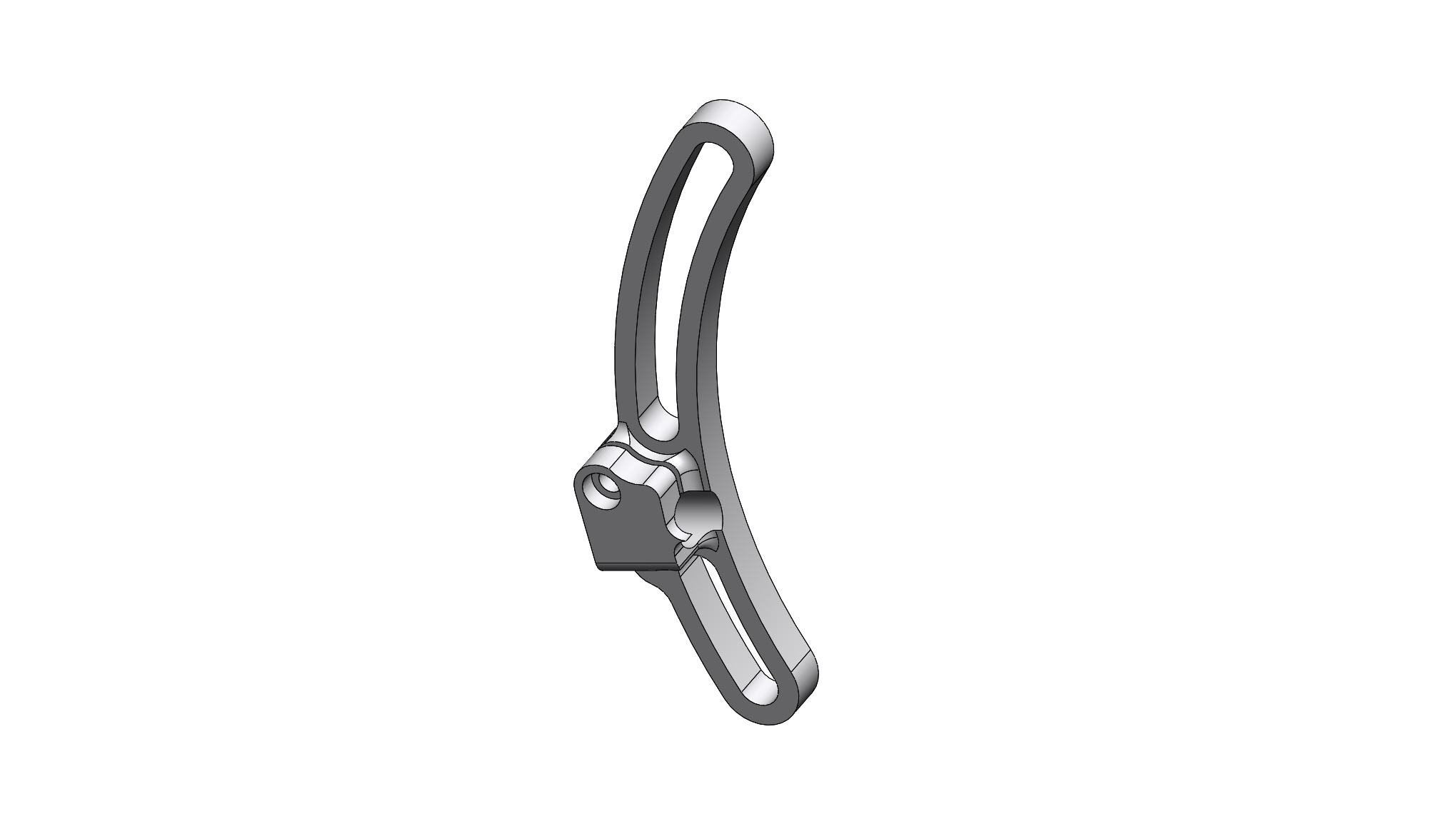

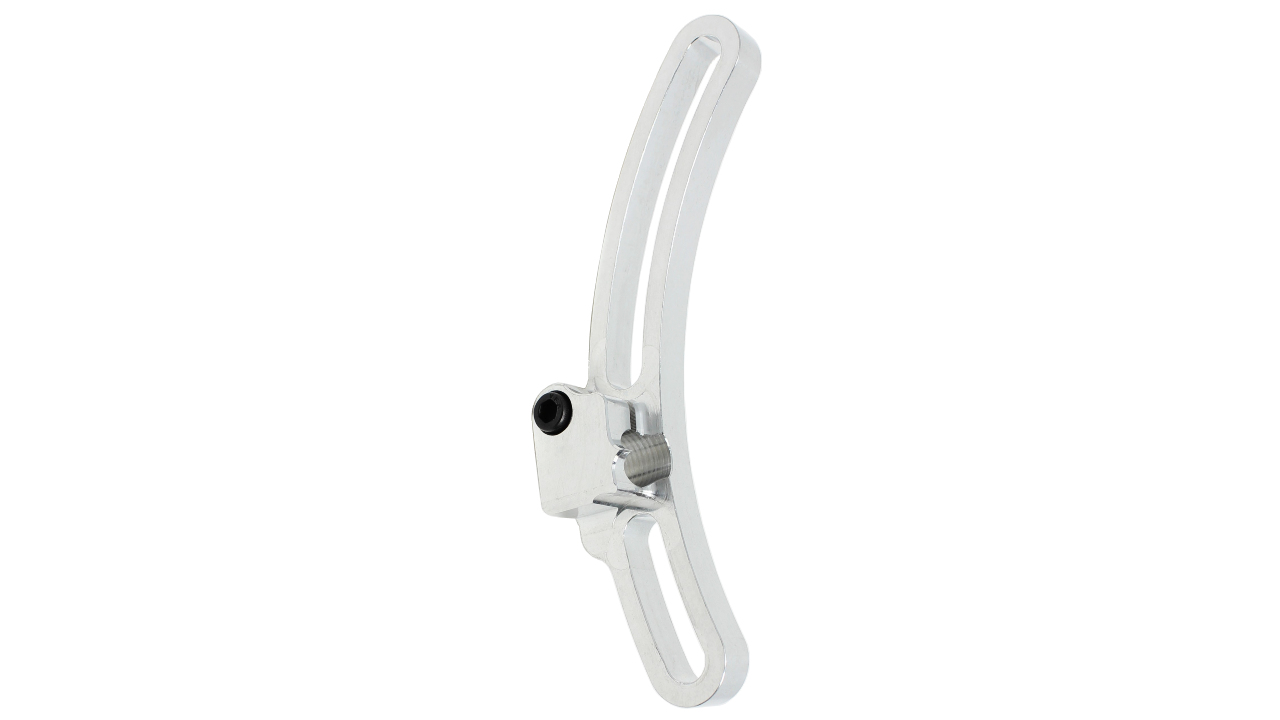

STYLE LEAHY SIZE PLUS 10 SIDE N/A 59.6 202015-06 This plus 10 degree pickup holder has a .380" diameter hole for a Leahy pickup.

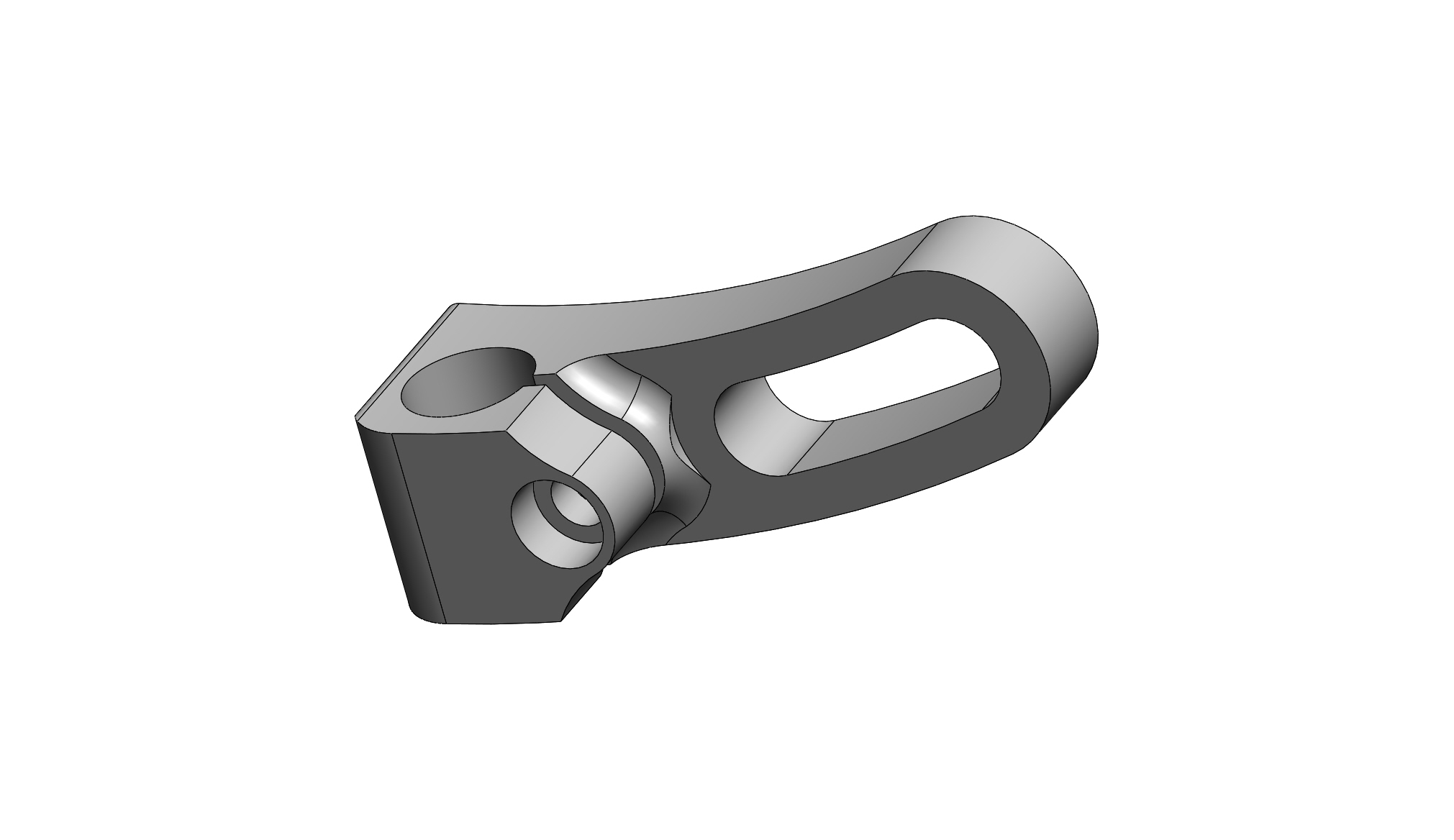

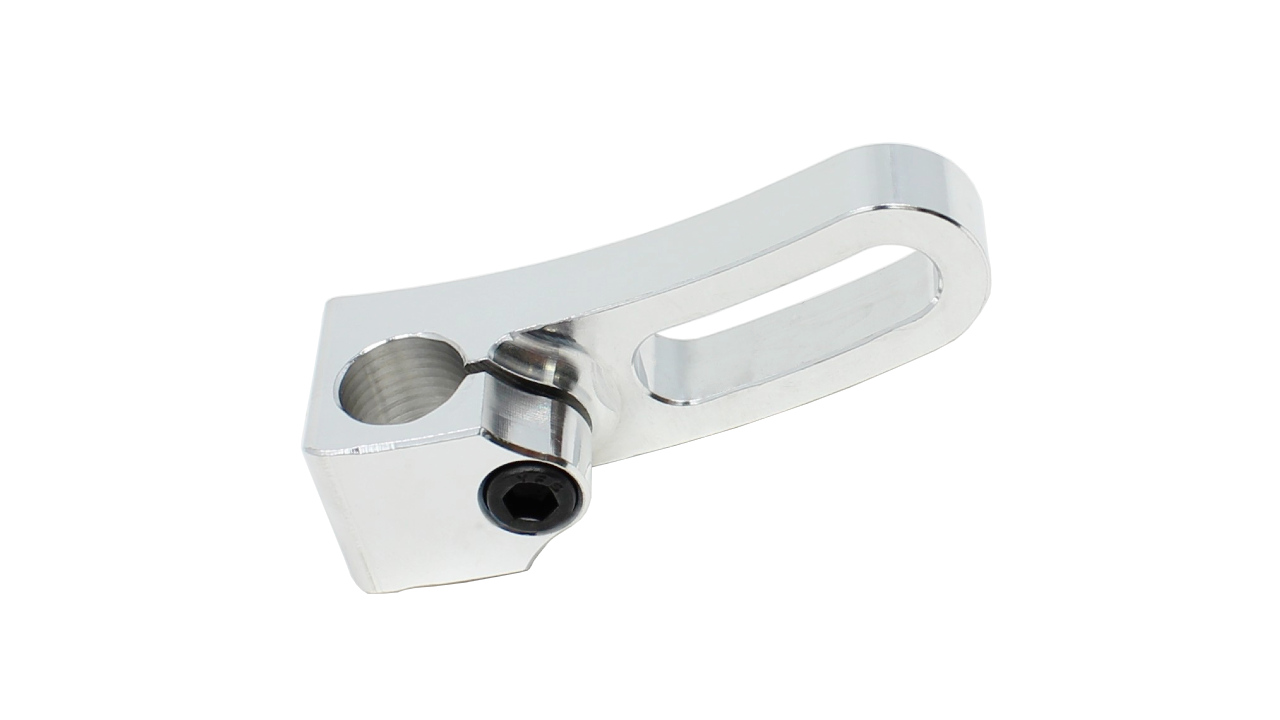

STYLE LEAHY SIZE SHORT SIDE LEFT 42.74 202015-12 This short pickup holder has a .380" diameter hole for a Leahy pickup and is for the left hand side.

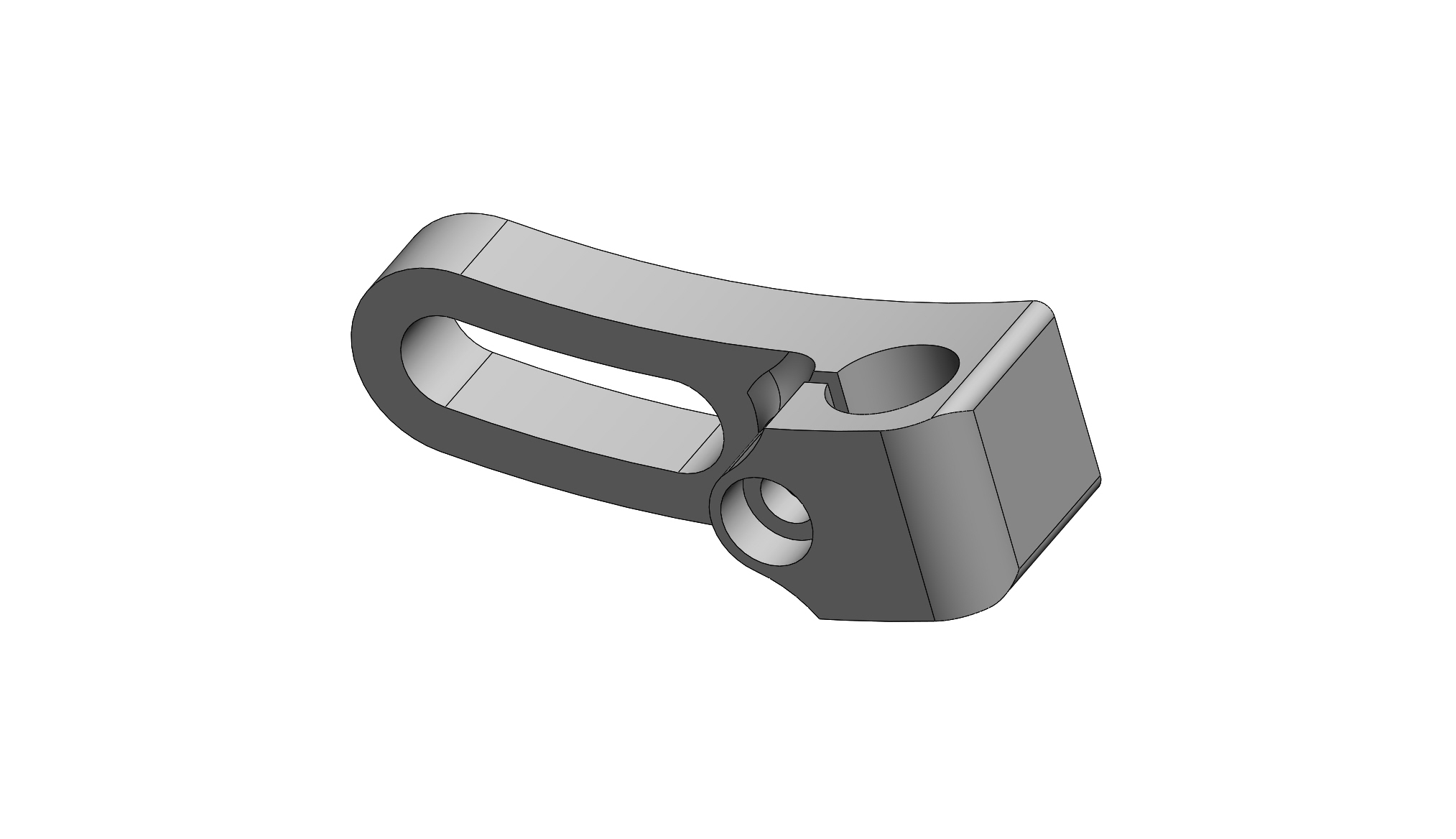

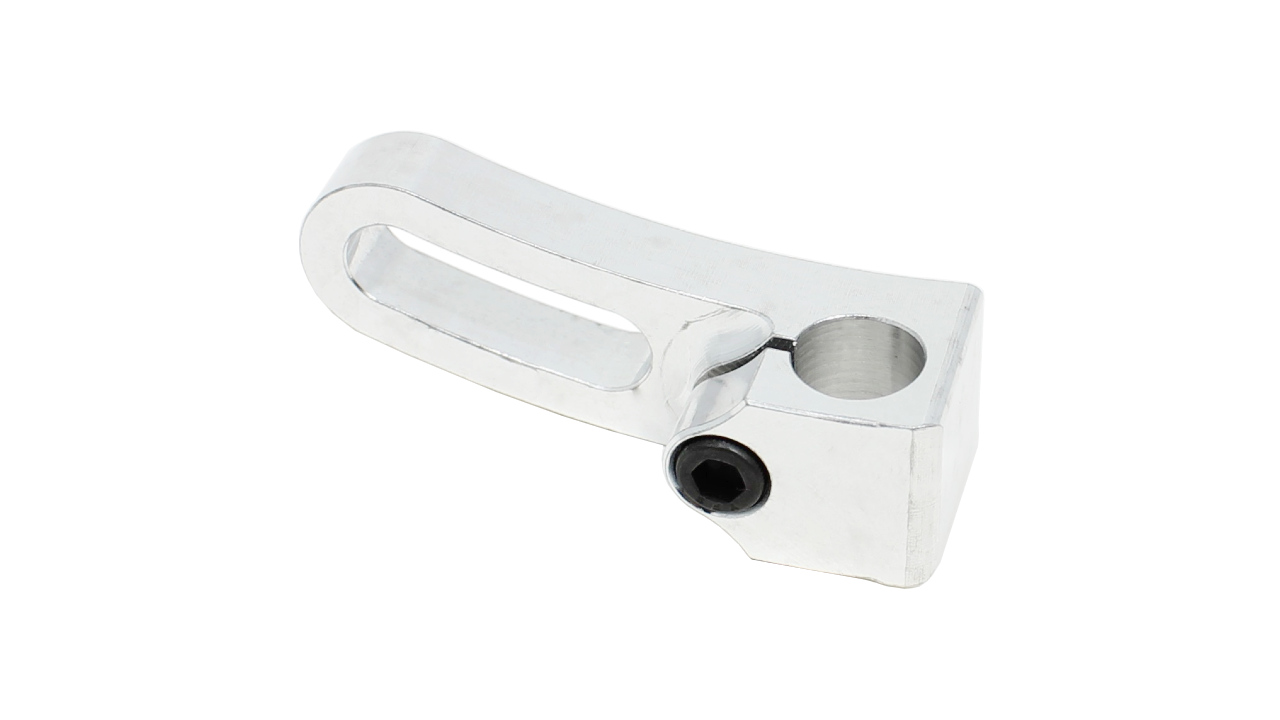

STYLE LEAHY SIZE SHORT SIDE RIGHT 42.74 202015-14 This short pickup holder has a .380" diameter hole for a Leahy pickup and is for the right hand side.

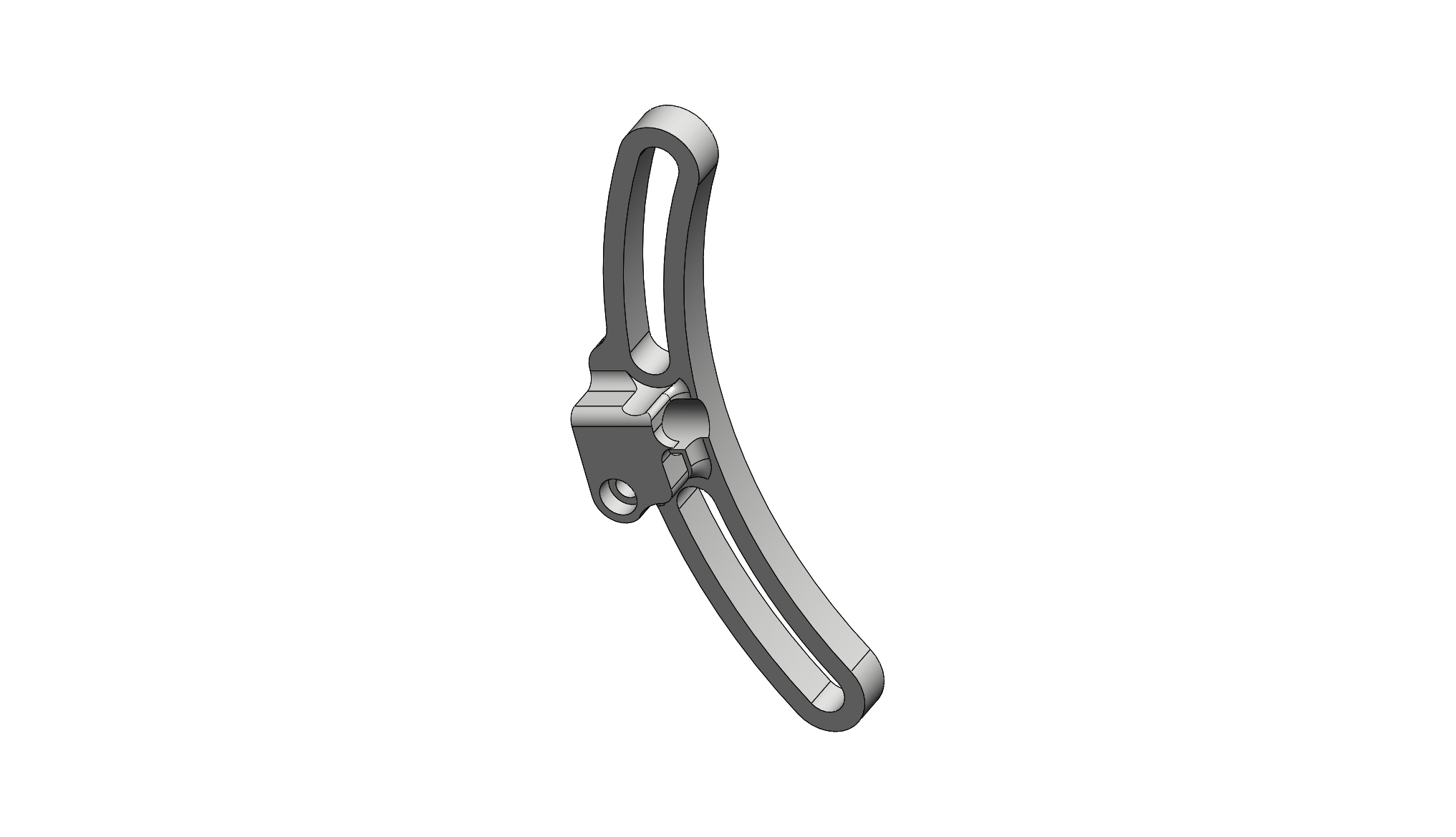

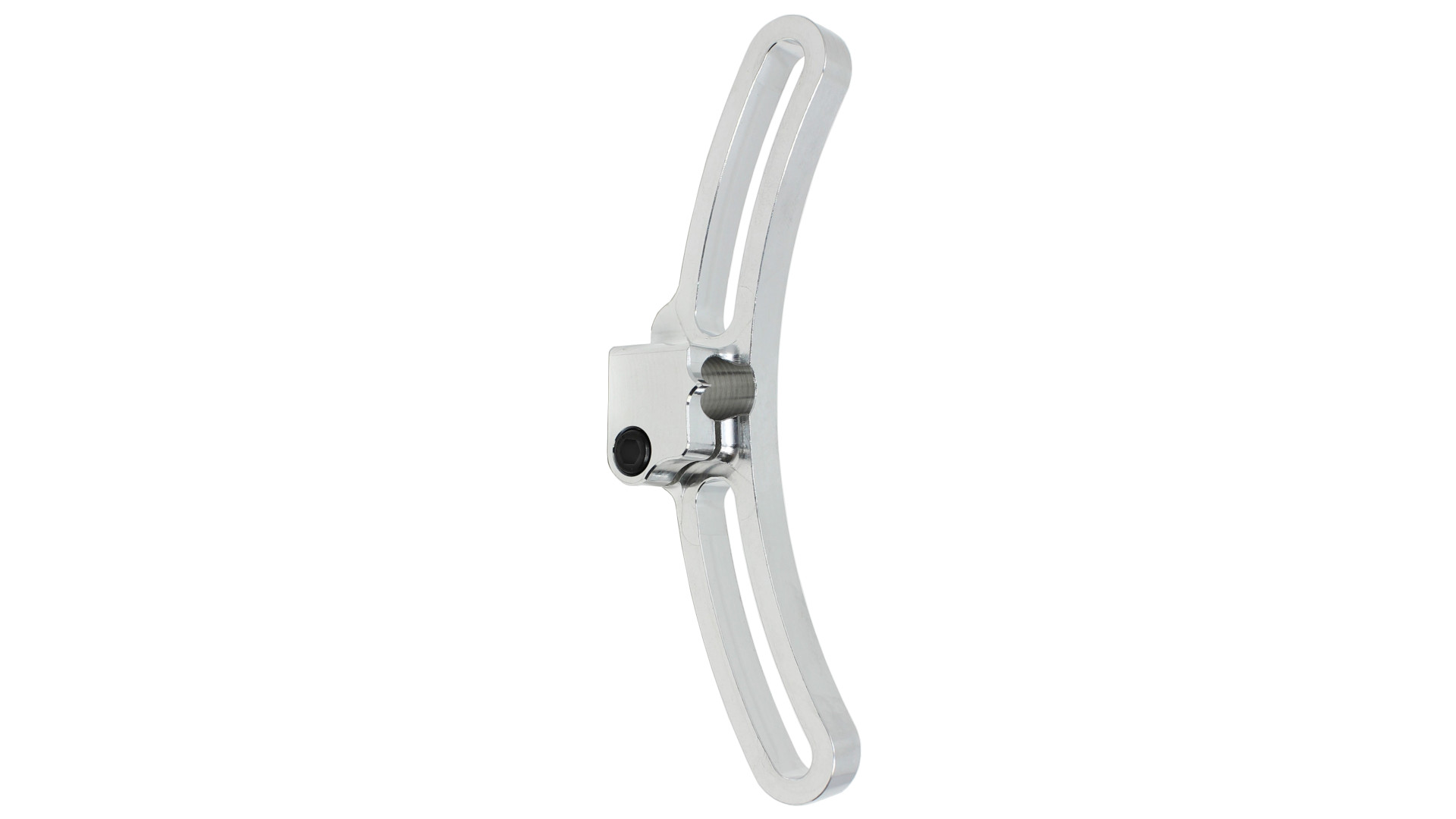

STYLE LEAHY SIZE STD SIDE N/A 59.6 202015-05 This standard pickup holder has a .380" diameter hole for a Leahy pickup.

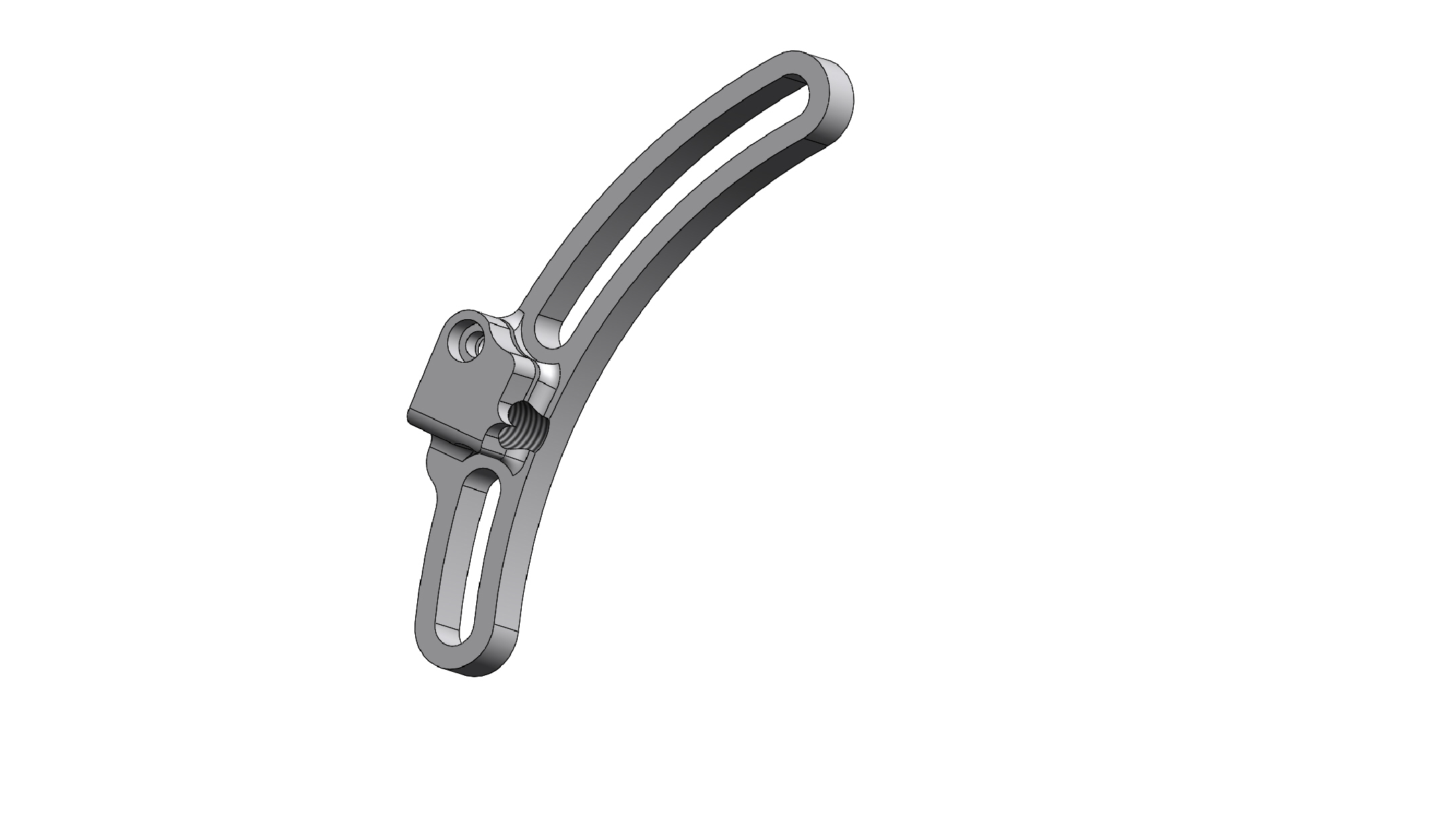

STYLE MSD SIZE PLUS 10 SIDE N/A 61.86 202015-04 This plus 10 degree pickup holder has a 3/8-24 threaded hole for a MSD pickup.

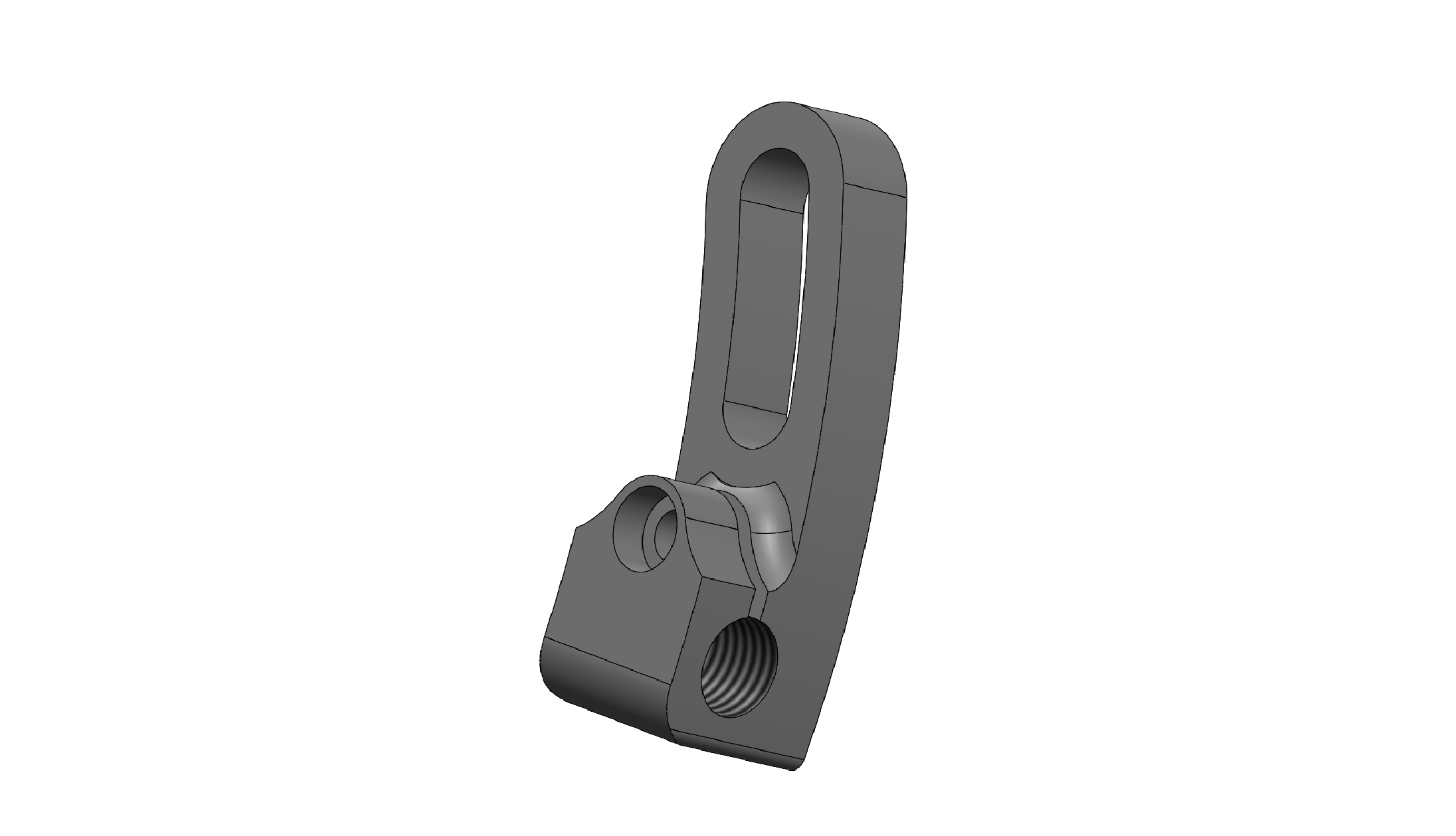

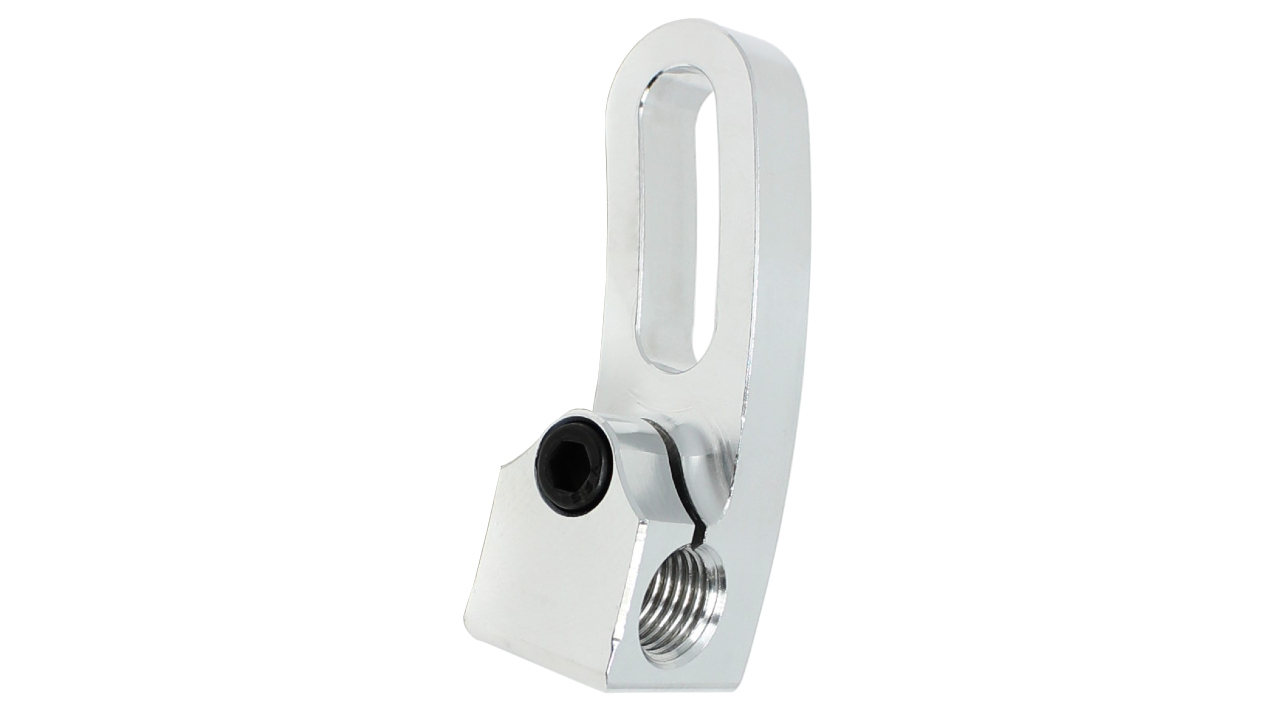

STYLE MSD SIZE SHORT SIDE LEFT 44.98 202015-08 This short pickup holder has a 3/8-24 threaded hole for a MSD pickup and is for the left hand side.

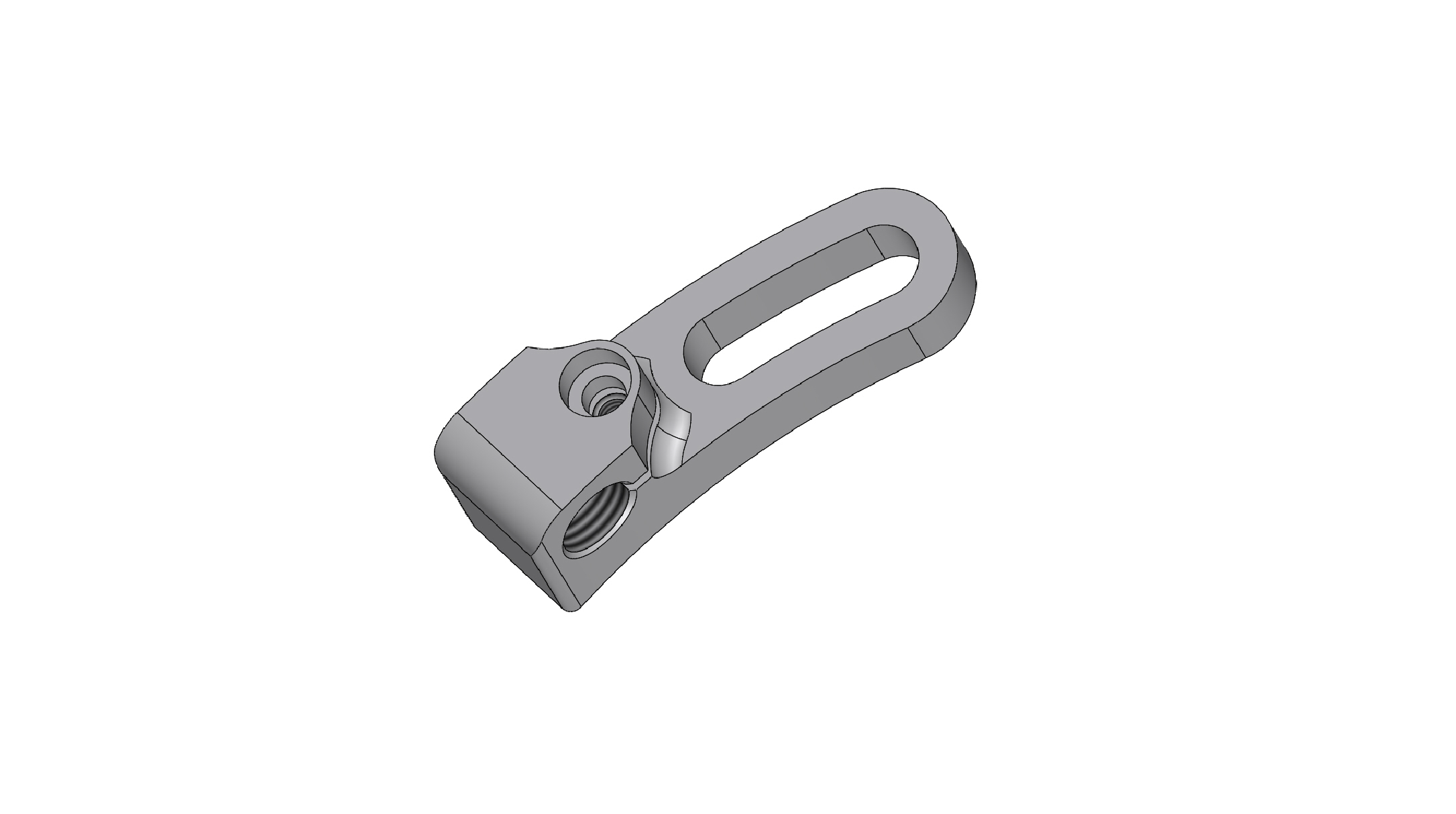

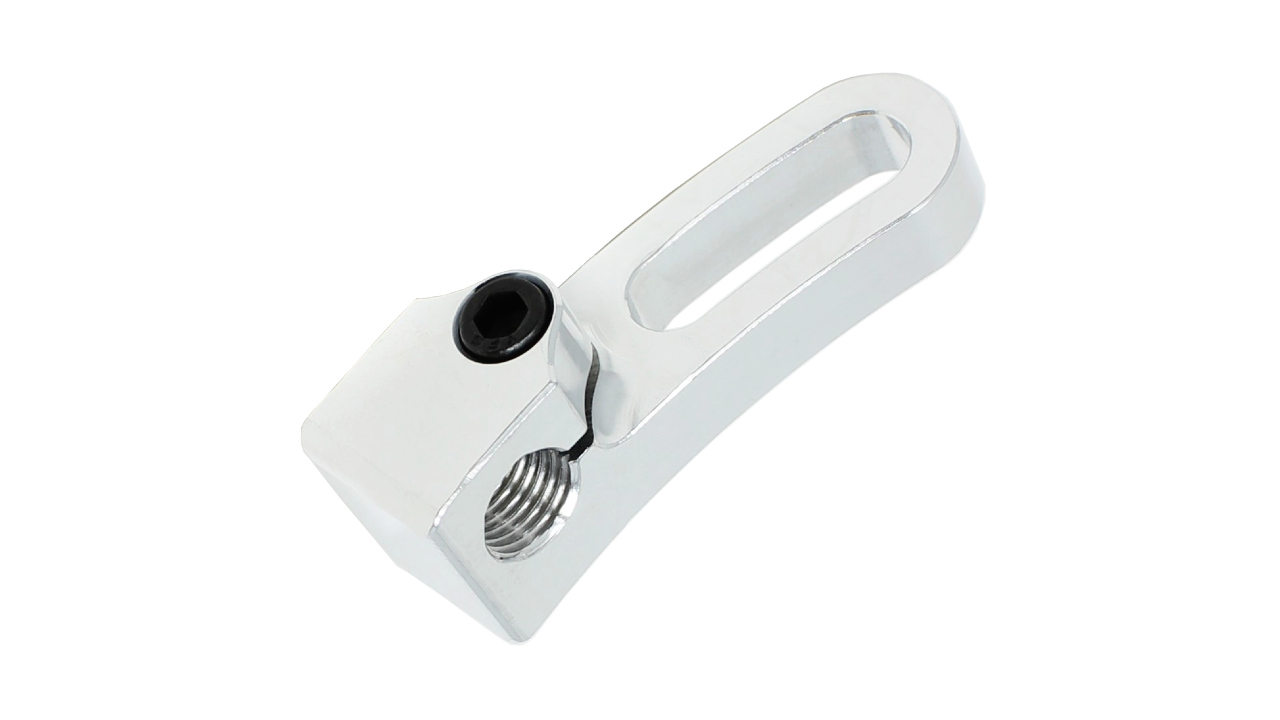

STYLE MSD SIZE SHORT SIDE RIGHT 44.98 202015-10 This short pickup holder has a 3/8-24 threaded hole for a MSD pickup and is for the right hand side.

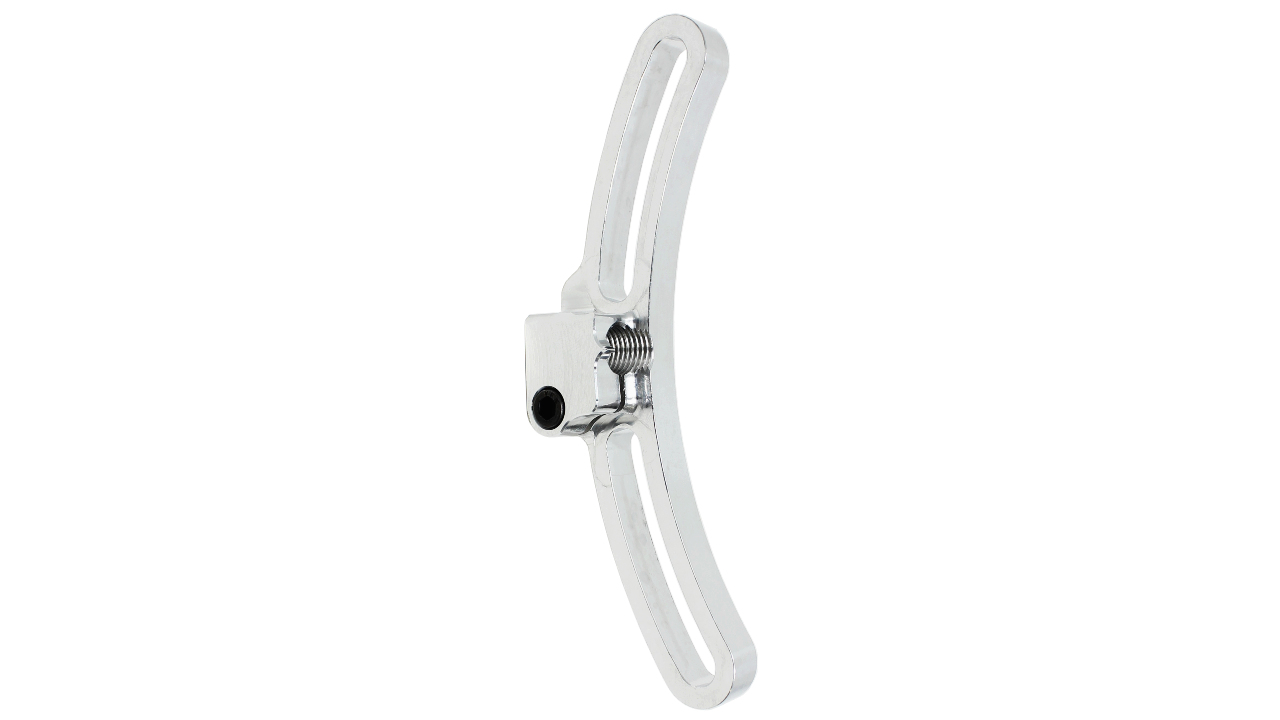

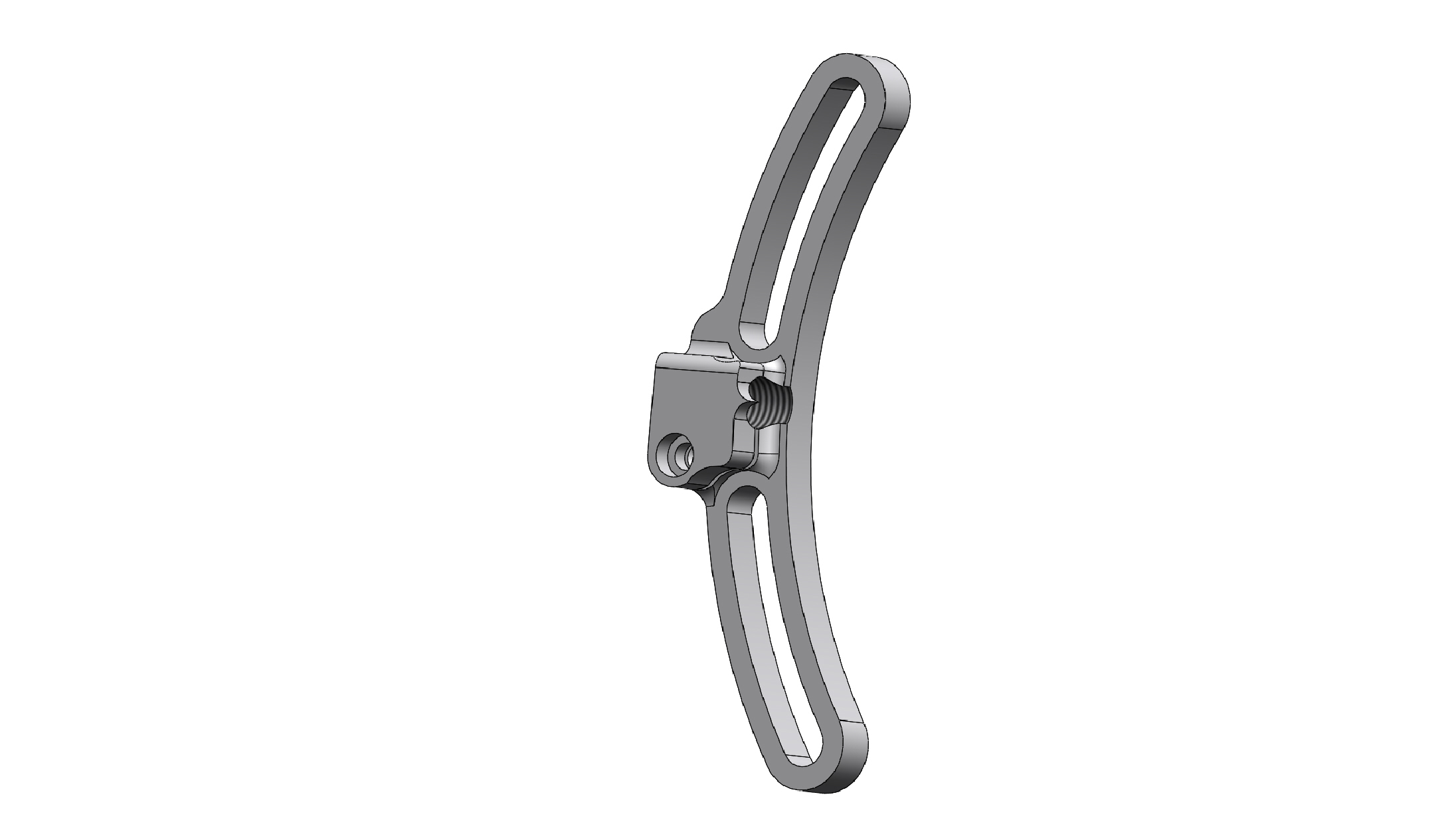

STYLE MSD SIZE STD SIDE N/A 61.86 202015-03 This standard pickup holder has a 3/8-24 threaded hole for a MSD pickup.

PICKUP HOLDER

All RCD pickup holders are manufactured from aluminum plate and provided with a tumble finish. These pickup holders are designed to slide in the crank trigger bracket slots over 1/4-20 bolt holes to provide for adjustment. Pickup ends are secured by a 8-32 bolt which clamps the split pickup hole.
