SKU:

MOTOR END STYLE

AIRCRAFT BASE/BRACKET RCD

LENGTH

STD EXTENDED

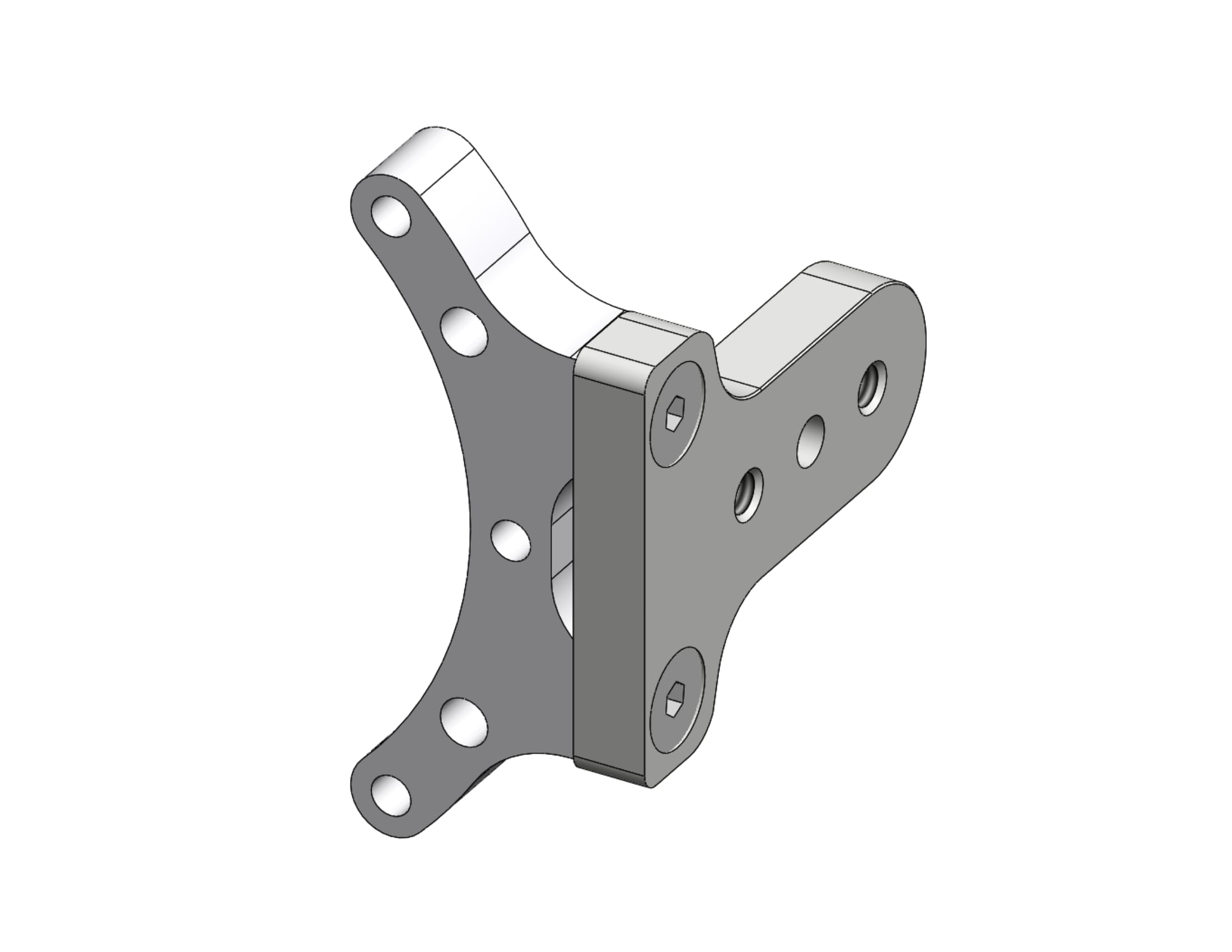

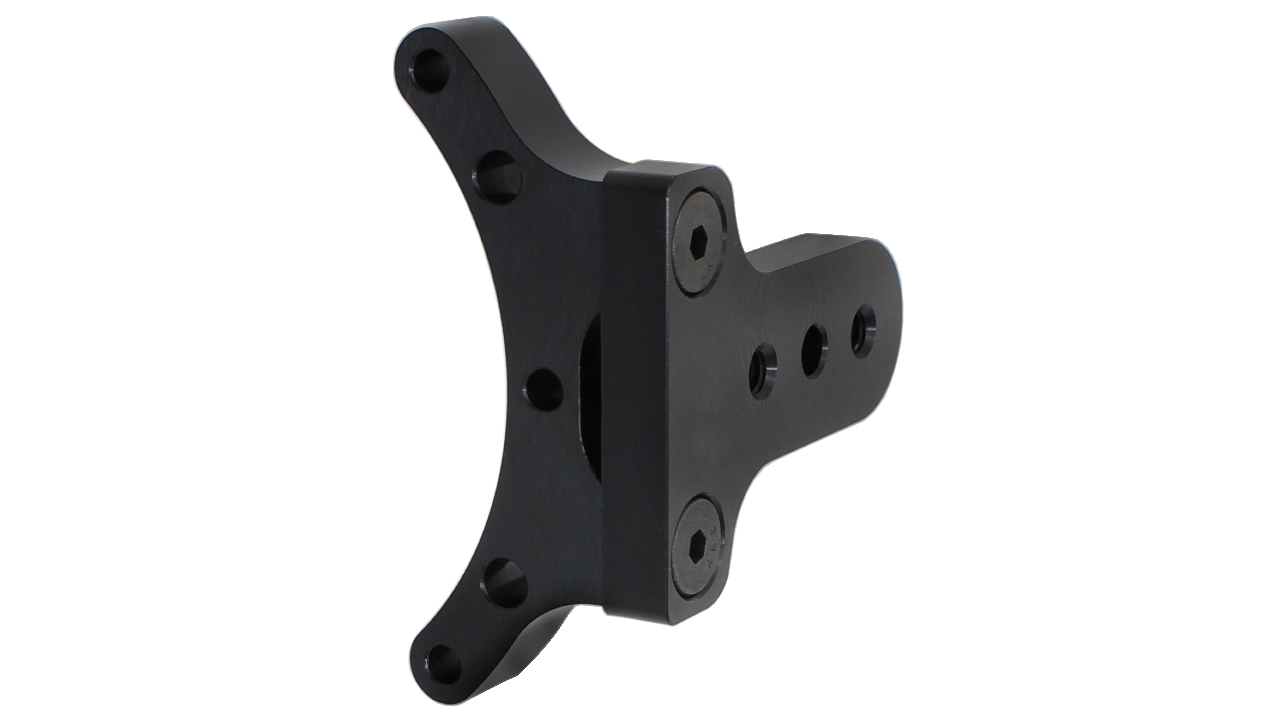

MOTOR END STYLE AIRCRAFT BASE/BRACKET LENGTH STD 51.06 102510-0020 This combo is for the aircraft style starters which require and additional part to attach the plug bracket.

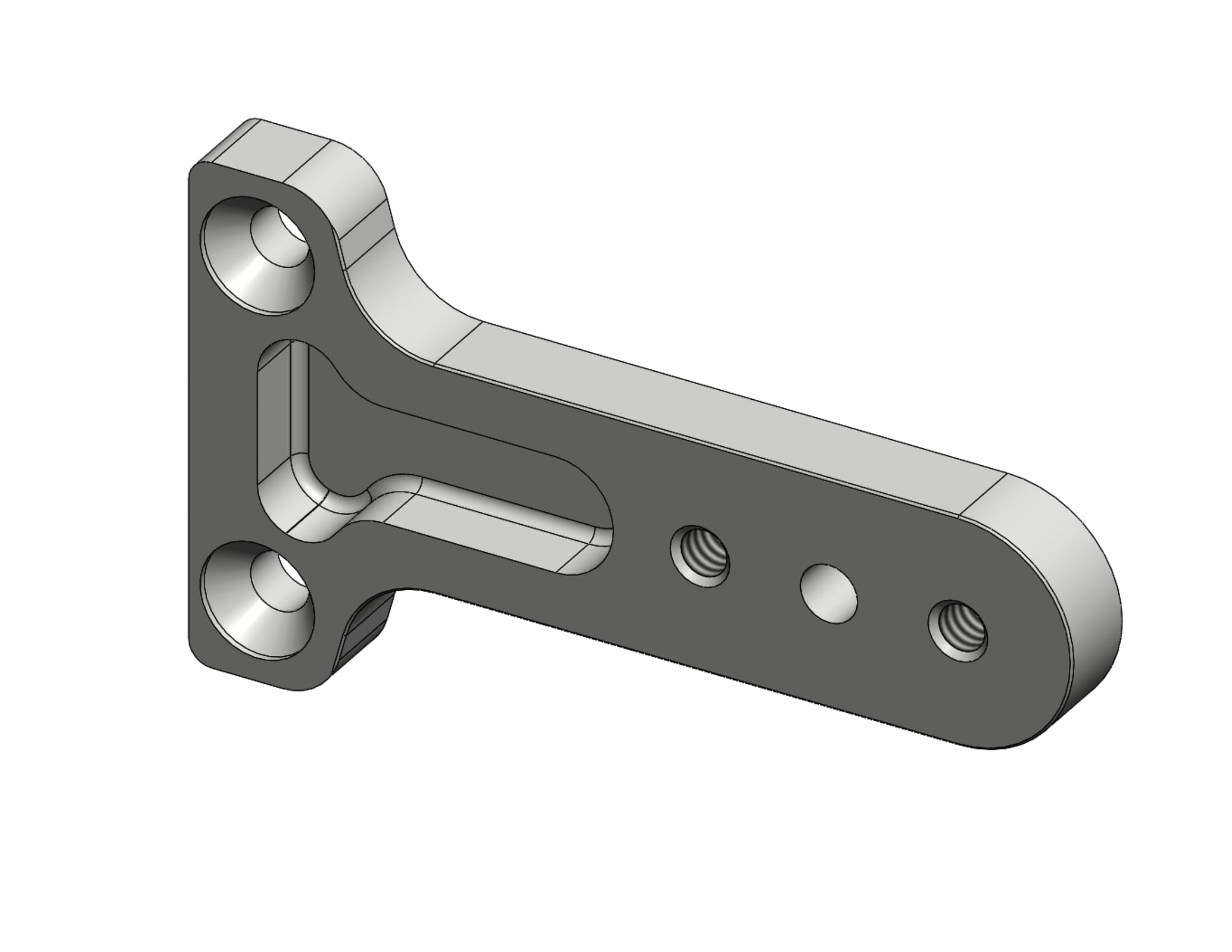

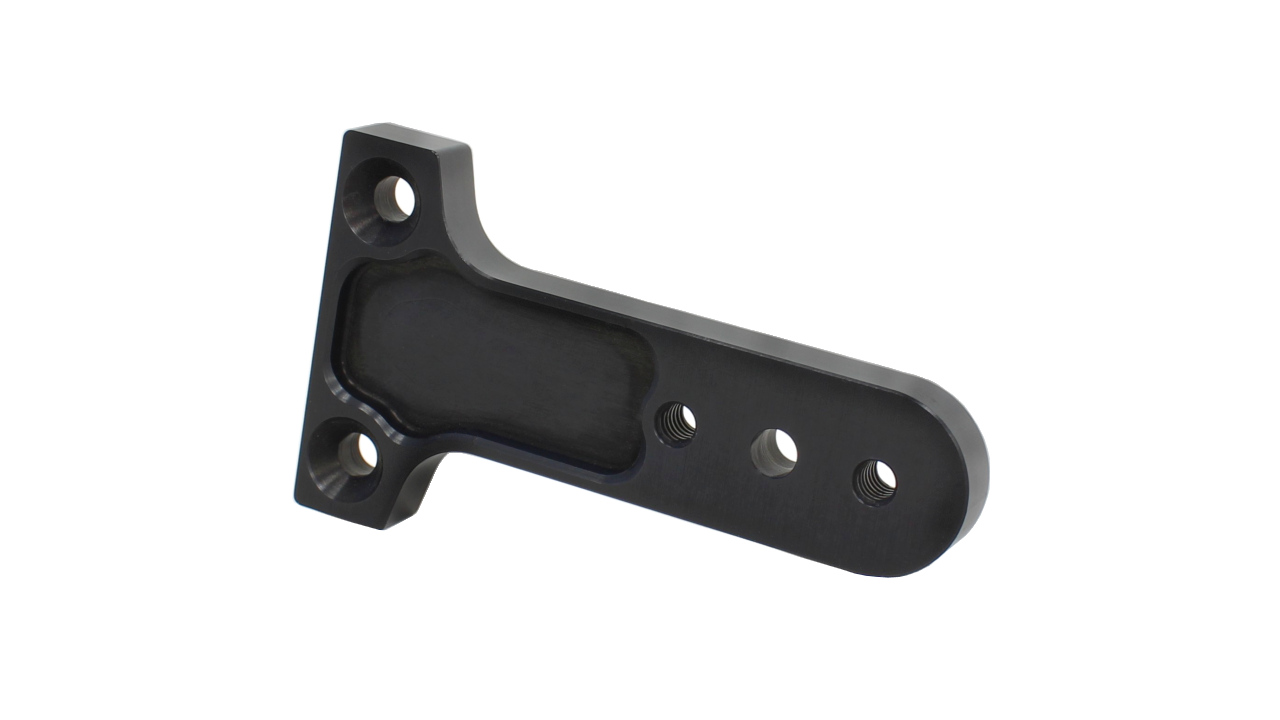

MOTOR END STYLE RCD LENGTH EXTENDED 21.65 102510-13 This plug bracket is extended.

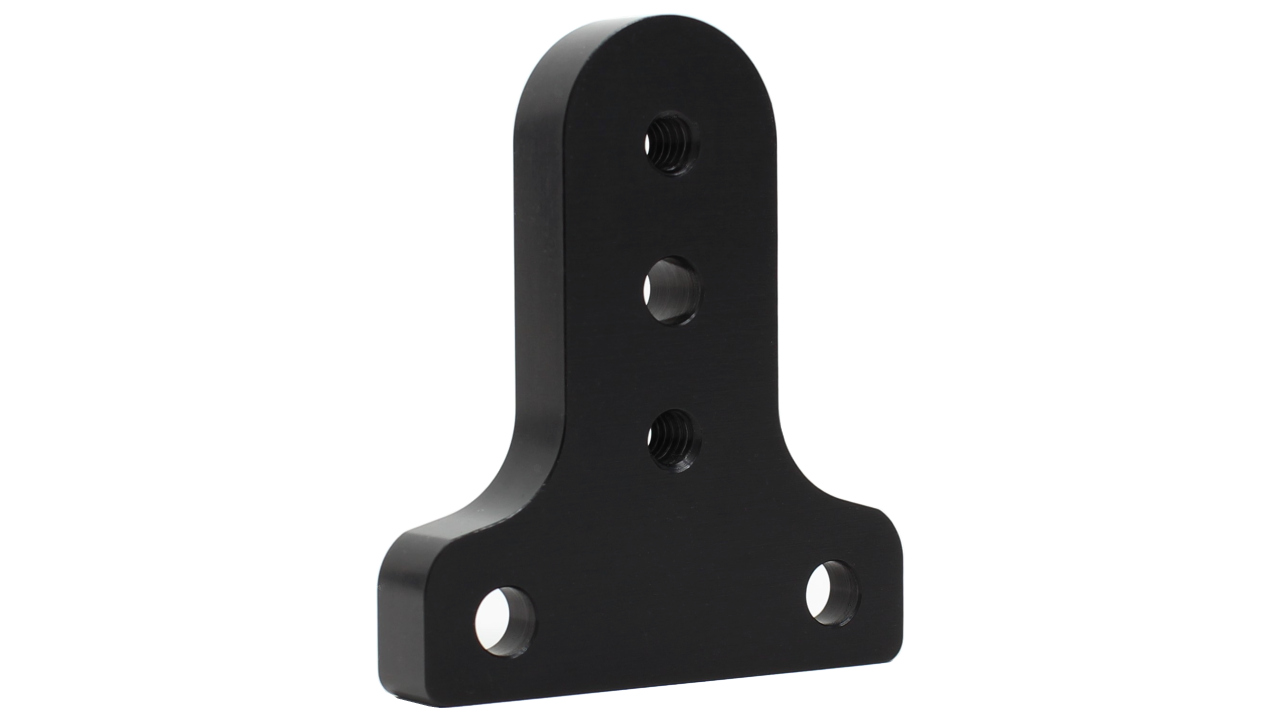

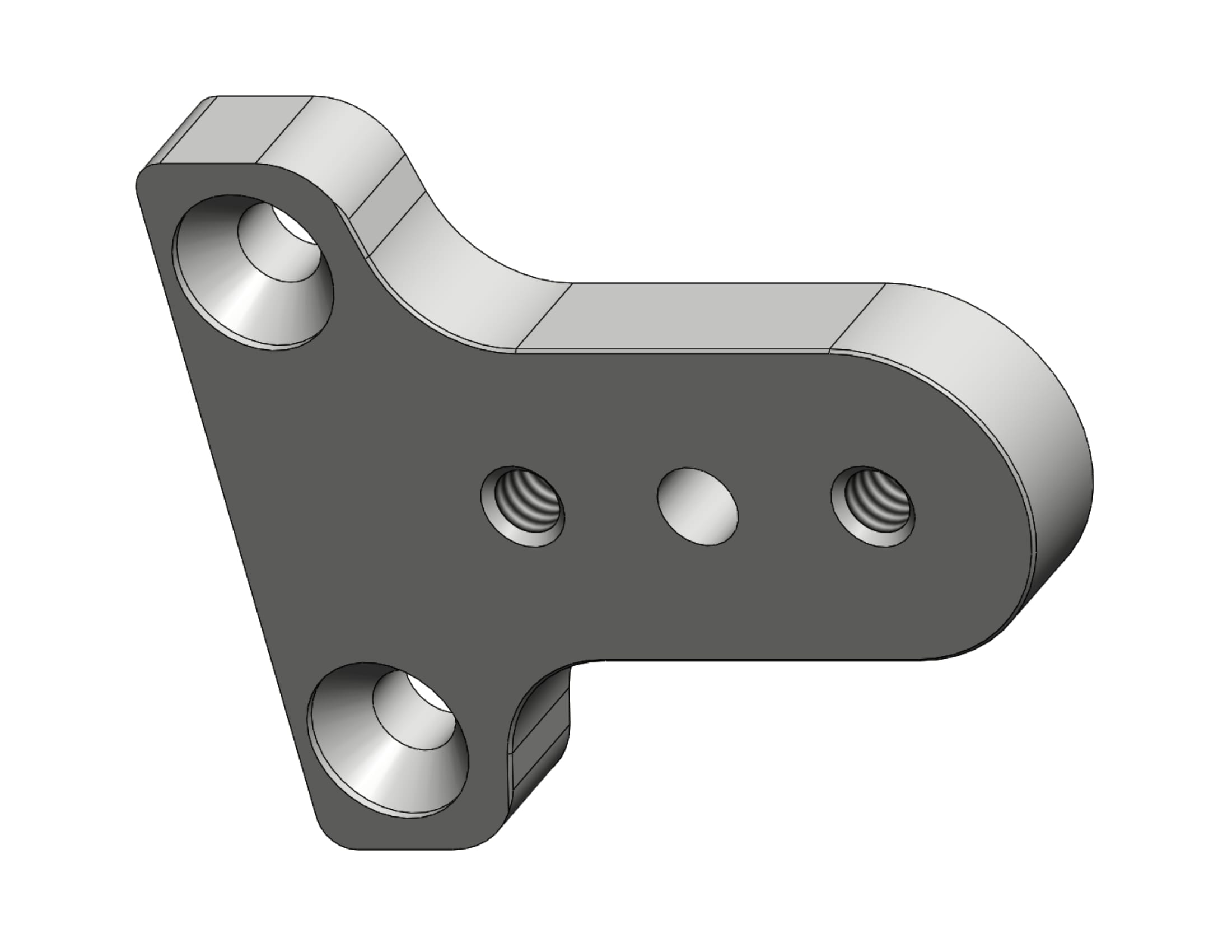

MOTOR END STYLE RCD LENGTH STD 21.65 102510-11 This plug bracket is standard length.

PLUG BRACKETS

BACK

These brackets attach to the motor end adaptor and hold the plug with two ¼-20 button head bolts. They are machined from 3/8” thick 2024 aluminum plate grained on both sides. There are two different lengths depending on your application.

102510-0020 STARTER PLUG MOUNTING BRACKET DWG.PDF

Download
